FULL DESCRIPTION of Item 103332

in Xray Fluorescence Spectrometers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 103332

Offered 1 Offered at Best Price


RIGAKU X-RAY FLUORESENCE SPECTROMETER

X-Ray Fluoresence Spectrometer
Model: TXRF 300S

RIGAKU X-RAY FLUORESENCE SPECTROMETER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Rigaku
Model TXRF 300S
Wafer Size Range
  Minimum 150 mm
  Maximum 300 mm
Cassette to Cassette YES
Xray Source Specifications

X Ray Tube
  Water cooled diffraction x-ray tube
  Target:  Au
  Electron gun:  W filament
  Focusing size: .4 x 12 mm on the target
  Maximum load:  1.2kW

Accessories

Oxford Detector:
Model:  7043
Det. area 80 mm2
Window Be
Resolution at 5.9 KeV is 175 eV
Bias -500V

Other Information

System Includes:
Ebara Dry Pump: Model A10S

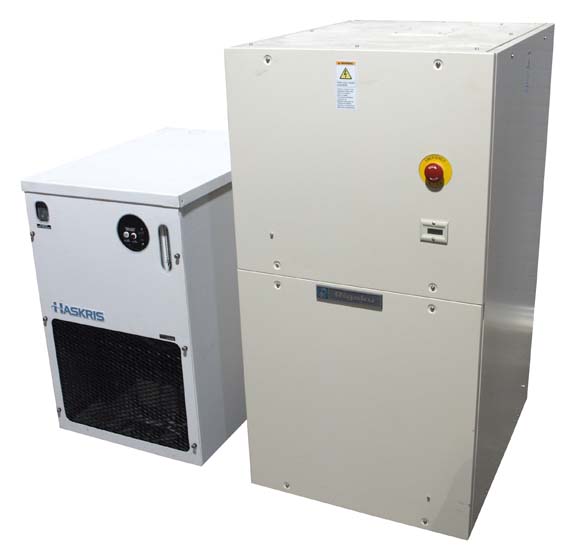

Haskris Chiller: Model RW100F1
Oxford Instruments: Model 7043
UBS Industries: Model LLC-203 Liquid Level controller

Extended Description  Details at specifications.pdf
Year of Manufacture 2001
Power Requirements 208 V     50/60 Hz     3 Phase
Exterior Dimensions
  Width 67.000  in  (170.2 cm)
  Depth 48.000  in  (121.9 cm)
  Height 62.000  in  (157.5 cm)
Weight 2,092  lb  (949 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions




Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
