FULL DESCRIPTION of Item 114218

in Upright Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 114218

Offered 1 Offered at Best Price

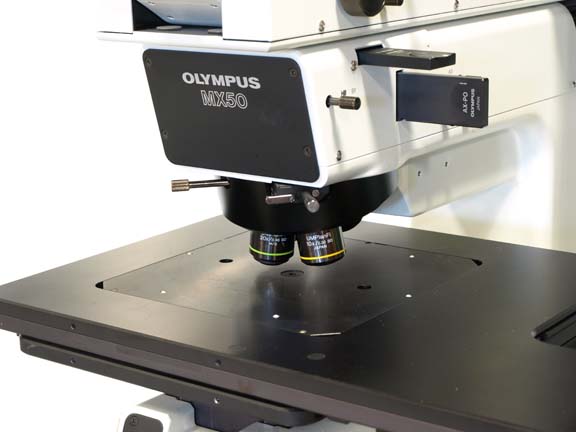

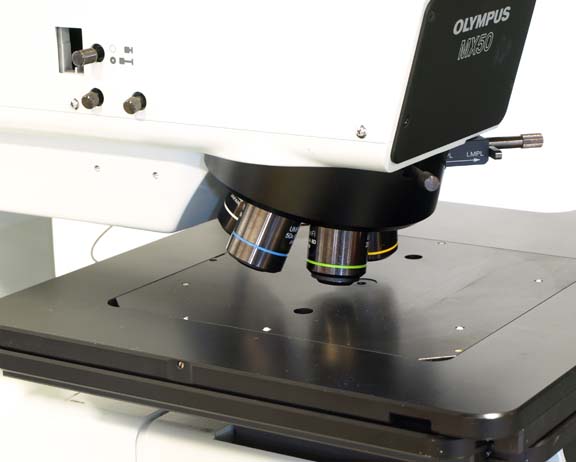

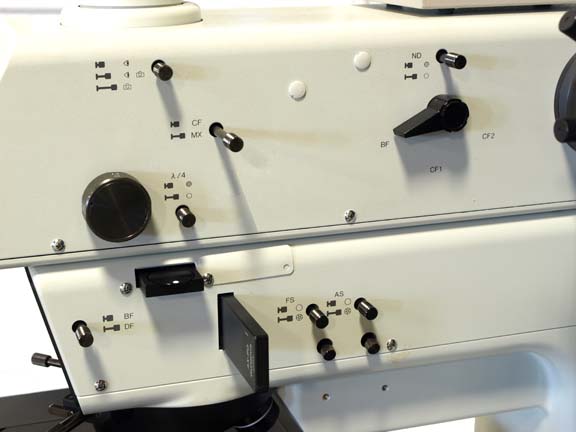

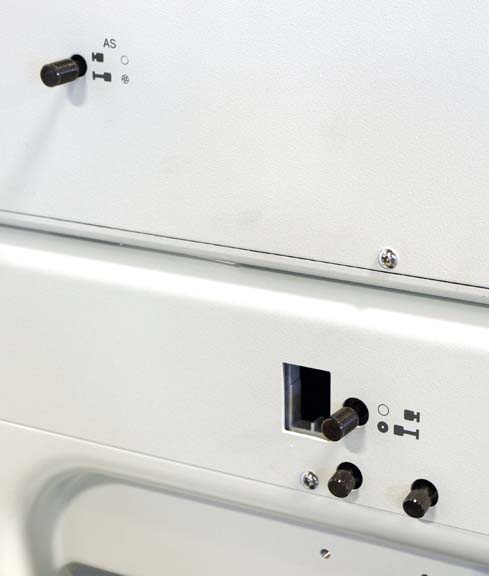

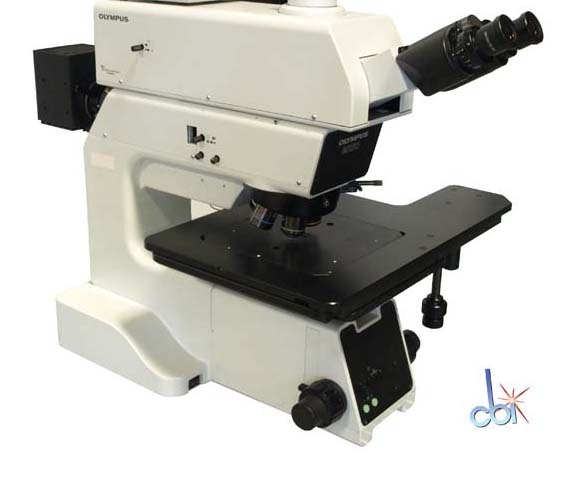

OLYMPUS MICROSCOPE, REFLECTED LIGHT - BRIGHTFIELD, DARKFIELD/DIC

Reflected Light Real-Time Confocal Microscope

OLYMPUS MICROSCOPE, REFLECTED LIGHT - BRIGHTFIELD, DARKFIELD/DIC
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Olympus
Model MX50-CF
Microscope Configuration Brightfield, Darkfield & DIC
Illumination Type Hg Reflected Light
Binocular Angle Variable

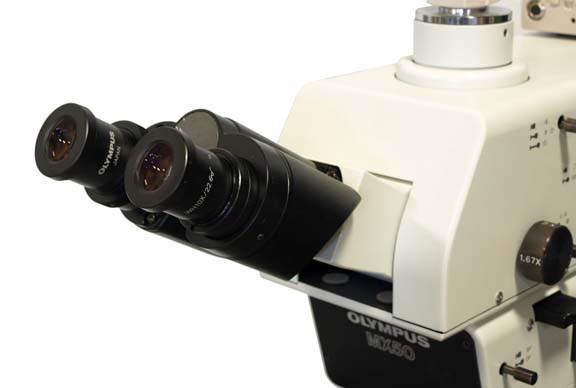

Eyepieces
  Model Olympus WH
  Magnification 10 X
  Field Number 22 mm
Trinocular/Phototube Provided YES
Magnification Changer 1.67x, 2x, 2.5x
Motorized Nosepiece YES
Multiple Objectives Models

UM Plan FL 10x/0.30 BD
UM Plan FL 20x/0.46 BD
UM Plan FL 50x/0.80 BD
UM Plan FL 100x/0.90 BD

Polarizer YES
Analyzer YES
Illumination Power Volts: 19     Watts: 100
Power Supply Included YES
Stage Type Coaxial X-Y
Stage Area Length: 311  mm  (12.244 in)     Width: 349.0  mm  (13.740 in)
X-Y-Z Stage Travel X: 203  mm  (7.992 in)     Y : 203  mm  (7.992 in)
Other Information

Confocal unit part#- MX-CFETTR

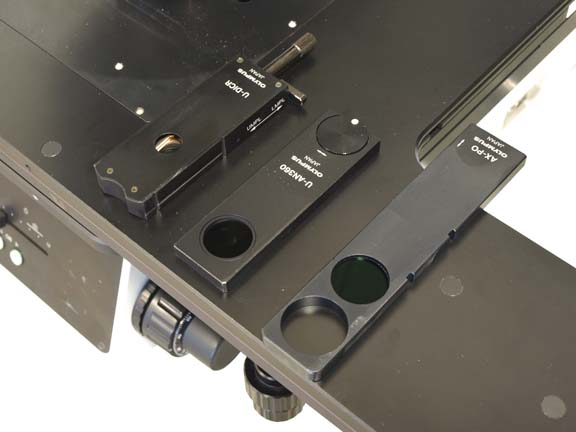

Analyzer for reflected light part#- U-AN360
Polarizer for reflected light part#- AX-PO
DIC Slider for reflected light part#- U-DICR
Olympus Stage: Model MX-SIC 8R

Halogen lamp for non confocal observation:
12 volt/100 watts

Voltage selecter:

  • 100-120 volt
  • 220-240 volt



Confocal Observation:

  • Olympus Model U-ULH Mercury Burner Housing. 19 volt/ 100watts
  • Olympus Model- U-RFL-T-200 Mercury Burner Power Supply
Extended Description  Details at MX50_CF.pdf
CE Marked YES
Exterior Dimensions
  Width 20.000  in  (50.8 cm)
  Depth 32.000  in  (81.3 cm)
  Height 23.500  in  (59.7 cm)
