FULL DESCRIPTION of Item 1641

in Wafer Inspection Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 1641

Offered 1 Offered at Best Price


LEICA/REICHERT MICROSCOPE, MANUAL WAFER INSPECTION

Manual Wafer Inspection Microscope

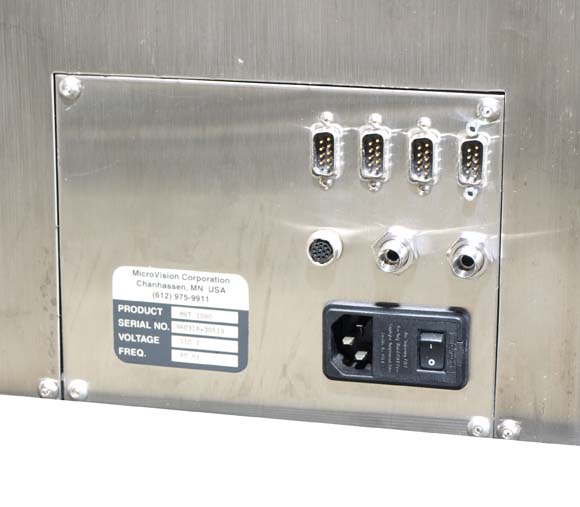

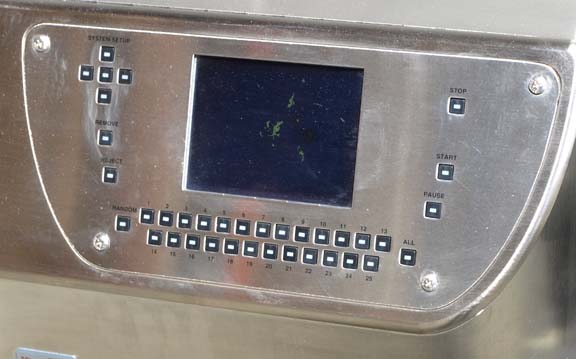

MicroVision MVT 1080 Wafer Loader

LEICA/REICHERT MICROSCOPE, MANUAL WAFER INSPECTION
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Leica
Model POLYLITE 88
Microscope Type Upright
Microscope Configuration Brightfield & Darkfield
Illumination Type Reflected Light
Binocular Angle Variable
Eyepieces
  Model WPK
  Magnification 10 X
  Field Number 20 mm
  Focusing YES
Wafer Size 200.00  mm  (7.87 in)
Magnification Changer 1.0,2.0
Motorized Nosepiece YES
Multiple Objectives Models

PLAN FLUOR LWD 5X/0.10 EPI
PLAN FLUOR LWD 10X/0.20 EPI
PLAN FLUOR XLWD 20X/0.40 EPI
PLAN FLUOR 50X/0.80 EPI
PLAN FLUOR 100X/0.90 EPI

Infinity Corrected Objectives YES
Illumination Power Volts: 14     Watts: 85
Power Supply Included YES
Wafer Stage/Loader
  Manufacturer Microvision Corp
  Model MVT 1080
  Wafer Size 200.00  mm  (7.87 in)
Stage Type Coaxial X-Y
Stage Area Length: 204  mm  (8.031 in)     Width: 204.0  mm  (8.031 in)
Camera
  Type None
Accessories

Trinocular with Beam Splitter (Photo tube not included)

Other Information

Adustable Aperture Diaphragm and Field Diaphragm

Power Requirements 120/240 V     47-63 Hz     1 Phase
Condition Excellent
Exterior Dimensions
  Width 16.000  in  (40.6 cm)
  Depth 30.000  in  (76.2 cm)
  Height 19.000  in  (48.3 cm)
Weight 162  lb  (73 kg)
