Item ID: 40300

**1 Offered at Best Price**

TEMESCAL HIGH VOLUME E BEAM EVAPORATOR, SIX POCKET

High Volume E Beam Evaporator

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Temescal
Model	VES-2550
Description	High Volume Evaporator
Vacuum System	Cryo Pumped
Load Lock Included	No
E Beam Power Supply
Power Supply Type	Tetrode Tube
High Voltage Minimum	6 kV
High Voltage Maximum	10 kV
Process Control Voltage Minimum	0 Volts DC
Process Control Voltage Maximum	10 Volts DC
Number of Guns Controlled	1
Electron Source Type	Six Pocket
Vacuum System	CTI On Board 10 High Vac Cryo Pump Granville Philips 307 Ion gauge controller
Gas Inputs	One
Substrate Heaters	Yes
Film Thickness Monitor	Yes
Residual Gas Analyzer	No
Accessories	(4)1000 Watt substrate heaters Leybold IC/5 deposition controller w/dual crystal monitor

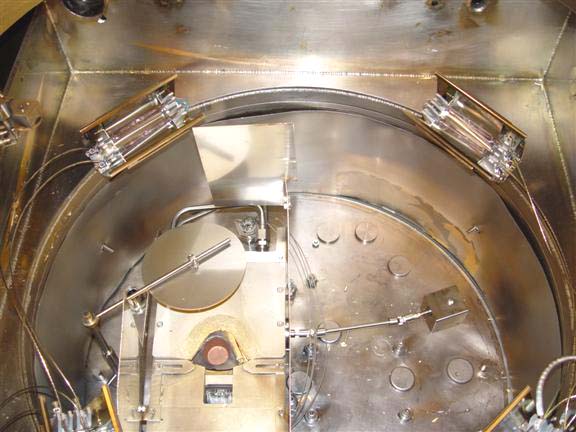

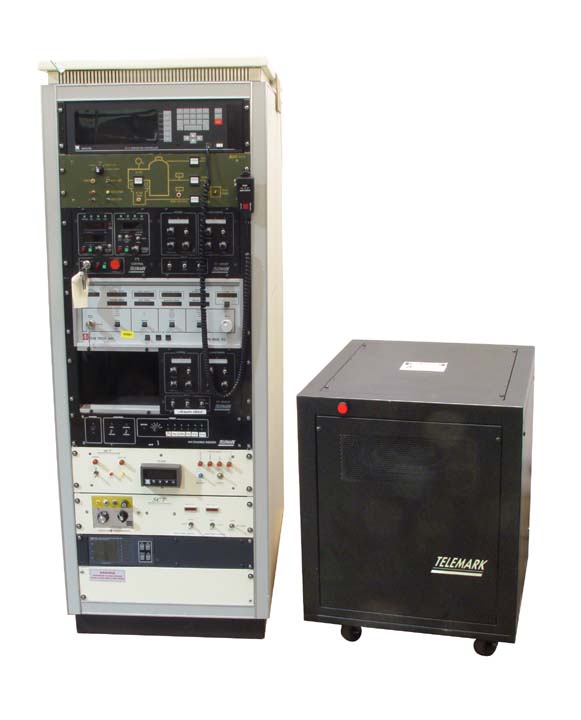

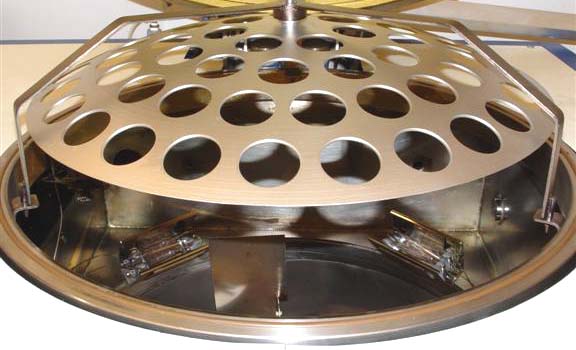

Other Information	Deposition chamber: Water cooled 25.5"dia x 12"high Source Chamber Pnuematically actuated 27.5"dia Can accomodate upto three sources Telemark model TT10 power supply, p/n:123-1003-1 Telemark TT10/15 controller Telemark 376 crucible indexer Model TP-8, 2", substrate fixture for lift off process. Up to 162 2" substrates CTI 8510 Cryo compressor
Exterior Dimensions
Width	64.000 in (162.6 cm)
Depth	40.000 in (101.6 cm)
Height	72.000 in (182.9 cm)
Weight	1,900 lb (862 kg)
