FULL DESCRIPTION of Item 5374

in DC Magnetron Drives
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 5374

Offered 1 Offered at Best Price

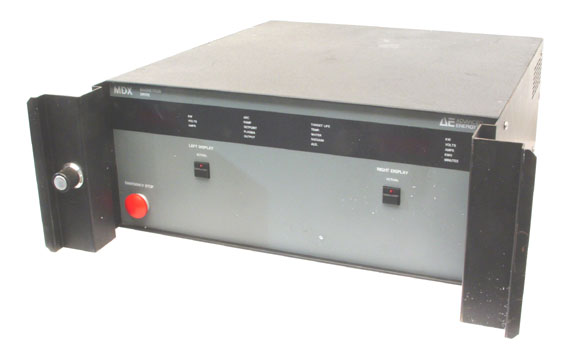

ADVANCED ENERGY DC MAGNETRON POWER SUPPLY

DC Magnetron Power Supply - Passive Front Panel

ADVANCED ENERGY DC MAGNETRON POWER SUPPLY

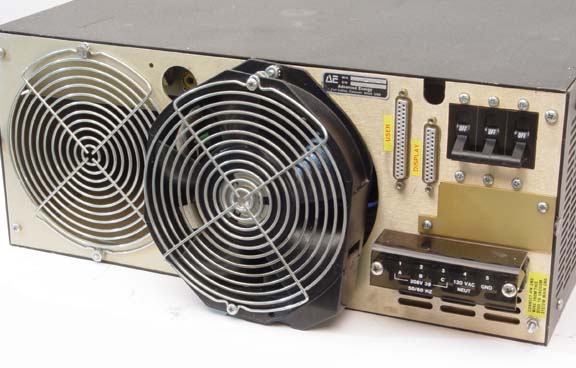

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Advanced Energy
Model MDX 5K
Power Output 5.00  kW
Power Module Type Master
Regulation Modes Constant Current     Constant Voltage     Constant Power
Ripple 5% RMS
Output Connector UHF
External Cooling Forced Air Cooled
Other Information

Passive front panel
Standard Z unit
P/N: 2011-011-A

Power Requirements 208 V     50/60 Hz     3 Phase
Condition Good
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 19.000  in  (48.3 cm)
  Height 7.000  in  (17.8 cm)
Weight 55  lb  (25 kg)
