FULL DESCRIPTION of Item 102201

in DC Magnetron Drives
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 102201

Offered2 Offered at $ 4,500.00 (each)

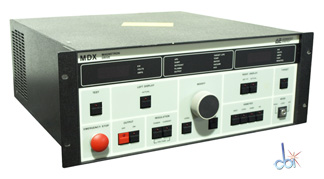

ADVANCED ENERGY DC MAGNETRON POWER SUPPLY 10 KW

DC Magnetron Power Supply
ADVANCED ENERGY DC MAGNETRON POWER SUPPLY 10 KW
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 4,500.00 (each)
Number of Units 2
Manufacturer Advanced Energy
Model MDX 10K
Power Output 10.00  kW
Maximum Output Voltage 1,250.00 Volts
Regulation Modes Constant Current     Constant Voltage     Constant Power
Ripple 2% RMS
Output Connector UHF
Cables Included No
External Cooling Forced Air Cooled
Other Information P/N 2012-091-B
High Impedance (High "Z") unit with standard ramp and Aux I options.
Three High "Z" tap settings:
Tap 1: 0V to 775V, Max 16.00A
Tap 2: 0V to 1000V, Max 12.80A
Tap 3: 0V to 1250V, Max 10.00A
Advanced Energy Part number 2012-091-B
Power Requirements 208 V     38.0 A     50/60 Hz     3 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 19.000  in  (48.3 cm)
  Height 7.000  in  (17.8 cm)
Weight 71  lb  (32 kg)
