FULL DESCRIPTION of Item 147469

in Turbo Pumps
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 147469

Offered1 Offered at $ 7,326.00

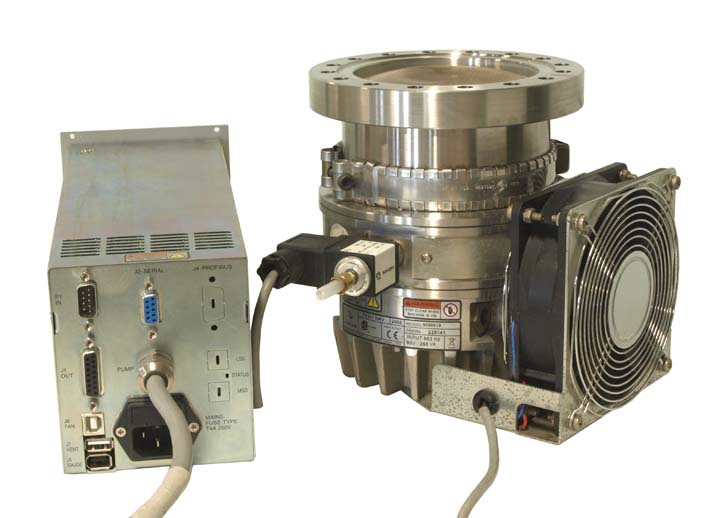

VARIAN TURBO PUMP REFURBISHED

Turbo Pump
Refurbished
VARIAN TURBO PUMP REFURBISHED
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price $ 7,326.00
Number of Units 1
Manufacturer Varian
Model TV-301
Pumping Speed Nitrogen 250.0  l/s  (529.8 CFM)
Ultimate Pressure  3.75E-10(En)  torr  (5.00E-10 mbar)
Inlet Flange Conflat     100.0  mm  (3.937 in)
Foreline Flange KF     16.0  mm  (0.630 in)

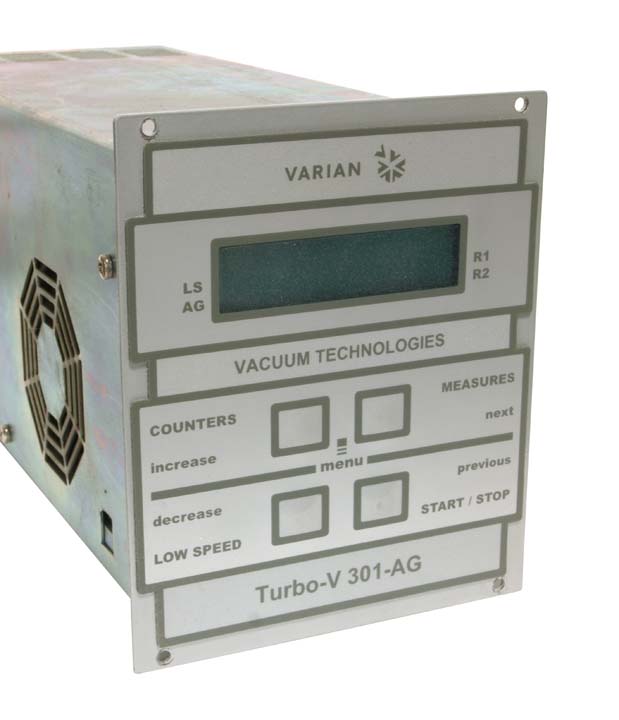

Controller Included Yes
Controller Model/Part Number TV301 p/n 9698991
Cables Included Yes
Duty--Service Normal
Inlet Screen Included Yes
Bearing Type Ceramic
Installation Orientation Any
Rotational Speed 56,000 RPM
External Cooling Forced Air Cooled
Accessories
Heat Band 120 Volt 60 Watt p/n 969804
Other Information
Flange: ID.4" OD.6"
Pump will be rebuilt when ordered, call for the lead time
Exterior Dimensions
  Width 8.000  in  (20.3 cm)
  Depth 7.000  in  (17.8 cm)
  Height 7.500  in  (19.1 cm)
Weight 17  lb  (8 kg)

OFFERED BY: (click name below to visit its website directly)

Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, Fax: 518.381.9578).
