FULL DESCRIPTION of Item 186518

in Wafer Inspection Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 186518

Offered1 Offered at Best Price

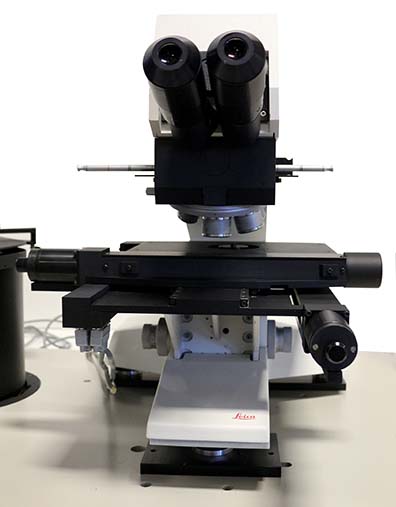

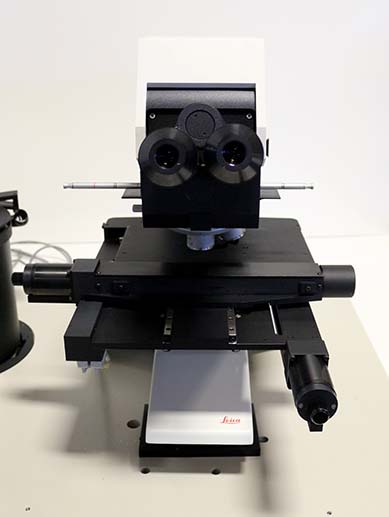

LEICA/REICHERT WAFER INSPECTION MICROSCOPE

Automated Wafer Inspection Microscope
Brightfield/Darkfield
With LEP motorized wafer transport system
LEICA/REICHERT WAFER INSPECTION MICROSCOPE
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price Unstated
Number of Units 1
Manufacturer Leica

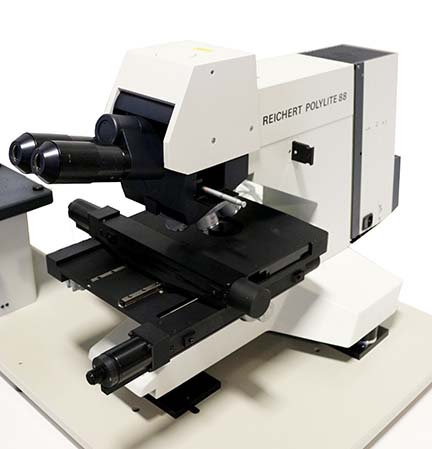

Model POLYLITE 88
Microscope Type Upright
Microscope Configuration Brightfield & Darkfield
Illumination Type Reflected Light
Binocular Angle Variable
Eyepieces
  Model WPK
  Magnification 10 X
  Field Number 20 mm
  Focusing YES
Wafer Size 200.00  mm  (7.87 in)
Magnification Changer 1.0,2.5
Motorized Nosepiece YES

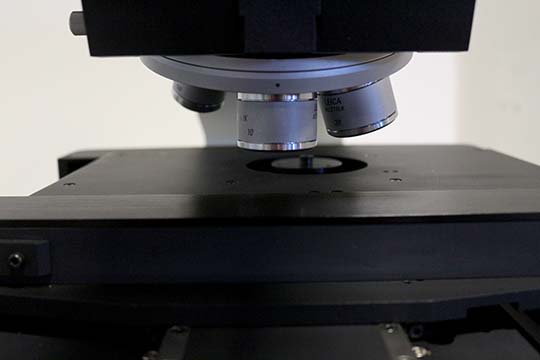

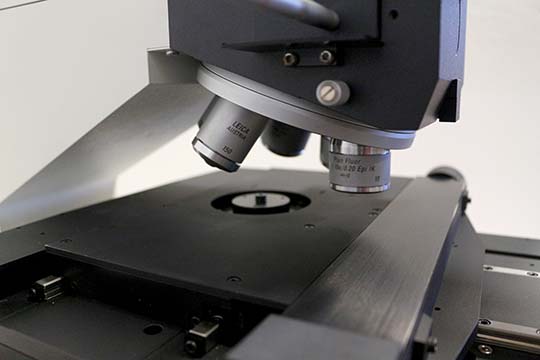

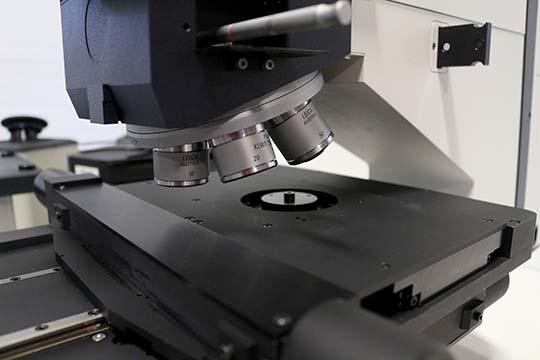

Multiple Objectives Models PLAN FLUOR LWD 10X/0.20 EPI IK
PLAN FLUOR XLWD 20X/0.40 EPI IK
PLAN FLUOR 50X/0.60 EPI
PLAN FLUOR 100X/0.70 EPI
PLAN APO 150X/0.95 EPI IK
Infinity Corrected Objectives YES
Illumination Power Volts: 14     Watts: 85
Power Supply Included YES
Wafer Stage/Loader
  Manufacturer Leica
  Wafer Size 200.00  mm  (7.87 in)
Stage Type Coaxial X-Y
Stage Area Length: 140  mm  (5.512 in)     Width: 261.0  mm  (10.276 in)
Accessories Leica brightfield/darkfield microscope M/N: 302313

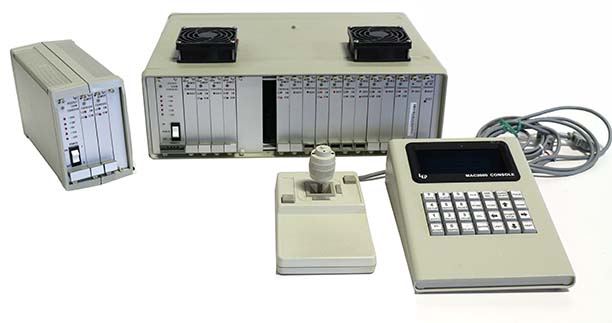

LEP motorized X-Y stage controller M/N: 73000100
LEP wobbler control M/N: 73000102
LEP MAC2000 interface console M/N: 73000352
LEP Joystick
Keyence LX-132T Laser (Notch/ Edge Finder) (included, but not shown in the photo)
Other Information Adustable aperture and field diaphragm
Power requirements (Scope): 115/220 V, 50/60 Hz, 100 W
Power requirements (stage controller): 100-240 V, 50/60 Hz, 300 W
