FULL DESCRIPTION of Item 55398

in Recirculating Chillers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 55398

Offered1 Offered at $ 7,025.00


LYDALL AFFINITY RECIRCULATING CHILLER 22870 WATT

Circulator

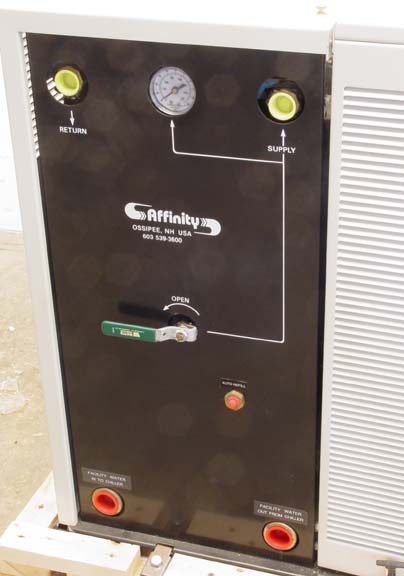

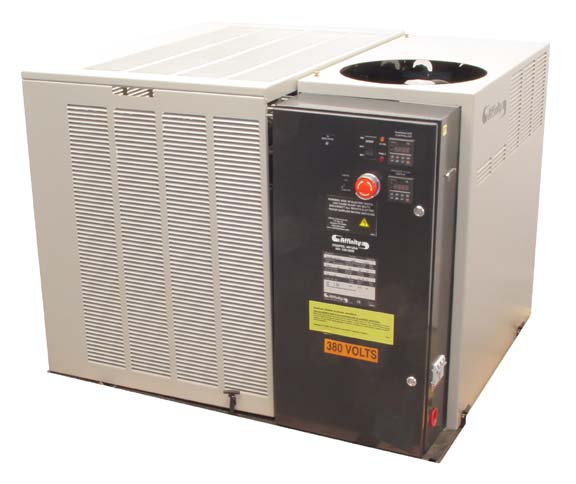

LYDALL AFFINITY RECIRCULATING CHILLER 22870 WATT
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 7,025.00
Number of Units 1
Manufacturer Affinity
Model FWA-060L-BE13BD4
Cooling System
  External Cooling Water Cooled
  Pump type/Model Turbine 2-HP
  Cooling Capacity 22,870  W  (78,001 BTU/hr)
Minimum Temperature 5  ºC  (41 ºF, 278.00 ºK)
Maximum Temperature 32  ºC  (90 ºF, 305 ºK)
Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES
  Interface Other
  Controller Manufacturer/Model Fuji 1/6 Din for process & flow
Accessories Auto refill
External strainer
25-pin connector
High & low flow and temperature alarms
Low level alarm
Other Information Part # 25400
380V 20A 50 Hz 3Ph
406V 20A 60 Hz 3Ph
7 GPM @ 65 PSI
3 GPM @ 90 PSI
Refrigerant: R-407C
Year of Manufacture 2001
Exterior Dimensions
  Width 37.000  in  (94.0 cm)
  Depth 31.500  in  (80.0 cm)
  Height 29.000  in  (73.7 cm)
Weight 622  lb  (282 kg)
