FULL DESCRIPTION of Item 90869

in Other Ovens
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 90869

Offered1 Offered at Best Price

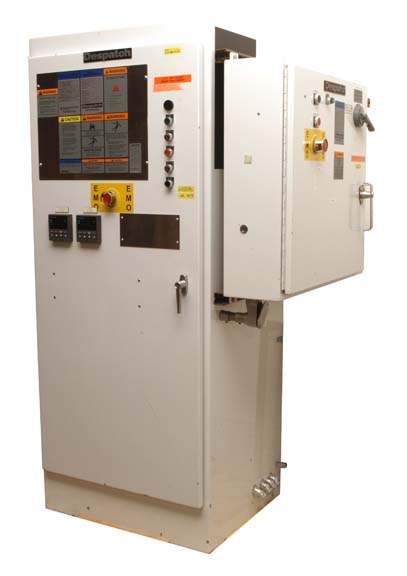

DESPATCH MAGNETIC VACUUM ANNEALING OVEN 300ºC

Magnetic Vacuum Annealing Oven
Thin Film Head/Hard Disc Manufacturing tool

You may also be interested in an Oster Magnetics A-620 Magnetic Vacuum Annealing Oven
DESPATCH MAGNETIC VACUUM ANNEALING OVEN 300ºC
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Despatch
Model MT300
Description Magnetic Annealing Oven
Maximum Temperature 300  ºC  (572 ºF, 573 ºK)
Temperature Control
  Control Stability ± 0.500 ºC
Heat/Cool Controls
  Control Type Programmable
  Chart Recorder None
  Controller Manufacturer/Model Honeywell UDC 2000
Chamber Size
  Width 6.25  in  (15.88 cm)
  Depth 12.25  in  (31.11 cm)
  Height 9.00  in  (22.86 cm)
Chamber Characteristics
  Chamber Construction Stainless Steel
  Maximum Number of Shelves 15
  Number of Shelves Provided 15
External Cooling Water Cooled
Other Information Handles 3" to 6" wafers
15 wafers maximum
Variable heat soak
Solvents allowed: none
Heater: electric
Heater capacity: 15kW
Heater: 42 amp
Total amps 68FLA
Control voltage 120-1-60
Dexter Permanent Magnet Part no. PMW97-0514-1, Field Strength: 250 gauss
Shelf dimensions: 6.25 x 6.25"
Vacuum 10-5 Torr as configured
Power Requirements 208 V     68.0 A     60 Hz     3 Phase
Year of Manufacture 1998
Condition Very Good
