TENNEY/LUNAIRE TEMPERATURE CHAMBER 100ºC

Temperature Chamber
TENNEY/LUNAIRE TEMPERATURE CHAMBER 100ºC
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price Unstated
Number of Units 1
Manufacturer Tenney
Model T5S5
Minimum Temperature -40  ºC  (-40 ºF, 233.00 ºK)
Maximum Temperature 100  ºC  (212 ºF, 373 ºK)
Temperature Control
  Control Stability ± 1.000 ºC
Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES
  Interface RS 232
Capacity/Volume Box 5.00  cu ft  (0.14 cu m)

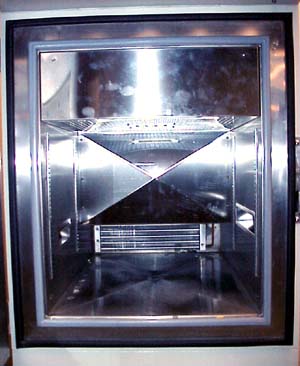

Chamber Characteristics
  Chamber Construction Stainless steel
  Number of Shelves Provided 0
  Viewing Window YES
Chamber Size
  Width 22.00  in  (55.88 cm)
  Depth 20.00  in  (50.80 cm)
  Height 22.00  in  (55.88 cm)
Refrigerant Type & Quantity R404A(non CFC), 12 lbs.
Other Information Transient:
Supply air temperature +75°Cto 0°C and vice versa at an average of 10°C per minute with (2) PCB

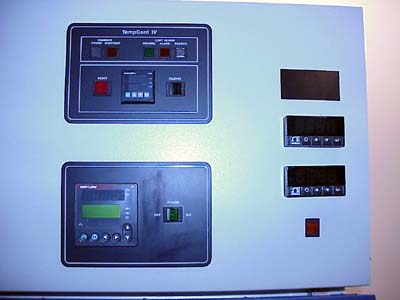

Instrumentation:
  • Watlow F4 256-step Programmable Controller with PID control and RTD sensor and
         cascade type control.
  • (2) Omega panel meters
  • TempGard high/low alarm

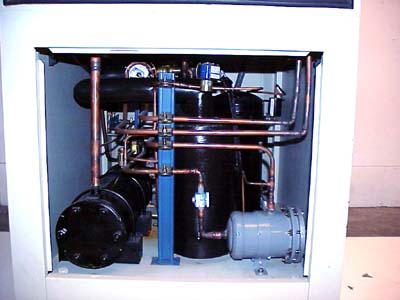

    Refrigeration Horsepower:
  • 5 HP scroll compressor with a water cooled condenser and accurately calibrated capillary
         expansion valve.
  • 5 GPM water at +20°C required
  • Alarm circuit is supplied to activate visual and audible alarms in the event of compressor trips.
    Heater Capacity:
  • 6 KW
    Airflow:
  • Vertical down(400 CFM)
    Features:
  • (2) access ports--(1) 2"W x 6"H(in left side wall), (1) 12"W x 2"H(in right side wall)
  • Both access ports have (1) LS-2 anti static foam plug
  • Urethane/fiberglass insulation
  • Logic to automatically select cooling when required
  • Hot refrigerant door mullion heating to retard condensation on door gasket
  • 2" steel swivel casters
  • 15" x 15" viewing window
  • Internal light with external switch
  • Door switch
  • (1) pair Model LBS-12-20 stainless steel sliding rails
  • (2) mounting bars left to right
Power Requirements 460 V     30.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 30.000  in  (76.2 cm)
  Depth 46.000  in  (116.8 cm)
  Height 90.000  in  (228.6 cm)
Weight 900  lb  (408 kg)
