FULL DESCRIPTION of Item 4778

in Diffusion Pumps
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 4778

Offered1 Offered at Best Price

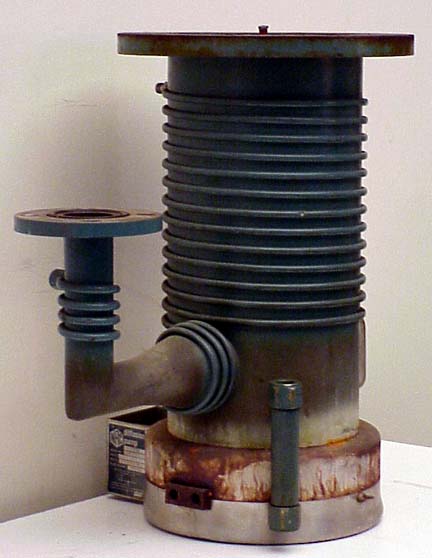

NCR DIFFUSION PUMP

Diffusion Pump
NCR DIFFUSION PUMP

Location: Scotia, NY
Unit Price Unstated
Number of Units 1
Manufacturer NRC
Model 0162
Inlet Flange ASA     200.1  mm  (7.878 in)
Foreline Flange ASA     56.4  mm  (2.220 in)
Pumping Speed Helium 3,000.00  l/s  (6,357.28 CFM)
Pumping Speed Air 2,400.00  l/s  (5,085.82 CFM)
Ultimate Pressure  5.00E-8(En)  torr  (6.67E-8 mbar)
Warmup Time 10 Minutes
Cooldown Time 10 Minutes
Cooling Water Required Minimum Flow: 0.25  GPM  (0.95 l/m)
Water Connection 3/8" NPT
Other Information Inlet flange
  • I.D.: 7.88"
  • O.D.: 11"
  • Bolt circle 9.5" x 8 bolt holes/0.18"
  • Parker O ring #2-267
    Outlet flange
  • I.D. 2.22"
  • O.D. 5"
  • Bolt circle: 3.88" x 4 bolt holes/0.81"
    2000 Watt heater
Power Requirements 120/220 V     50/60 Hz     1 Phase
Condition Very Good
Exterior Dimensions
  Width 20.000  in  (50.8 cm)
  Depth 21.000  in  (53.3 cm)
Weight 45  lb  (20 kg)
