FULL DESCRIPTION of Item 4890

in Diffusion Pumps
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 4890

Offered1 Offered at Best Price


EDWARDS DIFFSTAK 160 CRYO-COOLED PUMP

Cryo-Cooled Vapor Pump
EDWARDS DIFFSTAK 160 CRYO-COOLED PUMP

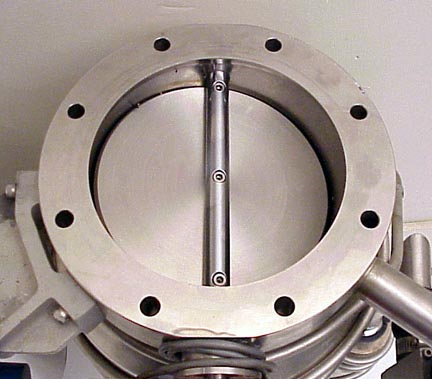

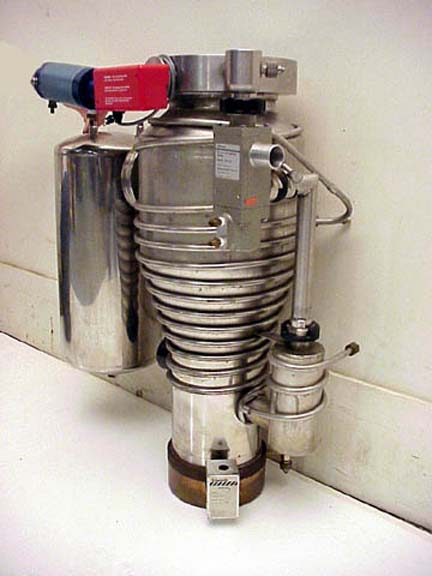

  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price Unstated
Number of Units 1
Manufacturer Edwards
Model CR160/700P
Inlet Flange ISO-K     160.0  mm  (6.299 in)
Foreline Flange KF     25.0  mm  (0.984 in)
Pumping Speed Nitrogen 600.0  l/s  (1,271.5 CFM)
Ultimate Pressure  2.25E-9(En)  torr  (3.00E-9 mbar)
Fluid Charge 0.60  L  (0.16 gal, 0.13 Br gal)
Cooling Water Required Minimum Flow: 0.50  GPM  (1.90 l/m)     Minimum Temperature: 20  ºC  (68 ºF, 293.00 ºK)
Water Connection 10mm compression couplings
Accessories Typical Applications Include:
  • Coating
  • E-beam welding
  • Leak detection
  • Mass spectrometry
  • Degassing
  • Lamp and tube evacuation
  • Cryostat pumpdown
  • Vacuum ovens

    Pneumatically operated inlet baffle

Other Information Pumping speed for water vapor: 2000 l/s
Liquid nitrogen charge of 7.73 liters, lasting for 18 hours
Pneumatic connections: 6mm x 1/4"BSP male
Pneumatic actuating pressure: 2.4-6.9 mbar
Additional info through this link: and here too
Power Requirements 110 V     1 Phase
Exterior Dimensions
  Width 25.000  in  (63.5 cm)
  Height 30.000  in  (76.2 cm)
Weight 60  lb  (27 kg)
