Item ID: 143191

**1 Offered at $ 2,750.00**

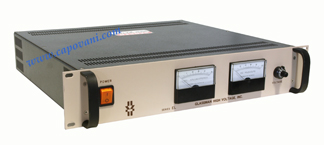

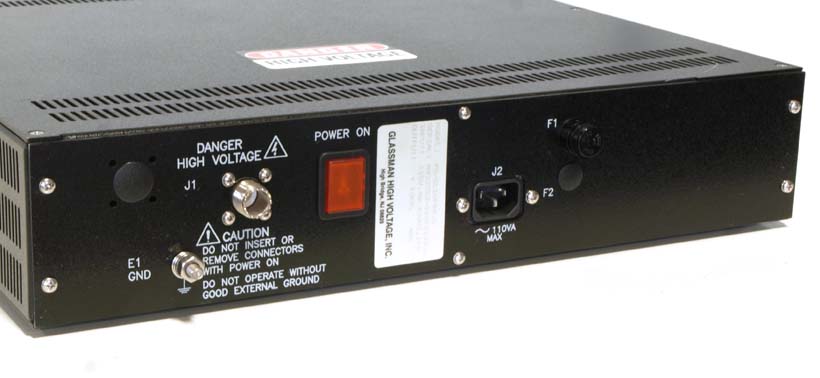

GLASSMAN HIGH VOLTAGE POWER SUPPLY, 10 kV

High Voltage Power Supply Positive Polarity

... other image

Location: Scotia, New York

Unit Price	$ 2,750.00
Number of Units	1
Manufacturer	Glassman
Model	PS/EL10P4
Maximum Output Voltage	10.0 kV
Maximum Output Current	4.0 mA
Bipolar	No
Panel Meters	Analog
Ripple	<0.03% RMS of rated voltage at +0.5v at full load
Regulation	Better than 0.005%
Interface	I/O Port
External Cooling	Air Cooled
Accessories	3M (10') HV cable add $200 with the purchase of the power supply, inquire about longer cables. To purchase HV cable alone the price will be $320 for a 3M (10'), inquire on longer cables.
Other Information	Positive Polarity We will not honor our 90 day warranty if this power supply will be used for arc or spark gap applications
Extended Description	Details at EL_Series.pdf
Power Requirements	115 V 48-440 Hz 1 Phase
Exterior Dimensions
Width	19.000 in (48.3 cm)
Depth	18.000 in (45.7 cm)
Height	3.500 in (8.9 cm)
Weight	12 lb (5 kg)
