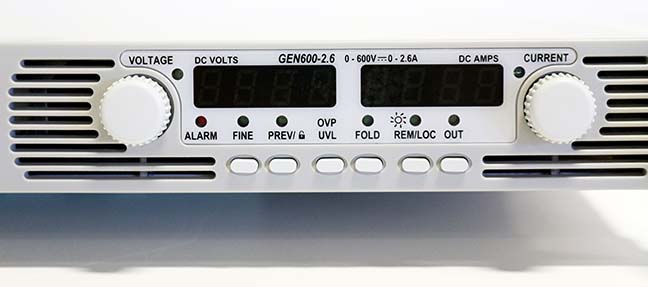

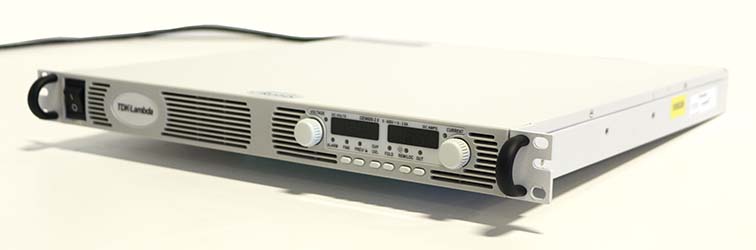

TDK LAMBDA GENESYS DC POWER SUPPLY 600 VOLT 2.6 AMP 1500 WATT

Programmable DC Power Supply
New Surplus --  Never Used



TDK LAMBDA GENESYS DC POWER SUPPLY 600 VOLT 2.6 AMP 1500 WATT
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer TDK-Lambda
Model GEN 600-2.6IS510
Maximum Output Voltage 600.00 Volts
Maximum Output Current 2.60 Amps
Maximum Output Power 1.50 kW
Regulation Modes Constant Current     Constant Voltage
Panel Meters Digital
Interface RS 232
Interface 2 RS 485
Bipolar No
Control Type Programmable
External Cooling Air Cooled
Other Information

P/N: 00507263

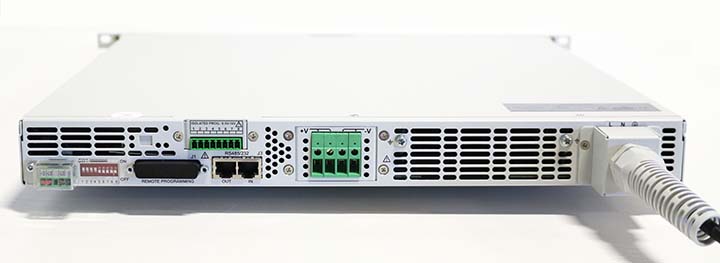

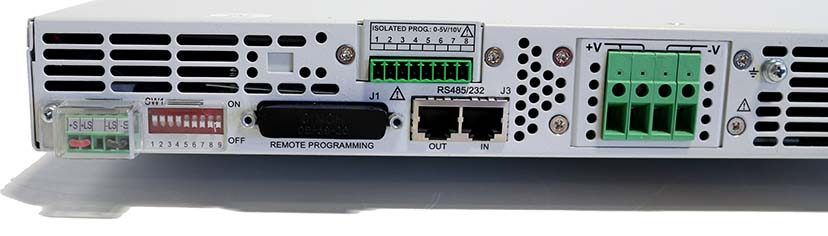

Has ISOLATED ANALOG PROGRAMMING OPTION IS510, can be removed, REQUEST removal when ordering if you need to use all J1 pins!

When the Isolated Analog Option is installed, do not apply any signals to the
non-isolated VPGM and IPGM (J1-9 and J1-10) pins. All other J1 features
may be used normally. Refer to Section 4.5 for a description of J1 features.

follow this link https://product.tdk.com/info/en/products/power/tec_data/ps_system_genesys.html for the manual

Power Requirements 100-240 V     19.0 A     50/60 Hz     1 Phase
CE Marked YES
Condition New-Never Used
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 20.000  in  (50.8 cm)
  Height 1.710  in  (4.3 cm)
