FULL DESCRIPTION of Item 186519

in Wafer Inspection Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 186519

Offered 1 Offered at Best Price

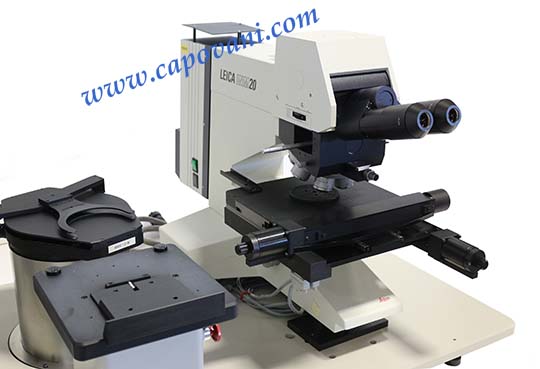

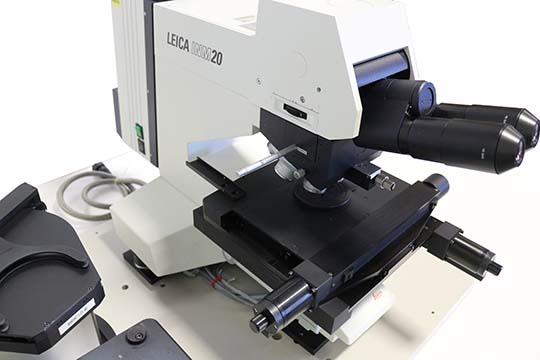

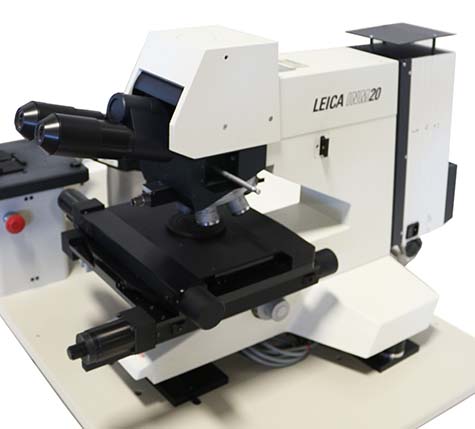

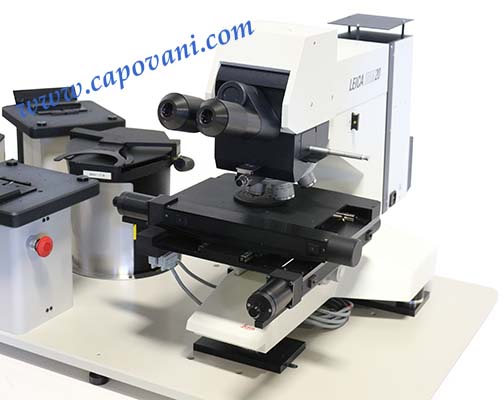

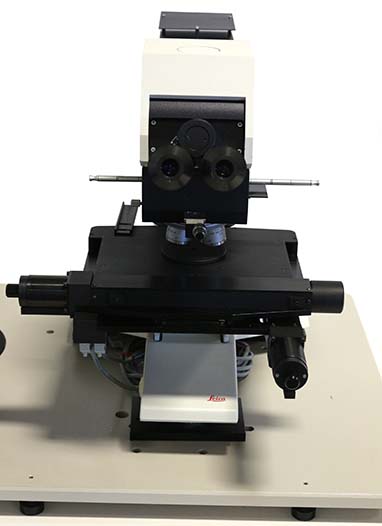

LEICA AUTOMATED WAFER INSPECTION MICROSCOPE

Automated Wafer Inspection Microscope

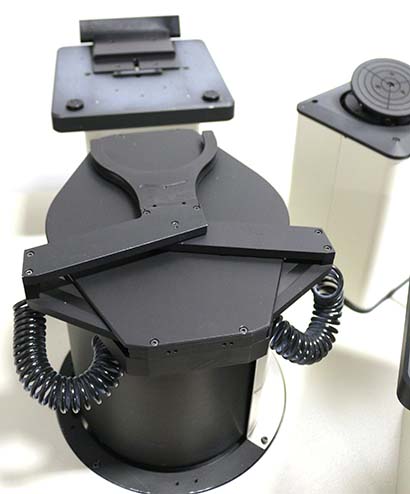

Brightfield/Darkfield, DIC, With LEP motorized wafer transport system

LEICA AUTOMATED WAFER INSPECTION MICROSCOPE
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Leica
Model INM20
Microscope Type Upright
Microscope Configuration Brightfield, Darkfield & DIC
Illumination Type Reflected Light
Binocular Angle Variable
Eyepieces
  Model WPK
  Magnification 10 X
  Field Number 20 mm
  Focusing YES
Wafer Size 200.00  mm  (7.87 in)
Magnification Changer 1.0, 2.5
Motorized Nosepiece YES

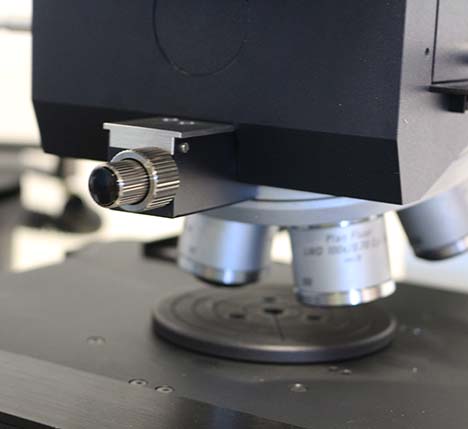

Multiple Objectives Models

PLAN FLUOR LWD 5X/0.10 EPI
PLAN FLUOR LWD 10X/0.20 EPI IK
PLAN FLUOR XLWD 20X/0.40 EPI IK
PLAN FLUOR LWD 50X/0.60 EPI IK

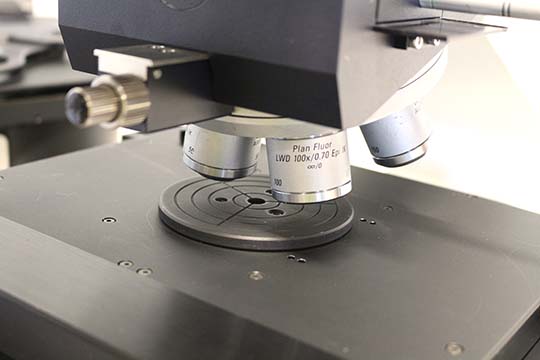

PLAN FLUOR LWD 100X/0.70 EPI IK
PLAN APO 150X/0.95 EPI IK

Infinity Corrected Objectives YES
Illumination Power      Watts: 100
Power Supply Included YES

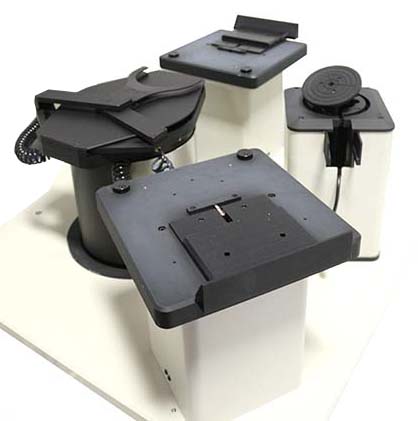

Wafer Stage/Loader
  Manufacturer Leica
  Wafer Size 200.00  mm  (7.87 in)
Stage Area Length: 254  mm  (10.000 in)     Width: 242.0  mm  (9.528 in)
Accessories

Leica brightfield/darkfield microscope/DIC M/N: 302303

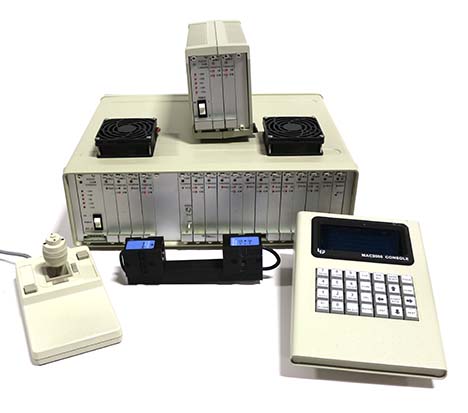

LEP motorized X-Y stage controller M/N: 73000100
LEP wobbler control M/N: 73000102
LEP MAC2000 interface console M/N: 73000352
LEP Joystick
Keyence LX-132T Laser (Notch/ Edge Finder)

Other Information

Adustable aperture and field diaphragm
Power requirements (Scope): 100-240V, 47-63 Hz, 100 W
Power requirements (stage controller): 100-240 V, 50/60 Hz, 300 W

Lamp house will also accept high pressure lamp.
