FULL DESCRIPTION of Item 57070

in Upright Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 57070

Offered 1 Offered at $ 5,950.00


LEITZ BRIGHTFIELD/DARKFIELD FILAR EYEPIECE

Brightfield, Darkfield and DIC
Leitz Filar Eyepiece with Boeckeler Micrometer and Readout

LEITZ BRIGHTFIELD/DARKFIELD FILAR EYEPIECE
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 5,950.00
Number of Units 1
Manufacturer Leitz

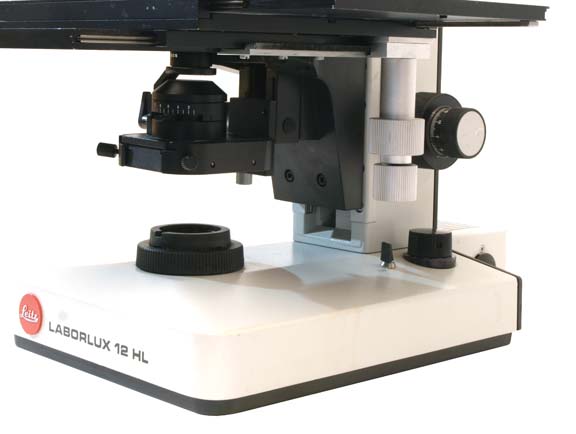

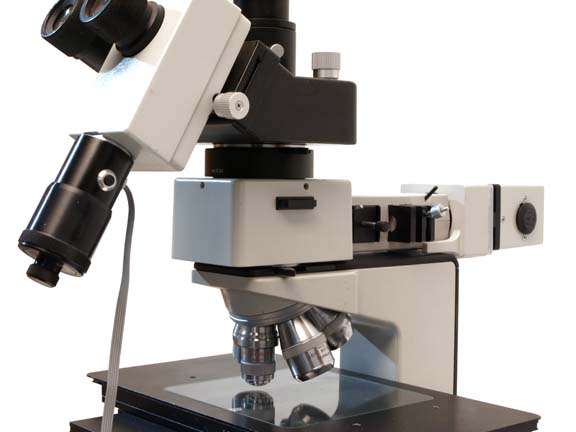

Model Laborlux 12 HL
Microscope Configuration Brightfield, Darkfield & DIC
Illumination Type Reflected & Transmitted Light
Binocular Angle 45°
Eyepieces
  Magnification 12 X
Trinocular/Phototube Provided YES
Magnification Changer None

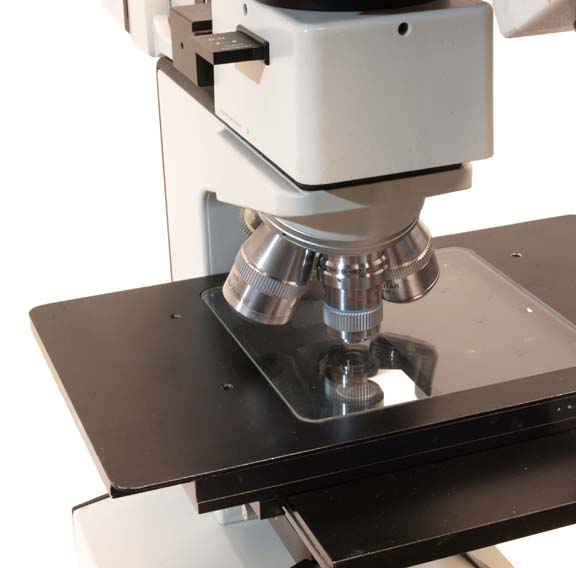

Multiple Objectives Models

NPL 5X 0.09
NPL 10x, 0.25, with ICR 10X 0.20P prism
NPL 20x, 0.35 DF
NPL Fluotar 50X, 0.85, with ICR 50x 0.85P prism
NPL Fluotar 100x, 0.90 DF

Infinity Corrected Objectives YES
Polarizer YES
Analyzer YES
Condenser YES
Illumination Power Volts: 6     Watts: 20
Illumination Power Transmitted Volts: 6     Watts: 20
Stage Type Coaxial X-Y
Stage Area Length: 292  mm  (11.496 in)     Width: 165.0  mm  (6.496 in)
X-Y-Z Stage Travel X: 108  mm  (4.252 in)     Y : 108  mm  (4.252 in)
Camera
  Type None
Accessories

ICR Analyzer
Leitz Condenser, P/N: 513547
External reflected light power supply
Internal transmitted light power supply

Other Information

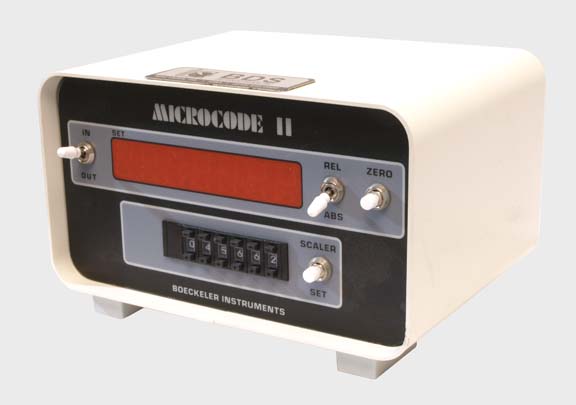

Boeckeler Microcode II readout.
Leitz P/N: 883901 Filar

NB:

  • Brightfield only in 10x and 50x objectives
  • Brighfield and darkfield in 5x, 20x, and 100x objectives
Power Requirements 100-240 V     50/60 Hz     1 Phase
