FULL DESCRIPTION of Item 88258

in Other Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 88258

Offered 1 Offered at Best Price

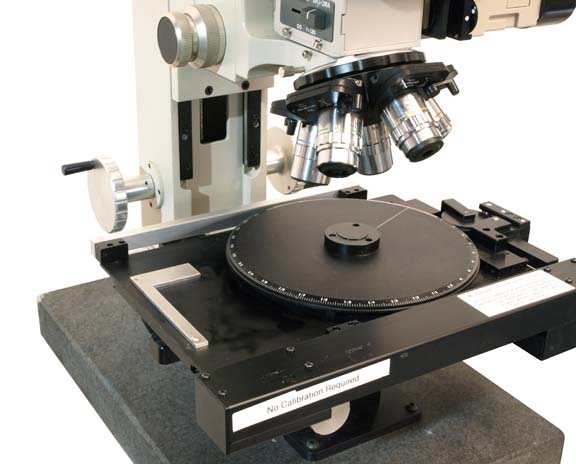

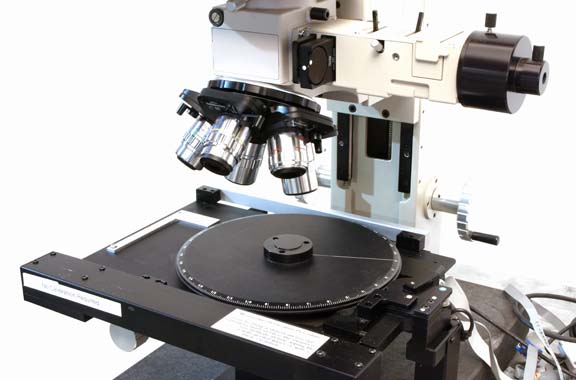

OLYMPUS DISK INSPECTION MICROSCOPE/MOTORIZED STAGE

Disk Inspection Microscope/Motorized Stage

OLYMPUS DISK INSPECTION MICROSCOPE/MOTORIZED STAGE
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Olympus
Model BH2-UMA
Description Disk Inspection Microscope/Motorized Stage
Microscope Type Upright
Microscope Configuration Brightfield, DIC & POL
Illumination Type Reflected Light
Binocular Angle Variable
Eyepieces
  Model WHK 10X/20L
Trinocular/Phototube Provided YES
Multiple Objectives Models

Objectives
NEO SPLAN 5 NIC 0.13 F= 180
NEO SPLAN 10 NIC 0.25 F= 180
NEO SPLAN 20 NIC 0.40 F= 180
NEO SPLAN 50 NIC 0.70 F= 180
NEO SPLAN 100 NIC 0.90 F= 180
Nomarski prisms
UPO/NIC Polorizing/DIC Slider



Infinity Corrected Objectives YES
Polarizer YES
Analyzer YES
Power Supply Included YES
Stage Type Coaxial X-Y, Rotary
X-Y-Z Stage Travel      Z : 67  mm  (2.638 in)
Rotary Stage Diameter 203  mm  (7.992 in)
Other Information

Stage
SEMPREX Model 12-9468.00
X Axis motorized
Y Axis manual
Rotory axis motorized
Joy stick control
Encoders X and rotory axis(readouts not included)
Scope mounted on precision granite base (Accuracy .0001)

Exterior Dimensions
  Width 13.000  in  (33.0 cm)
  Depth 19.000  in  (48.3 cm)
  Height 25.500  in  (64.8 cm)
Weight 96  lb  (44 kg)
