FULL DESCRIPTION of Item 176142

in Other Chambers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 176142

Offered 2 Offered at Best Price

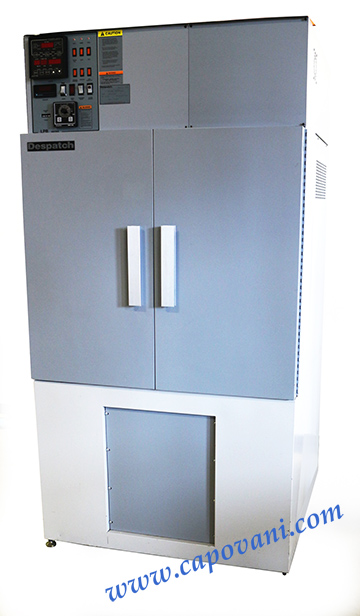

DESPATCH HAST CHAMBER 331F 90 PSIG

Highly Accelerated Stress Test Chamber



DESPATCH HAST CHAMBER 331F 90 PSIG
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 2
Manufacturer Despatch
Model LPB1-40V
Description HAST Chamber - 331F 90 PSIG
Maximum Temperature 166  ºC  (331 ºF, 439 ºK)
Temperature Control
  Control Stability ± 0.500 ºC
Heat/Cool Controls

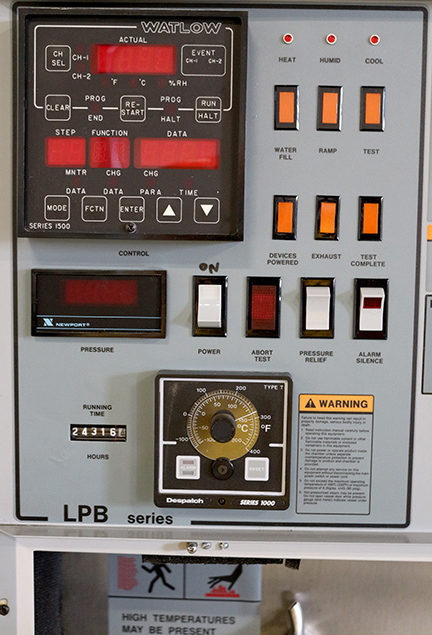

  Control Type Programmable
  Overtemperature Protection YES

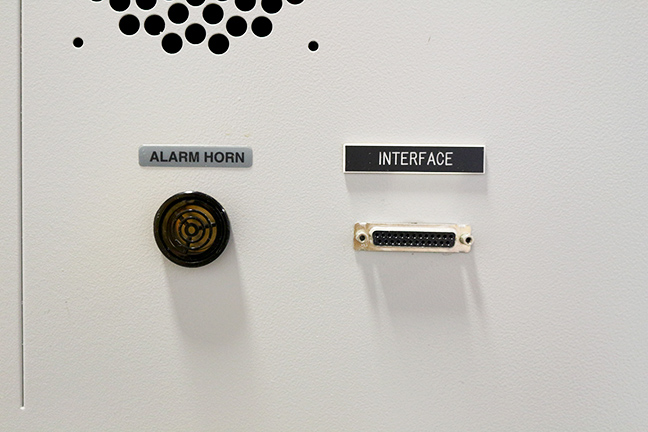

  Interface RS 232
Capacity/Volume Box 4.50  cu ft  (0.13 cu m)
Chamber Characteristics
  Chamber Construction Electropolished 316 Stainless Steel
Chamber Size
  Width 22.50  in  (57.15 cm)
  Depth 24.00  in  (60.96 cm)
Accessories

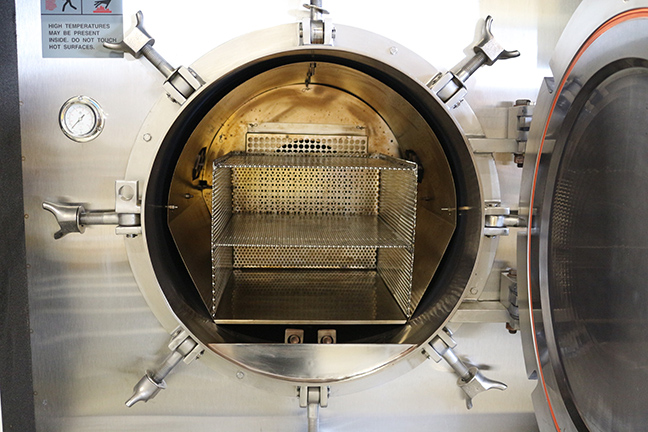

Unit No. 1 Has removable shelf unit:  16"W x 20"D x 12"H-- with two 6"H x 15.75"W compartments.  See detailed photos

Unit No. 2. Has card cage with (12) 22 pin card edge connectors.   There are a total of 120 teflon coated conductors exiting the chamber.  See detailed images.  Edge connector P/N: MP-7156-22-DY-5GY-1799

Other Information

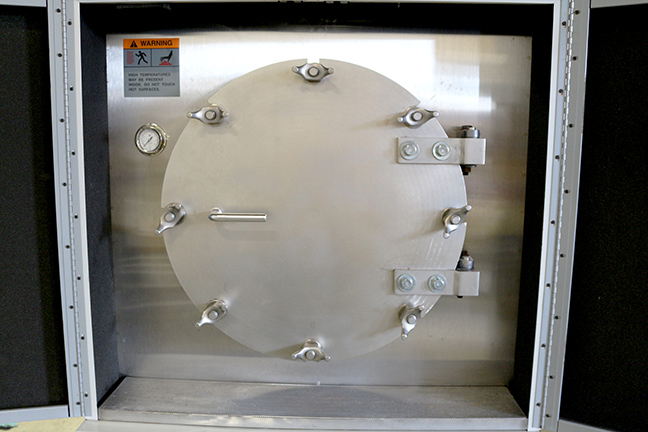

Vessel Door Opening:  23.5"
Humidity Range:  60-100%, (limited by 16PSIA vapor pressure)
Humitidy Uniformity:  .8% in empty vessel
Average time to temperature
  25°C to 130°C - 40 min. (80% RH)
  25°C to 166°C - 64 min. (100% RH)



Power Requirements 208 V     35.0 A     60 Hz
Exterior Dimensions
  Width 44.000  in  (111.8 cm)
  Depth 46.000  in  (116.8 cm)
  Height 86.000  in  (218.4 cm)
