Item ID: 140340

**1 Offered at Best Price**

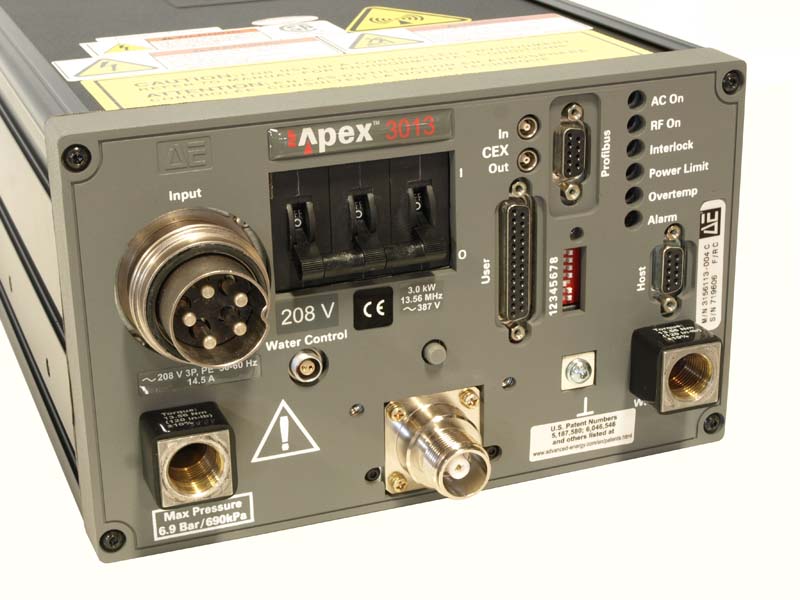

ADVANCED ENERGY RADIO FREQUENCY GENERATOR POWER SUPPLY 3000 WATTS 13.56 MHZ

Radio Frequency Generator

The Advanced Energy Apex Series of RF generators provide higher power density, greater delivered power repeatability and increased reliability.

... other image

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Advanced Energy
Model	Apex 3013
Description	Radio Frequency Generator
Rated Power Output	3000 Watts
Frequency	13.56
Scale	MHz
Output Impedance	50 Ohms
Output Connector	Type HN
Panel Meters	None
External Cooling	Water Cooled
Other Information	The default primary interfaces on power-up are: Profibus HOST 9 pin interface AE BUS HOST RS232 9 pin interface Secondary interface is: User 25 pin port It must be selected through primary interface on each power-up cycle, use AE BUS command 14 to change to user mode. The control mode setting is stored in volatile memory, so it will need to be set each time unit is powered up. Full model number: 3156113-004C Configuration code: A3D2A030BA140A020A Manufacturer link https://www.advancedenergy.com/en-us/products/plasma-power-products/rf-plasma-generators/apex/
Power Requirements	208 V 3 Phase
Condition	New-Never Used
Exterior Dimensions
Width	8.500 in (21.6 cm)
Depth	16.000 in (40.6 cm)
Height	5.250 in (13.3 cm)
Weight	42 lb (19 kg)

RELATED DOCUMENTS: click links to view
Datasheet
