FULL DESCRIPTION of Item 142877

in Cut-Off Saws 		Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 142877

Offered 1 Offered at $ 3,325.00

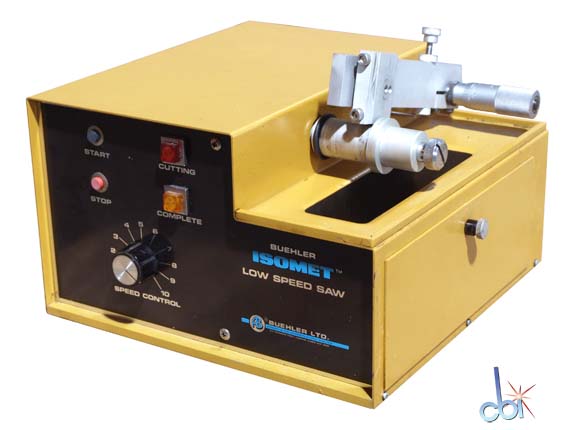

BUEHLER LOW SPEED CUT-OFF SAW

Precision Sectioning Saw

Representative photo - color of saw may vary

Various ISOMET chucks available.
See other information for more details.

 BUEHLER LOW SPEED CUT-OFF SAW
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 3,325.00
Number of Units 1
Manufacturer Buehler
Model ISOMET
Blade Type Diamond
Spindle Type Oil Bearings
Minimum Spindle Speed Min 9 RPM
Maximum Spindle Speed Max 300 RPM
Motor Horsepower 1/50  HP
Specimen Holder/Vice Saddle Chuck Model 11-1187
Accessories

Unit includes:
25, 50, 75, 150 gram weights (one of each)

Other Information

Blade Diameter: 3 to 5 inch
Blade not included

Saw is supplied with a single saddle chuck 11-1187.  (See item E on second photo)

Various optional chucks available.  Inquire for availability.

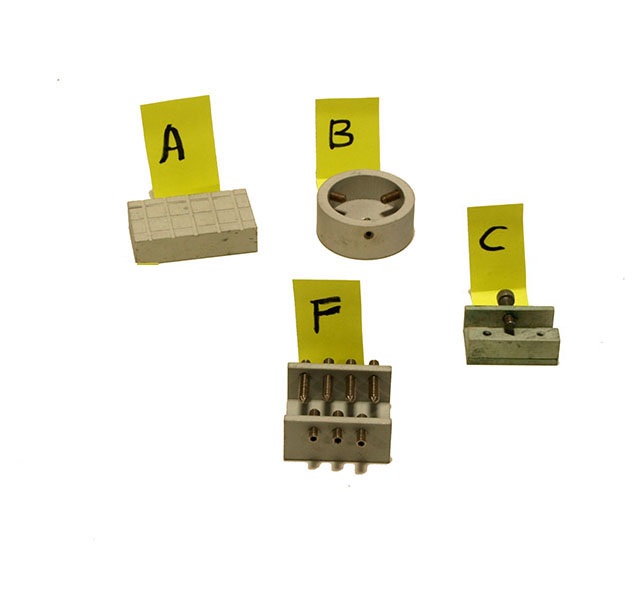

See additional photo for images of the following chucks.
Item A - Wafer chuck
Item B - Mount chuck 11-1189
Item C- Bar and tube chuck
Item E - Single saddle chuck 11-1187
Item F - Irregular specimen chuck.

Power Requirements 115 V     1.5 A     60 Hz     1 Phase
Exterior Dimensions
  Width 10.500  in  (26.7 cm)
  Depth 10.500  in  (26.7 cm)
  Height 6.000  in  (15.2 cm)
Weight 25  lb  (11 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Sales
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions
