FULL DESCRIPTION of Item 151594

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 151594

Offered 1 Offered at Best Price

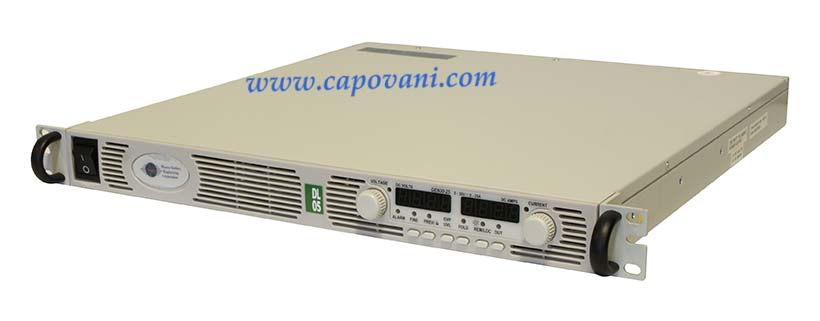

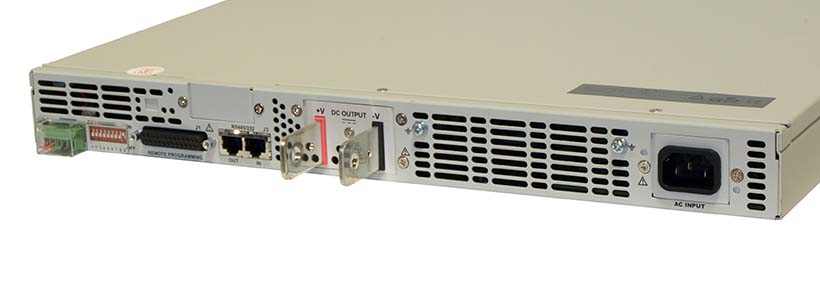

TDK-LAMBDA Genesys DC POWER SUPPLY

DC Power Supply

TDK-LAMBDA Genesys DC POWER SUPPLY
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer TDK-Lambda
Model GEN 30-25
Maximum Output Voltage 30.00 Volts
Maximum Output Current 25.00 Amps
Maximum Output Power 0.75 kW
Regulation Modes Constant Current     Constant Voltage
Ripple 8
Panel Meters Digital
Interface RS 485
Interface 2 RS 232
Control Type Programmable
External Cooling Forced Air Cooled
Other Information

P/N 00507129 Rev L
Control via front panel, the serial communication port or analog remote port
The following parameters can be programmed /
monitored via the serial communication port:
1. Output Voltage setting.
2. Output Current setting.
3. Output Voltage measurement.
4. Output On/Off control.
5. Output Current measurement.
6. Foldback protection setting
7. Over-voltage protection setting and readback.
8. Under-Voltage limit setting and readback.
9. Power-supply start up mode (Auto-restart or Safe-start mode).

Manual is here: https://product.tdk.com/info/en/products/power/tec_data/ps_system_genesys.html

Power Requirements 100-240 V     9.5 A     50/60 Hz     1 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 19.000  in  (48.3 cm)
  Height 1.750  in  (4.4 cm)
Weight 15  lb  (7 kg)
