Item ID: 179019

**7 Offered at $ 3,250.00 (each)**

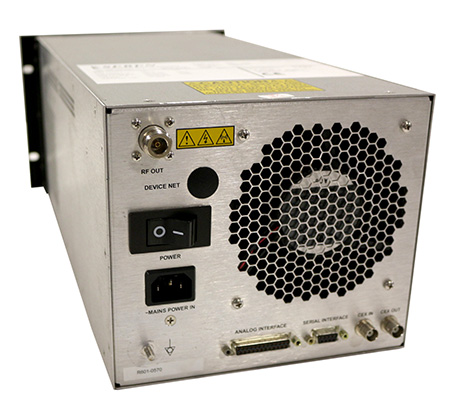

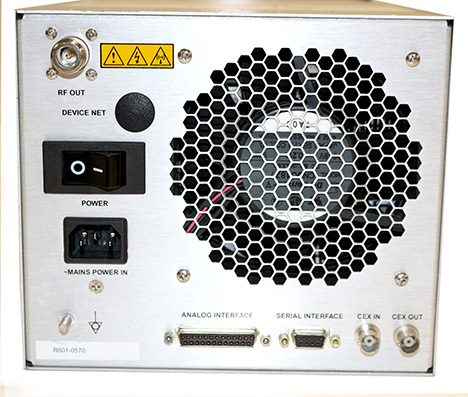

SEREN RF GENERATOR, 600 WATTS

RF Generator
Part number 9600610028.

You may also be interested in Seren MC2 Matching Network Controller

... other images

Location: Scotia, New York

Unit Price	$ 3,250.00 (each)
Number of Units	7
Manufacturer	Seren
Model	R601
Description	RF Generator
Rated Power Output	600 Watts
Frequency	13.56
Scale	MHz
Mismatched Power Output	100.00 W
Output Connector	Type N
Panel Meters	Digital
External Cooling	Air Cooled
Other Information	Part number 9600610028. This part number has analog interface connector pin 3 "RFON" modified, it will turn RF "ON" when pulled up to +24V. If your application require standard unit (pin 3 internally pulled up to +5V, and will turn RF "ON" when pulled to the ground), request conversion to the standard unit when ordering, please. Input power: 90-125 VAC or 190-264 VAC, 47-63 Hz (universal input). Maximum current: 15A. There are no transformer voltage taps to configure.
Extended Description	Details at 6100220000_R(L)X01_Series_OPER_MAN_V1_04.pdf
Power Requirements	120/240 V 15.0 A 47-63 Hz 1 Phase
Year of Manufacture	2007
Exterior Dimensions
Width	9.500 in (24.1 cm)
Depth	18.500 in (47.0 cm)
Height	7.000 in (17.8 cm)
Weight	33 lb (15 kg)
