FULL DESCRIPTION of Item 184566

in Vibration Isolation Tables
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 184566

Offered 1 Offered at $ 875.00

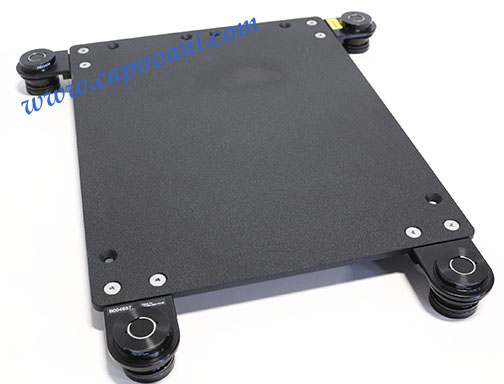

VISTEK NEWPORT MECHANICAL VIBRATION ISOLATION PLATFORM 18" X 24"

Mechanical Vibration Isolation Platform


VISTEK NEWPORT MECHANICAL VIBRATION ISOLATION PLATFORM 18" X 24"
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 875.00
Number of Units 1
Manufacturer Newport
Model VIB 320-2947
Width 18.00  in  (45.72 cm)
Length 24.00  in  (60.96 cm)
Work Surface Solid Aluminum
Accessories

(4) VIB 320-2947 Mechanical Isolators-- max. load per isolator is 47 lbs.
(4) VIB- BRKT
(1) VIP320-1824-70140 Platform

Minimum load needed for optimum isolation:  120 lb
Maximum load as confirgured: 140 lb.

Other Information

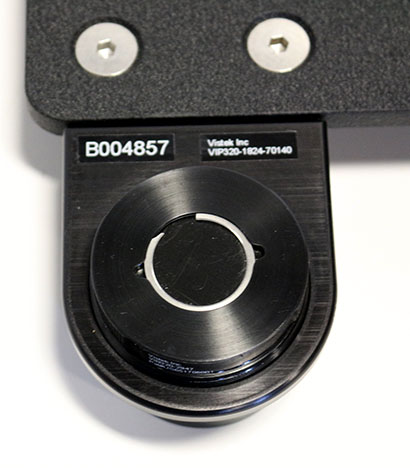

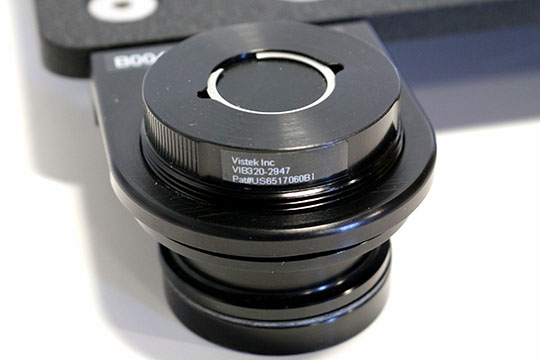

The VIB320-2947 bearing is a self-contained unit that provides both vertical and horizontal isolation from 29 lbs (13.2 kg) to 47 (21.4 kg) lbs. The isolators feature a 6.7Hz vertical resonance frequency that begins isolating at 9Hz and a horizontal resonance of 6.3Hz with isolation beginning at 8Hz. This is sufficient performance to eliminate 85% of vibration noise seen within typical laboratories. The VIB320 bearings attach to the VIBe base plate via specially designed brackets that feature a threaded aperture to allow leveling adjustment of the platform.

Exterior Dimensions
  Width 25.000  in  (63.5 cm)
  Depth 28.000  in  (71.1 cm)
  Height 2.000  in  (5.1 cm)
Weight 50  lb  (23 kg)
