FULL DESCRIPTION of Item 190345

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 190345

Offered 1 Offered at Best Price


TDK LAMBDA GENESYS DC POWER SUPPLY 600 VOLT 17 AMP 10000 W

Programmable DC Power Supply

TDK LAMBDA GENESYS DC POWER SUPPLY 600 VOLT 17 AMP 10000 W

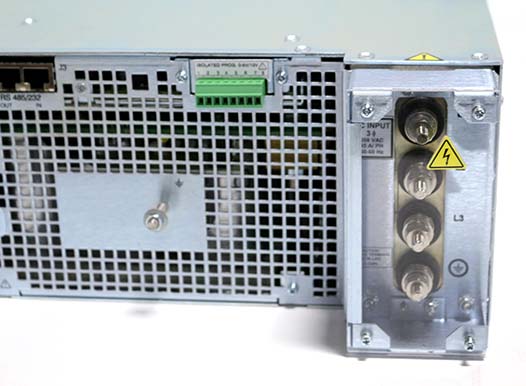

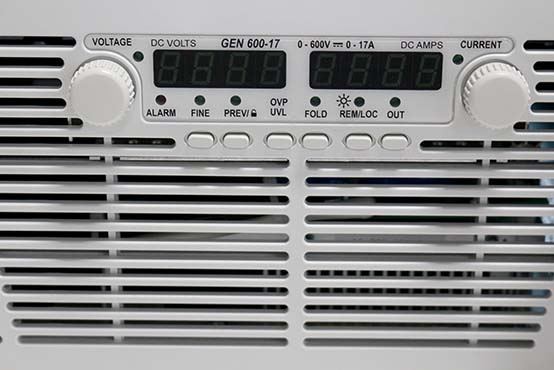

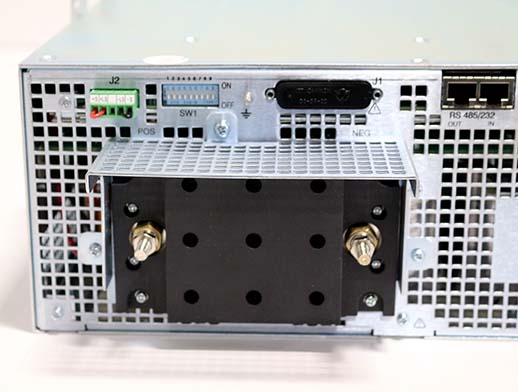

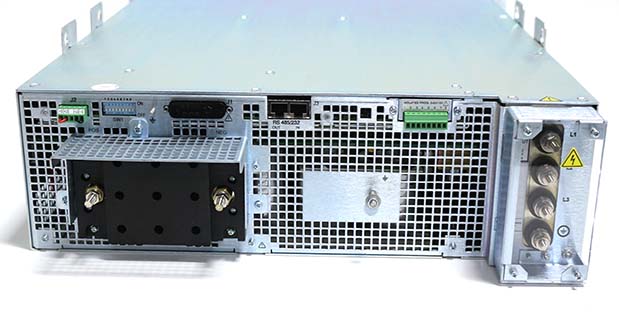

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer TDK-Lambda
Model GEN 600-17-IS510-3P208
Maximum Output Voltage 600.00 Volts
Maximum Output Current 17.00 Amps
Maximum Output Power 10.00 kW
Regulation Modes Constant Current     Constant Voltage
Panel Meters Digital
Interface RS 232
Interface 2 RS 485
Control Type Programmable
External Cooling Air Cooled
Other Information

P/N: 005301732

Has ISOLATED ANALOG PROGRAMMING OPTION IS510, can be removed, REQUEST removal when ordering if you need to use all J1 pins!

When the Isolated Analog Option is installed, do not apply any signals to the
non-isolated VPGM and IPGM (J1-9 and J1-10) pins. All other J1 features
may be used normally. Refer to Section 4.4 for a description of J1 features.

Manual is here: https://product.tdk.com/info/en/products/power/tec_data/ps_system_genesys.html

Extended Description  Details at TDK Lambda Genesys 10kW Specifications.pdf
Power Requirements 208 V     45.0 A     47-63 Hz     3 Phase
CE Marked YES
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 25.500  in  (64.8 cm)
  Height 5.250  in  (13.3 cm)
Weight 97  lb  (44 kg)
