Item ID: 190763

**1 Offered at Best Price**

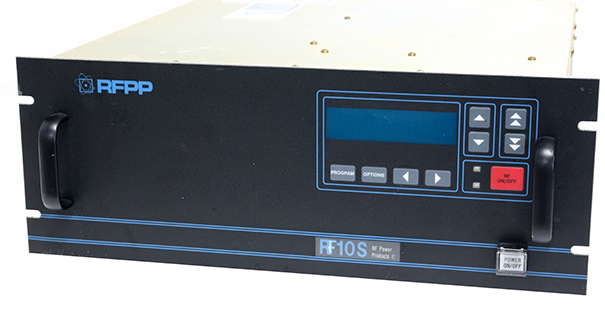

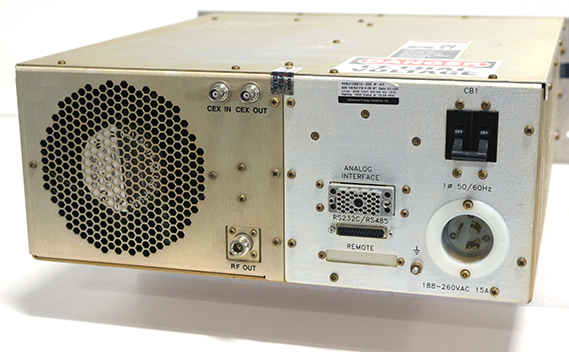

ADVANCED ENERGY RF GENERATOR POWER SUPPLY 1000 WATT 13.56 MHZ

Radio Frequency (RF) Generator

Power Supply Part No: 3150014-000 G4 SE

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Advanced Energy
Model	RF10S
Description	RF Generator
Rated Power Output	1000 Watts
Frequency	13.56
Scale	MHz
Output Impedance	50 Ohms
Output Connector	Type N
Interface	RS 232
Panel Meters	Digital
External Cooling	Forced Air Cooled
Other Information	P/N: 3150014-000 F SE RS232/RS485 Interface Input power 190-262VAC single phase, 50/60Hz, selectable via transformer taps. Available taps: 190-203VAC 203-214VAC 214-225VAC 225-235VAC 235-245VAC 245-262VAC Specify input voltage when ordering, please!
Power Requirements	208 V 50/60 Hz 1 Phase
CE Marked	YES
Year of Manufacture	2000
Exterior Dimensions
Width	19.000 in (48.3 cm)
Depth	22.500 in (57.2 cm)
Height	7.000 in (17.8 cm)
Weight	98 lb (44 kg)
