Item ID: 3703

**7 Offered at $ 2,650.00 (each)**

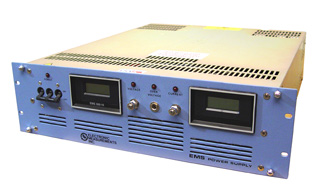

ELECTRONIC MEASUREMENT INC. DC POWER SUPPLY, 300V, 16A

DC Power Supply

... other image

Location: Scotia, New York

Unit Price	$ 2,650.00 (each)
Number of Units	7
Manufacturer	Electronic Measuremt
Model	EMS 300-16-2-D LB-10T-1401
Maximum Output Voltage	300.00 Volts
Maximum Output Current	16.00 Amps
Maximum Output Power	4.80 kW
Regulation Modes	Constant Current Constant Voltage
Ripple	150
Panel Meters	Digital
Control Type	Analog Setpoint
External Cooling	Forced Air Cooled
Other Information	Model EMS 300-16-2-D-LB-10T-1401 0-5V voltage and current remote control 0-5V voltage and current monitor scale Stability 0.05% Regulation 0.1% Watts 5000 Programmable This power supply has option -1401: “Fast discharge option”. Output electrolytic filtering capacitor is replaced with polyester one with much smaller value to achieve fast discharge. As a result, output voltage is less filtered, ripple P-2-P voltage @ full power is 5.7 V. Standard power supply without -1401 option specification: ripple P-2-P voltage 0.15 V.
Extended Description	Details at 83473000_EMS_STD Rev J.pdf
Power Requirements	190-250 V 24.0 A 50/60 Hz 3 Phase
Condition	Excellent
Exterior Dimensions
Width	19.000 in (48.3 cm)
Depth	22.000 in (55.9 cm)
Height	5.250 in (13.3 cm)
Weight	46 lb (21 kg)

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).

Payment:

We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, and Discover Card are accepted.
