FULL DESCRIPTION of Item 4360

in Upright Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 4360

Offered 3 Offered at Best Price


NIKON MICROSCOPE, REFLECTED LIGHT - BRIGHTFIELD & DARKFIELD

Brightfield and Darkfield

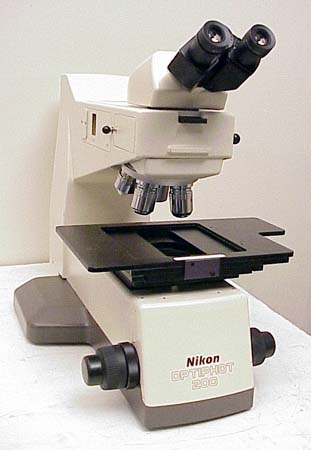

This photograph is a representative image of the microscope with a 6x6 transmitted light stage.

NIKON MICROSCOPE, REFLECTED LIGHT - BRIGHTFIELD & DARKFIELD
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 3
Manufacturer Nikon
Model Optiphot 200
Microscope Configuration Brightfield & Darkfield
Illumination Type Reflected Light
Binocular Angle 45°
Eyepieces
  Model CFWN
  Magnification 15 X
  Field Number 14 mm
  Focusing YES
Motorized Nosepiece YES
Multiple Objectives Models

Each unit has

  • CF Plan 5x/0.13 BD
  • CF Plan 10x/0.30 BD
  • CF Plan 20x/0.46 BD
  • CF Plan 50x/0.80 BD
Infinity Corrected Objectives YES
Illumination Power Volts: 12     Watts: 100
Power Supply Included YES
Stage Type Coaxial X-Y
X-Y-Z Stage Travel X: 204  mm  (8.031 in)     Y : 204  mm  (8.031 in)
Accessories

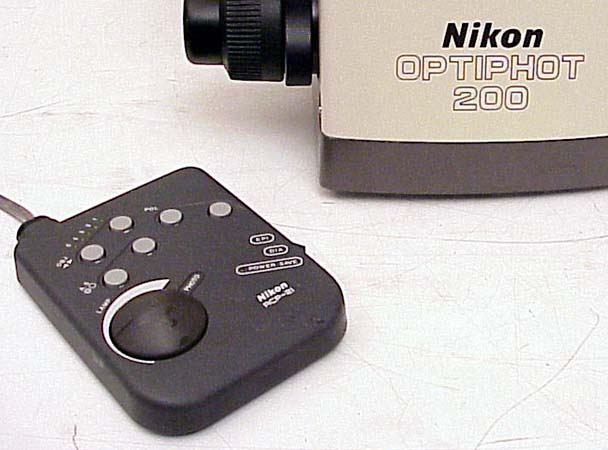

There is a remote control included with each Optiphot, model number RCP-21.

Other Information

There are four objectives included with this microscope, specifications above. The nose peice can hold five objectives.

Power Requirements 100-127 V     3.0 A     50/60 Hz     1 Phase
Condition Excellent
Exterior Dimensions
  Width 15.000  in  (38.1 cm)
  Depth 28.000  in  (71.1 cm)
  Height 20.000  in  (50.8 cm)
Weight 70  lb  (32 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, and Discover Card are accepted.
