FULL DESCRIPTION of Item 82647

in Linear Stages 		Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 82647

Offered 1 Offered at $ 1,900.00

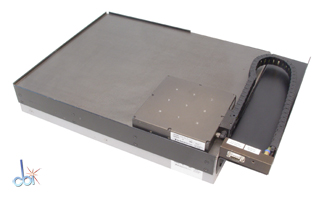

INTELLIDRIVES CARTESIAN PLANAR SYSTEM

Cartesian Planar System

Intellidrives PXY-15X18 		INTELLIDRIVES CARTESIAN PLANAR SYSTEM
  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price $ 1,900.00
Number of Units 1
Manufacturer IntelLiDrives
Model PXY-15X18
Stage Bearing Type Air Bearing
Stage Length 5.87  in  (149 mm)
Stage Width 5.87  in  (149 mm)
Tabletop Height 1.00  in  (25.40 mm)
Controller Included No
Cables Included No
Other Information Two axis of motion in a single plane
Table size: 15" X 18"
Accuracy: 10-25 Micron
Repeatability: 1-2 Micron
Resolution: 1-10 Micron
Motion strightness: 10 Micron
Flatness: 10 Micron
System requires driver and software(not included) available from www.intellidrives.com
Exterior Dimensions
  Width 15.000  in  (38.1 cm)
  Depth 18.000  in  (45.7 cm)
  Height 3.000  in  (7.6 cm)
Weight 41  lb  (19 kg)
