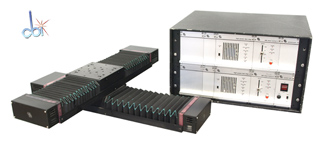

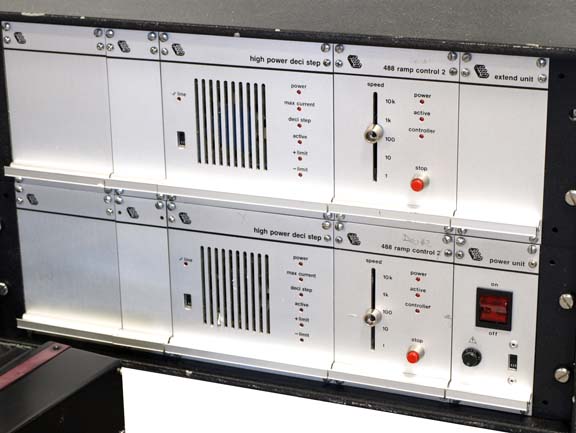

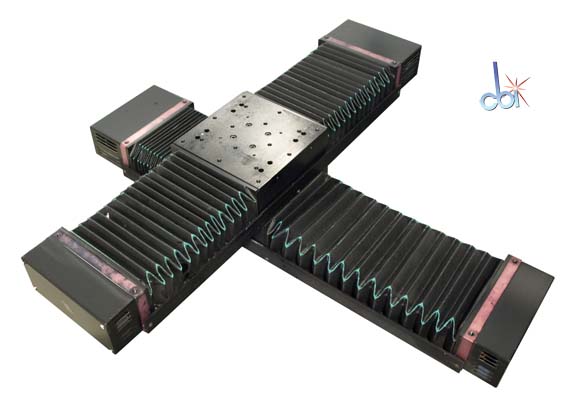

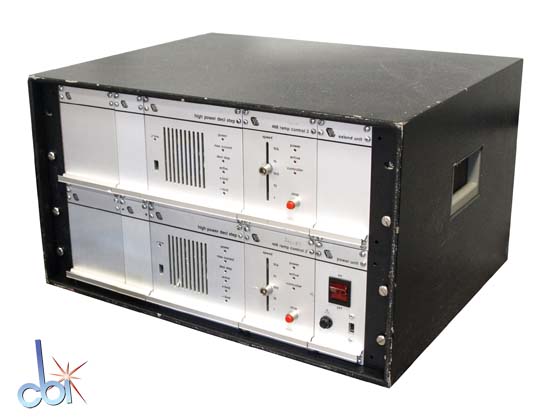

Item ID: 108681 1 Offered at $ 1,200.00 EALING ELECTRO-OPTIC X-Y STAGE WITH CONTROLLER X-Y Stage with ControllerEaling Electro-Optic 37-0346 ... other images Location: Scotia, New York Unit Price $ 1,200.00 Number of Units 1 Manufacturer Ealing Electro-Optic Model 37-0346 Configuration X-Y Total Travel, XYZ X: 12.00 in (305 mm) Y: 12.00 in (305 mm) Mechanical Drive System Lead screw Screw Pitch 5 turns per inch Indexer Included YES Table Length 6.25 in (158.75 mm) Table Width 6.25 in (158.75 mm) Tabletop Height 5.50 in (139.70 mm) Motor Drive: Stepper Motor Controller Included Yes Cables Included Yes Accessories Controller: (2) High Power Deci Step: Model 37-0726 (2) 488 Ramp Control: Model 37-0718 (1) Power Unit Hand Held Pendant Exterior Dimensions Width 29.500 in (74.9 cm) Depth 29.500 in (74.9 cm) Height 5.500 in (14.0 cm) Weight 144 lb (65 kg) OFFERED BY: (click name below to visit its website directly)Capovani Brothers Inc. Scotia , New York 1.518.346.8347 Shipping & Handling:Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions. Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.Please feel free to call us with any questions. (Phone: 518.346.8347, Fax: 518.381.9578). Payment:Minimum order of $50 required. We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms. All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms. All other sales, including foreign sales, are prepayment only. MasterCard, VISA, Discover and AMEX are accepted at sellers discretion. Domestic Terms and Conditions International Terms and Conditions Deal directly with Owner: Capovani Brothers Inc. of Scotia, New York ACCEPT Offered TermsMake COUNTER-OFFERSend an INQUIRY
