Measuring Microscope

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1

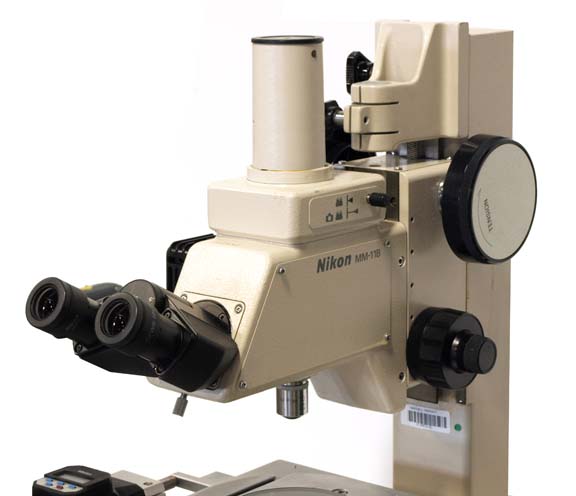

Manufacturer Nikon
Model MM-11B
Microscope Configuration Brightfield
Illumination Type Reflected & Transmitted Light
Binocular Angle 45°
  Model CFWN
  Magnification 10 X
  Field Number 20 mm
Trinocular/Phototube Provided YES

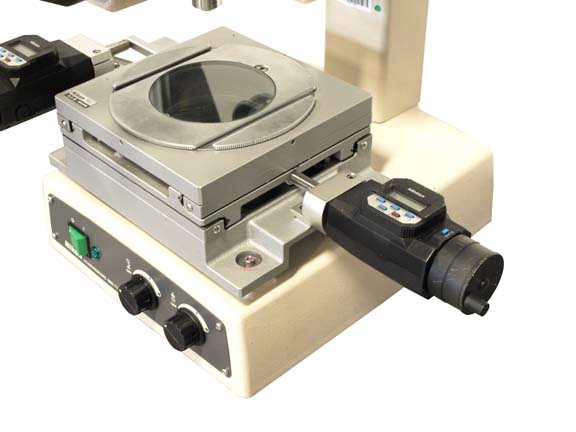

Stage Type Coaxial X-Y
X-Y-Z Stage Travel X: 51  mm  (2.008 in)     Y : 51  mm  (2.008 in)

Stage: Nikon A4-B

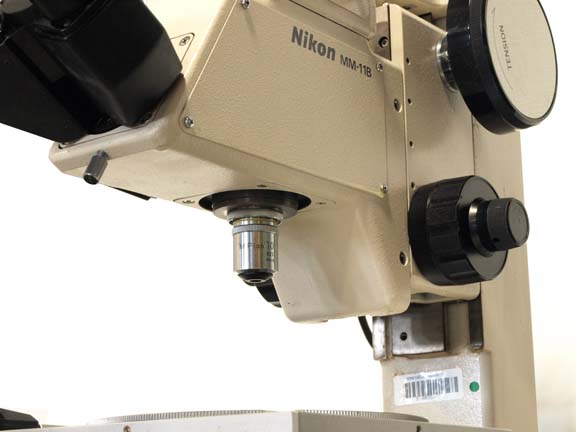

Objective MPlan 10x
Mitutoyo Digital Micrometers

Power Requirements 120/240 V     1.0 A     50/60 Hz     1 Phase
Exterior Dimensions
  Width 18.500  in  (47.0 cm)
  Depth 18.500  in  (47.0 cm)
  Height 22.000  in  (55.9 cm)
Weight 108  lb  (49 kg)
