FULL DESCRIPTION of Item 183220

in Helium Leak Detectors
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 183220

Offered 1 Offered at Best Price

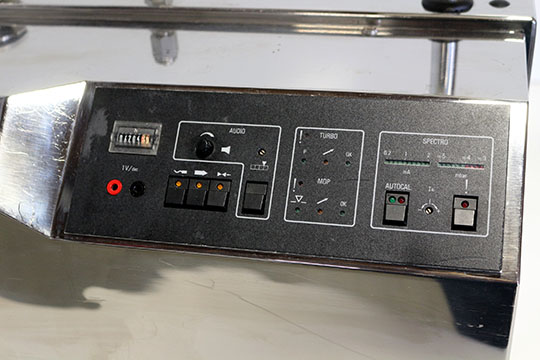

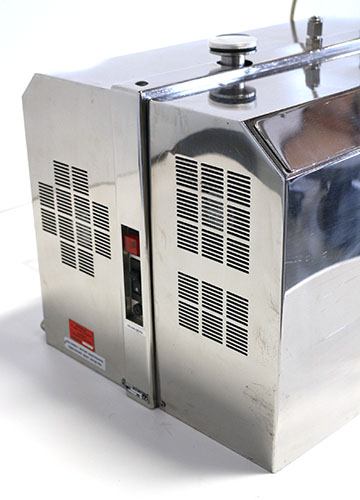

ALCATEL DRY HELIUM LEAK DETECTOR

Dry Helium Leak Detector

ALCATEL DRY HELIUM LEAK DETECTOR
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Alcatel
Model ASM 180 TD
High Vacuum Pump Type Turbomolecular Pump
Minimum Detectable Helium Leak Rate  2.0E-11 atm-cc/sec
Maximum Detectable Leak Rate  1.00E-1 atm-cc/sec
Inlet Port for Auxiliary Pump No
Test Port Connection KF 40
Start Up Time 3 Min.
Helium Pumping Speed at Inlet 4.40  l/s  (9.32 CFM)
Remote Control Capabilities Yes
Interface RS 232
Audio Alarm with Variable Pitch Yes
Detectable Masses      4 AMU
Internal Calibrated Leak Included
Built-In Roughing Pump Included
Liquid Nitrogen Trap Not Included
Accessories

Equipped with gas line "Bullet test option"
Turbo pump
Polished stainless steel exterior (UCT option)



Other Information

Smallest detectable signal at full pumping speed 5E-12 (atm·cc/s)
Helium signal reading range 2E-11 to 1E-1(atm·cc/s)

Power Requirements 115 V     60 Hz     1 Phase
Exterior Dimensions
  Width 23.000  in  (58.4 cm)
  Depth 19.000  in  (48.3 cm)
  Height 20.000  in  (50.8 cm)
Weight 228  lb  (103 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions




Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
