FULL DESCRIPTION of Item 185541

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 185541

Offered 2 Offered at Best Price


SORENSEN AMETEK DC PROGRAMMABLE POWER SUPPLY 1000V 5A

Programmable DC Power Supply

Sorensen is an Ametek Programmable Power brand.

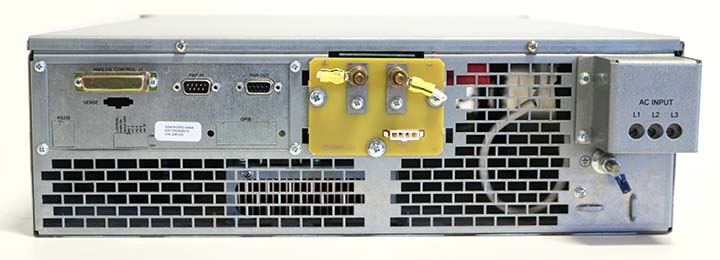

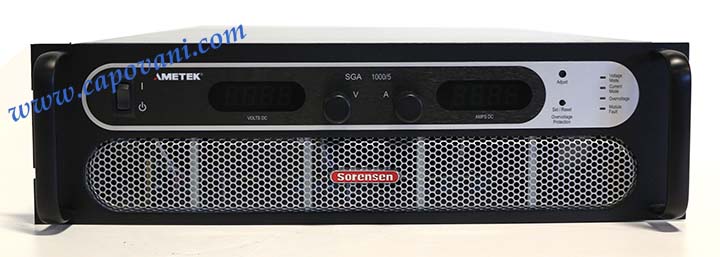

SORENSEN AMETEK DC PROGRAMMABLE POWER SUPPLY 1000V 5A
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 2
Manufacturer Sorensen
Model SGA 1K0X5C
Maximum Output Voltage 1,000.00 Volts
Maximum Output Current 5.00 Amps
Maximum Output Power 5.00 kW
Regulation Modes ConstantĀ Current     ConstantĀ Voltage
Ripple 100mV
Panel Meters Digital
Interface RS 232
Interface 2 I/O Port
Control Type Programmable
External Cooling Forced Air Cooled
Other Information

Power Requirements: 208-220 V     20.0 A     50/60 Hz     3 Phase

Manufacturer web page https://www.powerandtest.com/power/dc-power-supplies/sg-series

Extended Description  Details at SGA_Series_Op_Manual-M550129-01-RevD.pdf
CE Marked YES
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 25.120  in  (63.8 cm)
  Height 5.250  in  (13.3 cm)
Weight 80  lb  (36 kg)
