Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | Neslab |
Model | RTE-10 Digital Plus |
Minimum Temperature | -25 ºC (-13 ºF, 248.00 ºK) |
Maximum Temperature | 150 ºC (302 ºF, 423 ºK) |
Cooling Capacity | 500 W (1,705 BTU/hr) |
Heating Capacity | 800 BTU/hr (0.23 kW, 0.31 HP) |
Temperature Control |  |
Control Stability | ± 0.010 ºC |
Heat/Cool Controls |  |
Control Type | Programmable |
Overtemperature Protection | YES |
Interface | RS 232 |
Controller Manufacturer/Model | Neslab Digital Plus |
External Cooling | Forced Air Cooled |
Bath/Tank Dimensions |  |
Length | 9.3800 in (23.83 cm, 238.3 mm) |
Width | 8.7500 in (22.23 cm, 222.3 mm) |
Depth | 8.0000 in (20.32 cm, 203.2 mm) |
Pump type/Model | Z |
Min Flow | 4 GPM (15.20 l/m) |
Inlet Connection | 1/4"npt |
Outlet Connection | 1/4-npt |
Capacity/Liquid | 9.99 L (2.64 gal) |

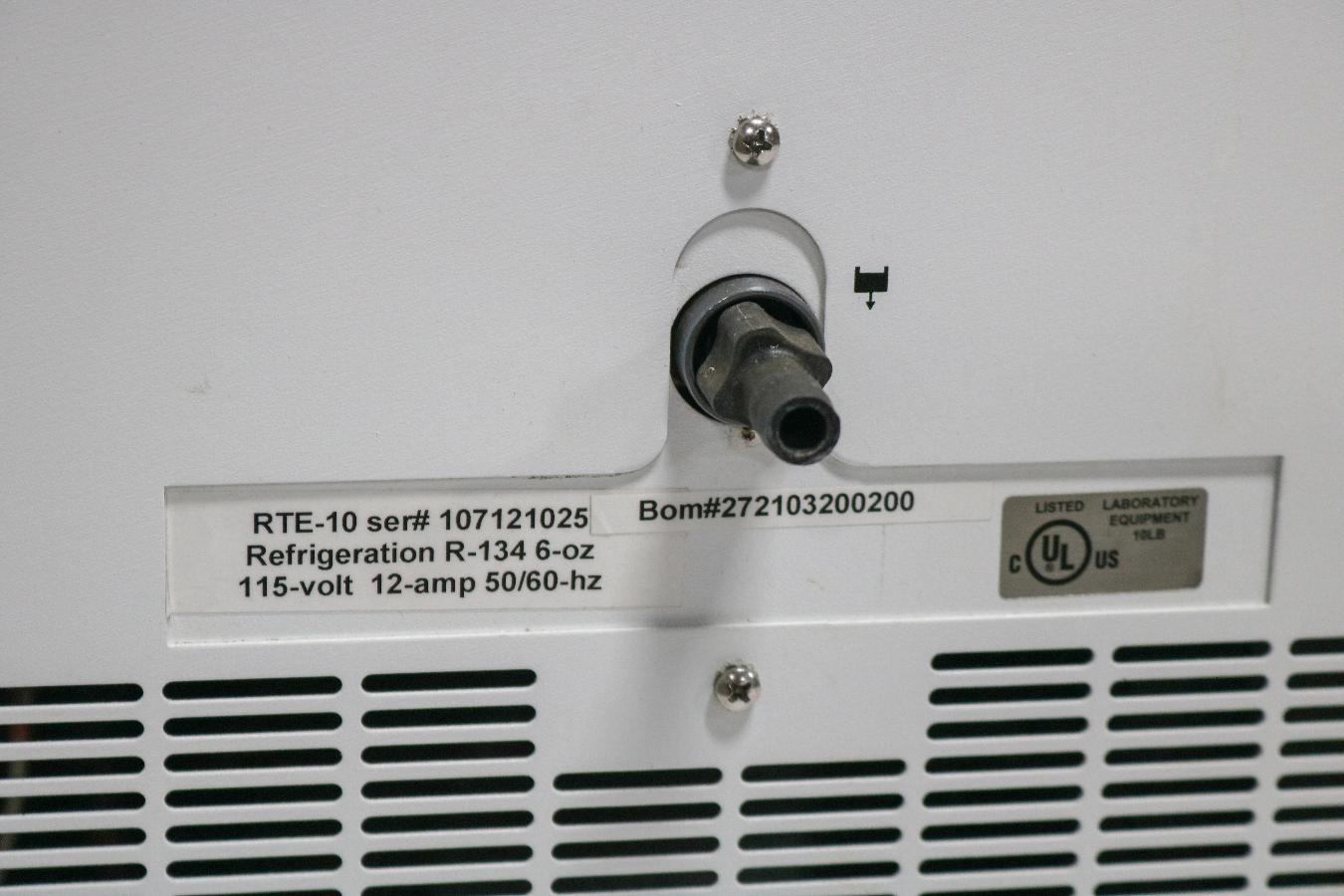

Refrigerant Type & Quantity | R-134A 6-oz |
Other Information | Bom# 272103200200 RS-232 / RS-485 1/8" od Nitrogen purge Tank drain Timer Function Temperature off set Mute alarm External sensor Pump capacity 16-feet @ 4.0-gpm

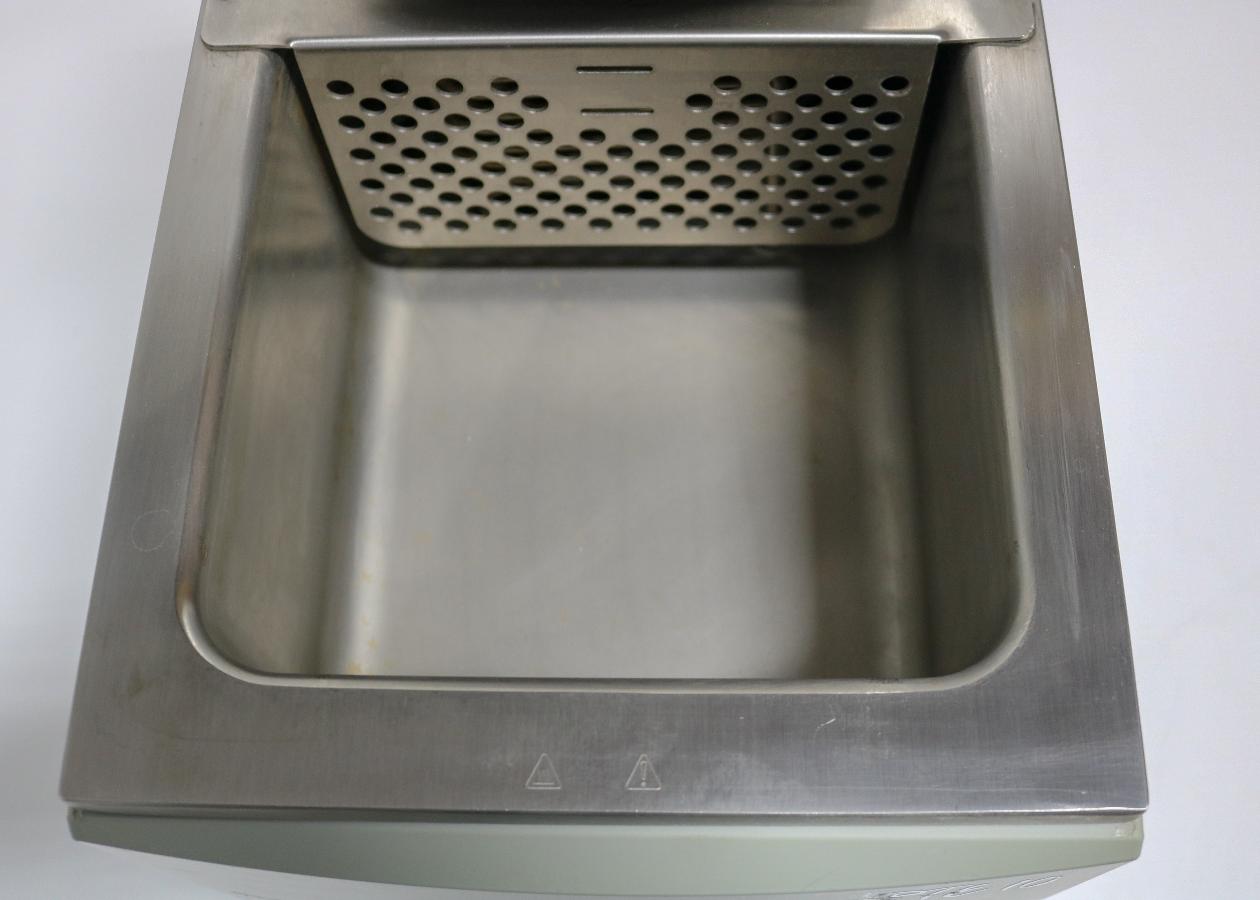

Bath is missing the cover |
Power Requirements | 115 V
12.0 A
60 Hz
1 Phase
|
