FULL DESCRIPTION of Item 217522

in Measuring Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 217522

Offered 1 Offered at Best Price

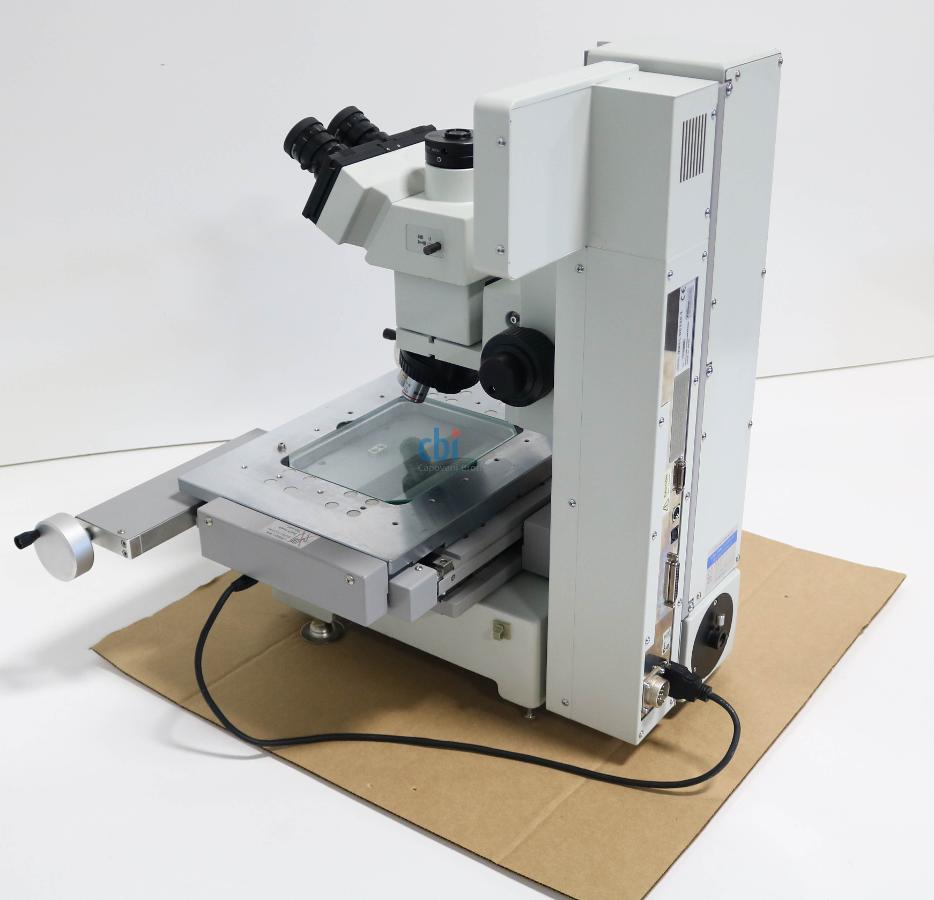

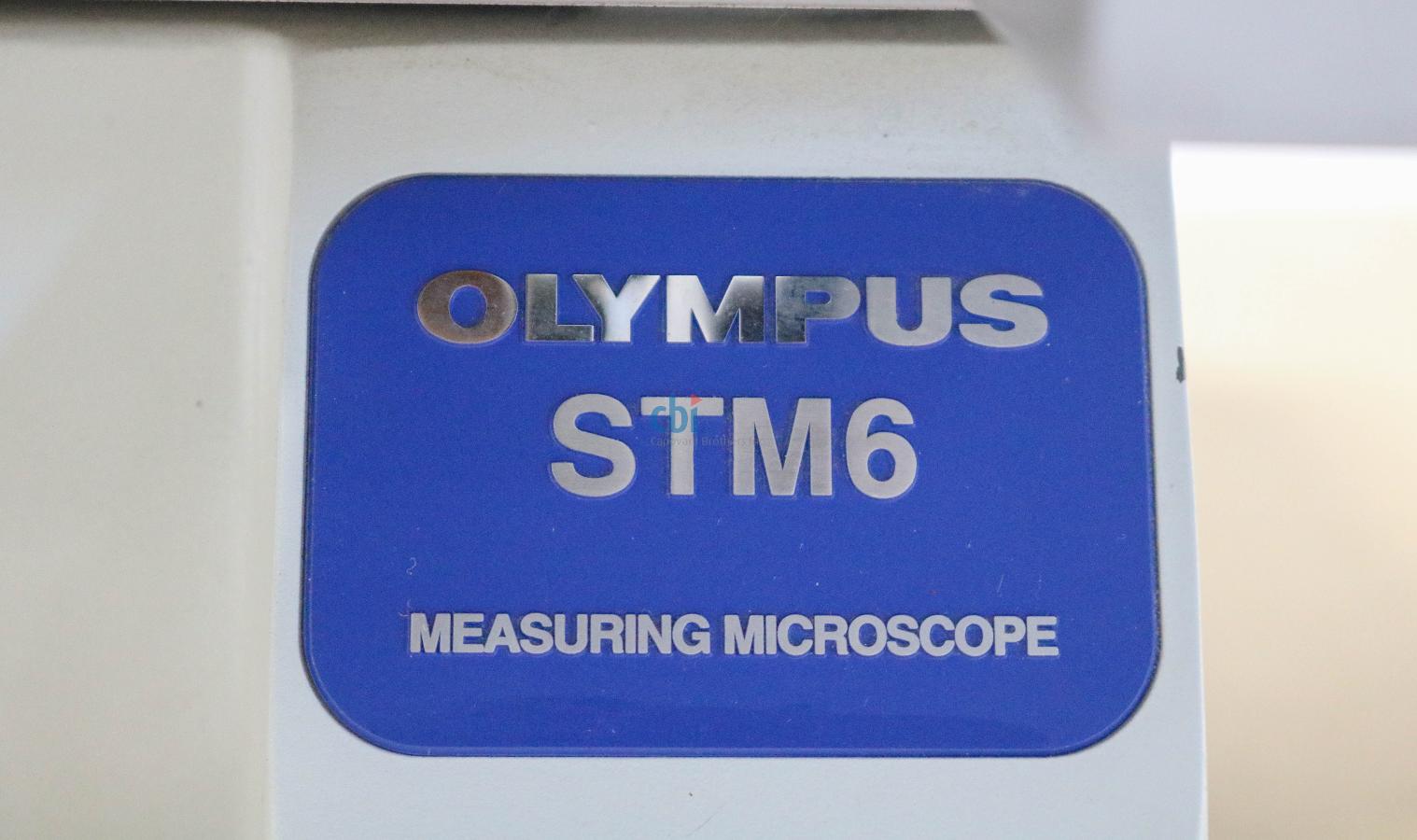

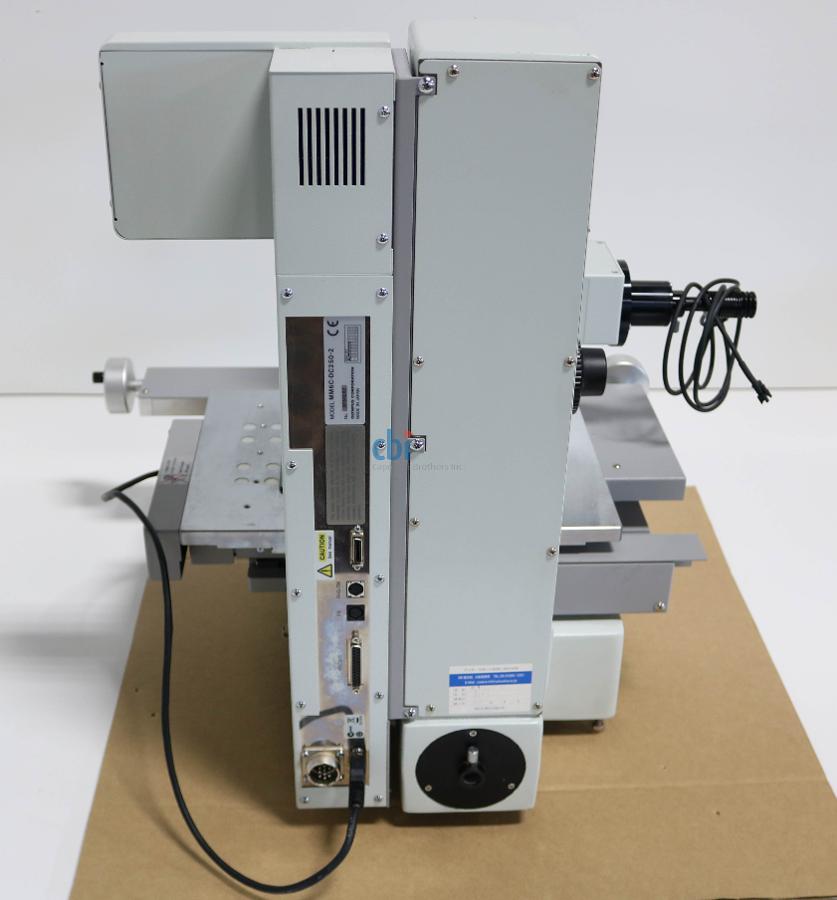

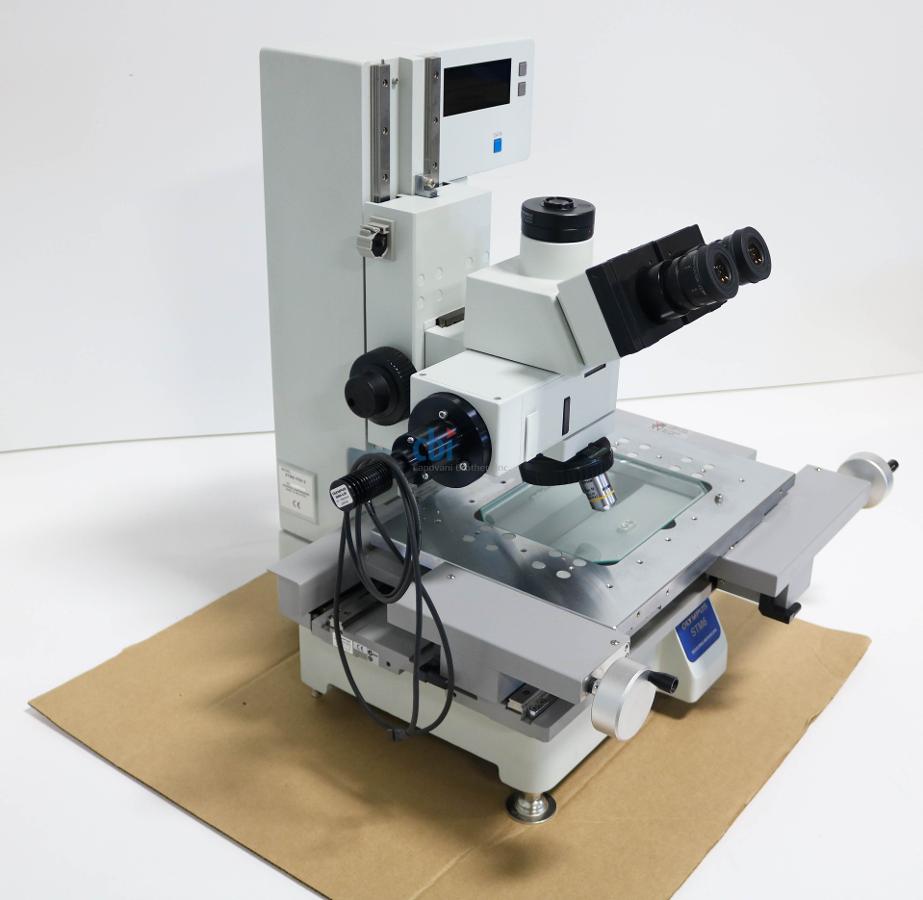

OLYMPUS TWO AXIS MEASURING MICROSCOPE 150MM X 100MM 0.5 MICRON

Olympus Measuring Microscope

OLYMPUS TWO AXIS MEASURING MICROSCOPE 150MM X 100MM 0.5 MICRON
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Olympus

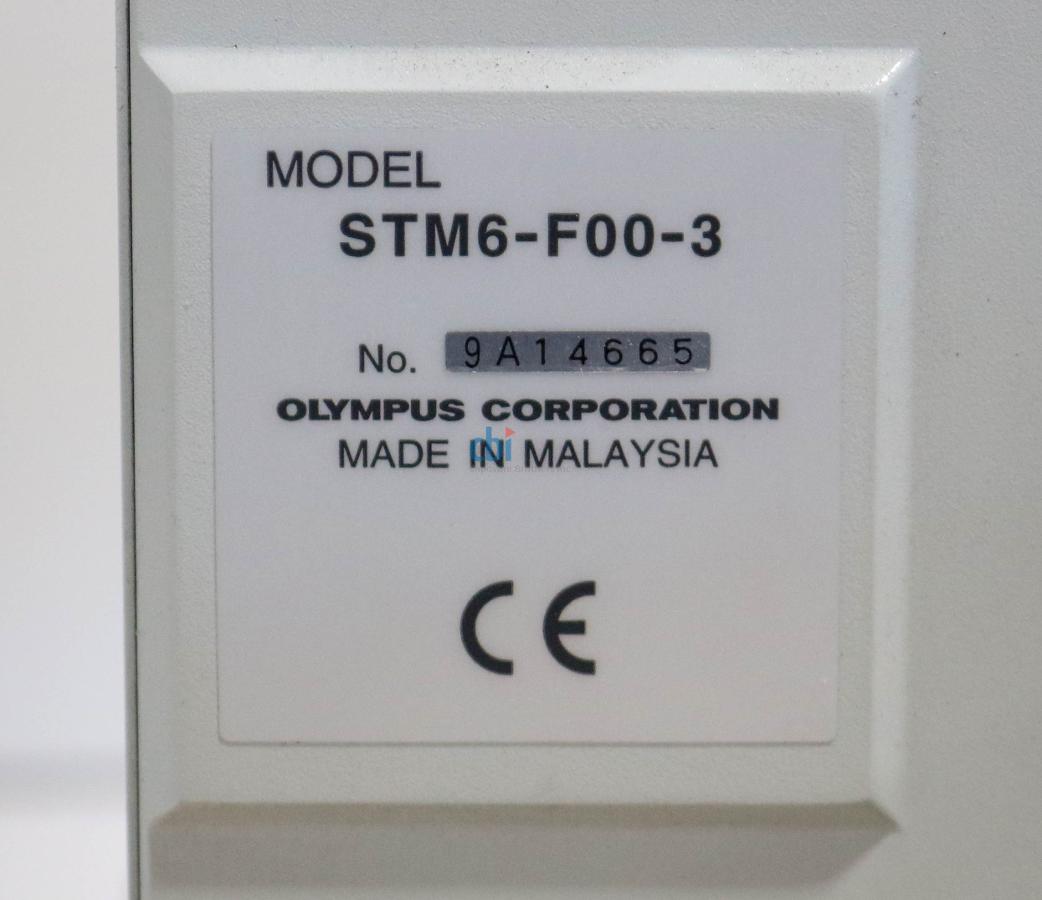

Model STM6-F00-3
Microscope Configuration Brightfield
Illumination Type Reflected Light
Binocular Angle 45°
Eyepieces
  Model MM6-OCC 10x/22
  Magnification 10 X
  Field Number 22 mm
  Focusing YES
Trinocular/Phototube Provided YES
Magnification Changer None
Multiple Objectives Models

MPlan N 5X/0.10 /-/FN22

MPlan N 10X/0.25 /-/FN22

Infinity Corrected Objectives YES
Power Supply Included YES
Stage Type Coaxial X-Y
X-Y-Z Stage Travel X: 150  mm  (5.906 in)     Y : 100  mm  (3.937 in)
Digital Readout System YES
Camera
  Type None
Other Information

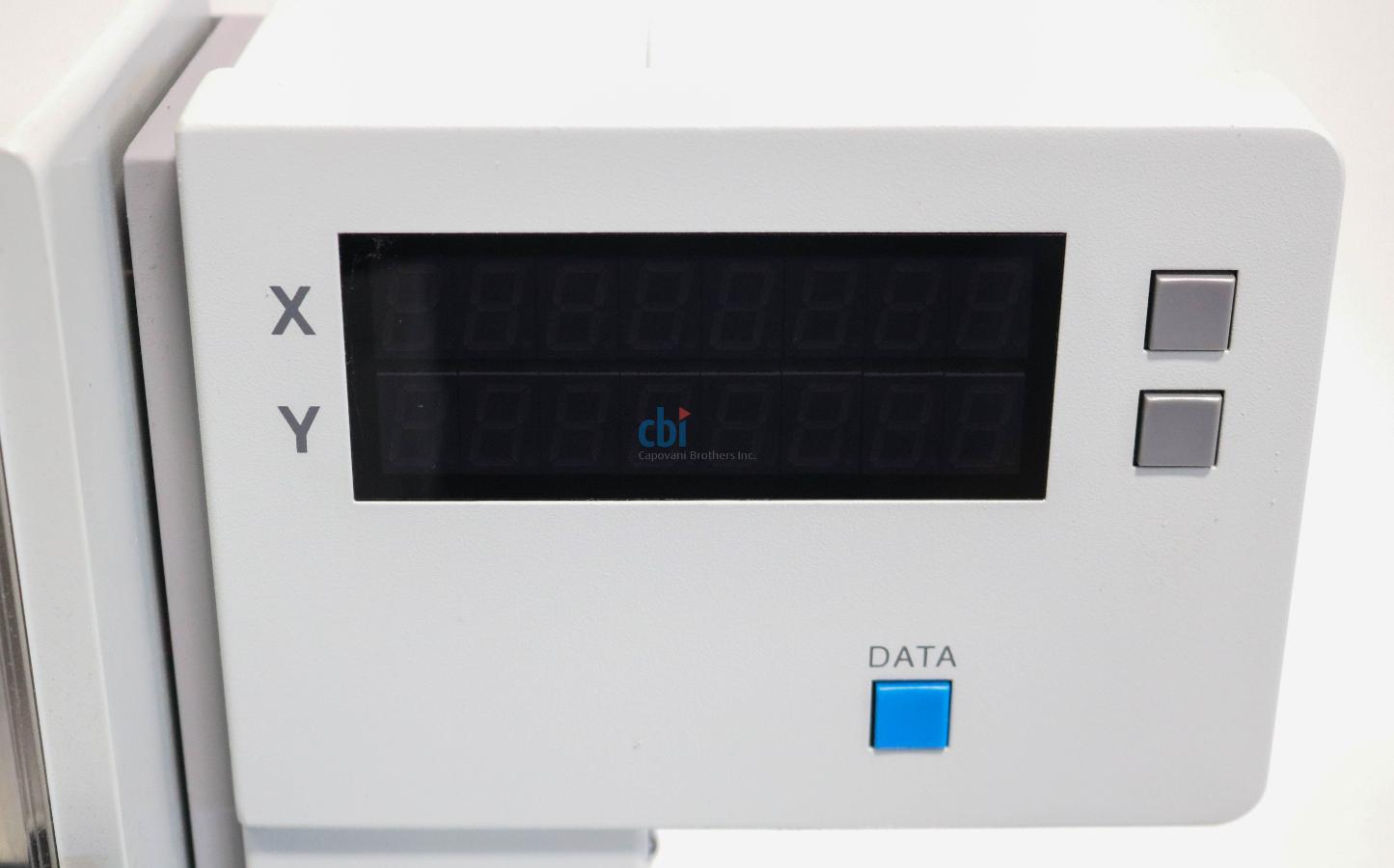

MM6C-DC250-2 -- Two axis counter box, 0.5 micron accuracy

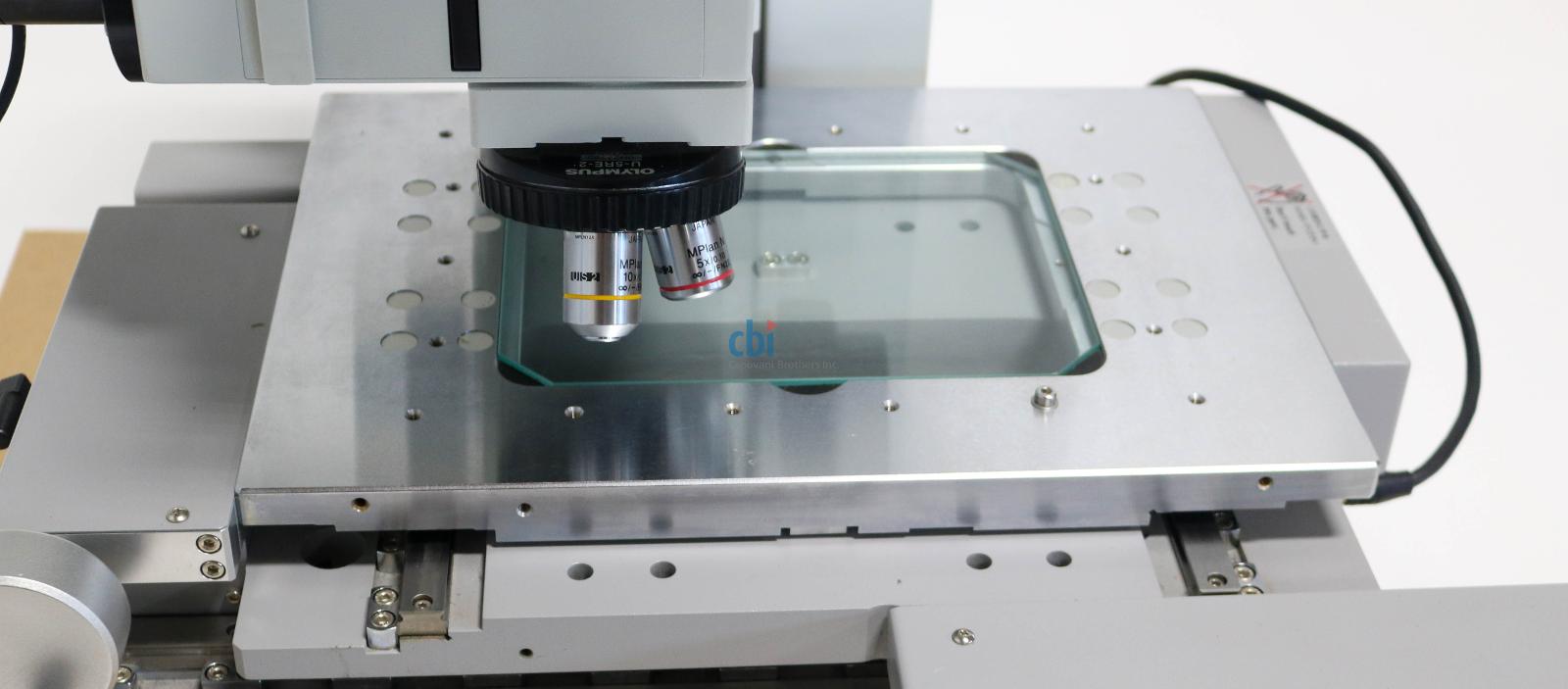

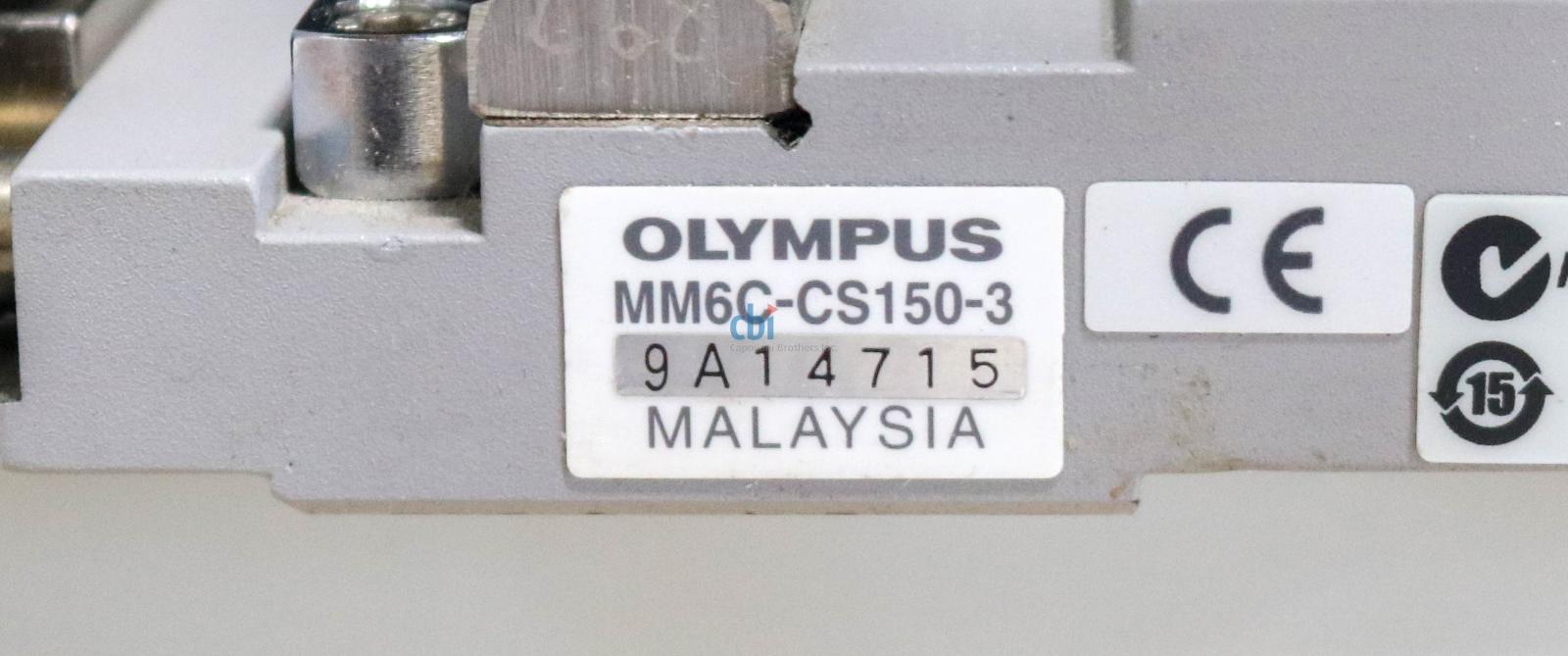

MM6C-CS150-3 XY Stage, 150mm x 100mm travel.

U-5RE-2 five place nosepiece

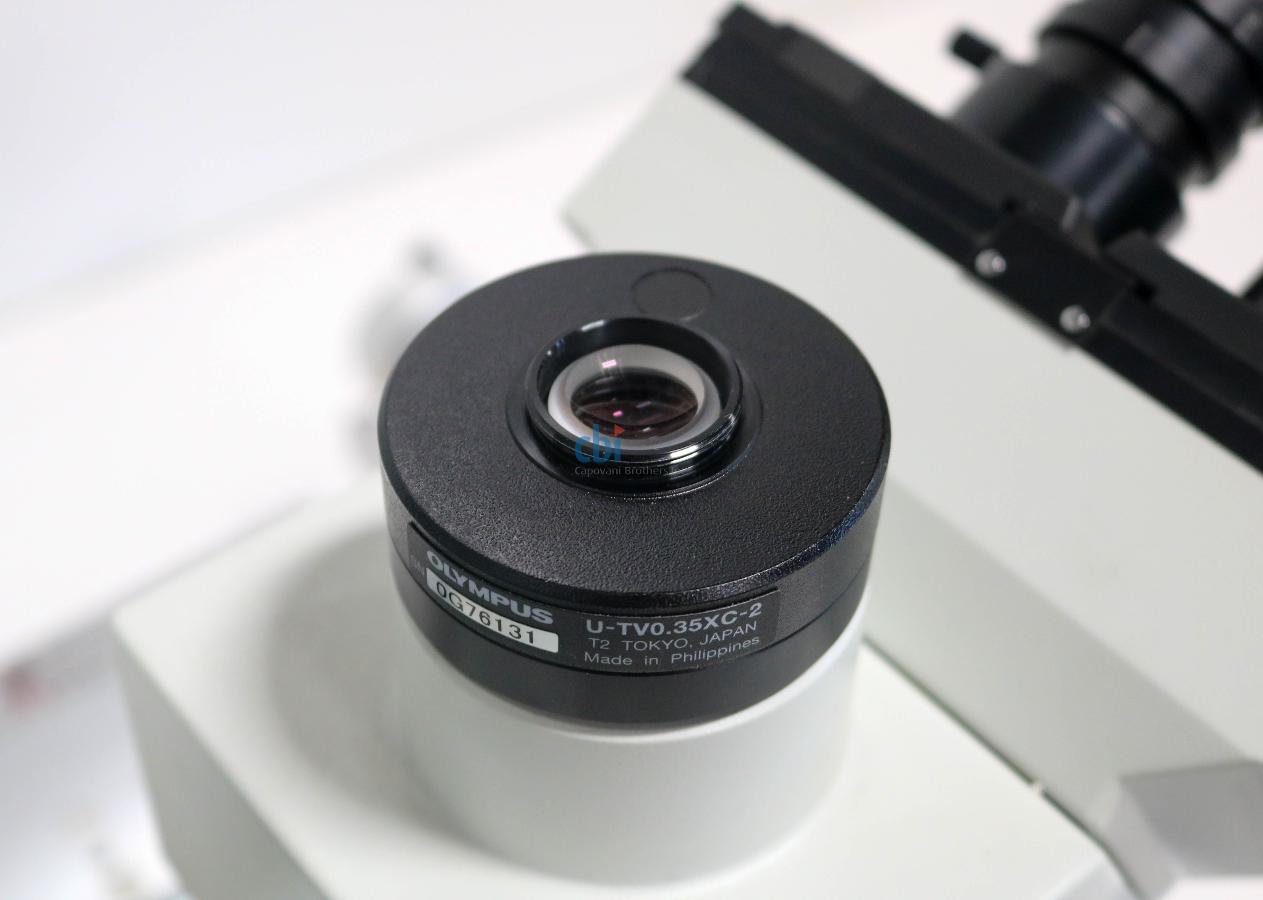

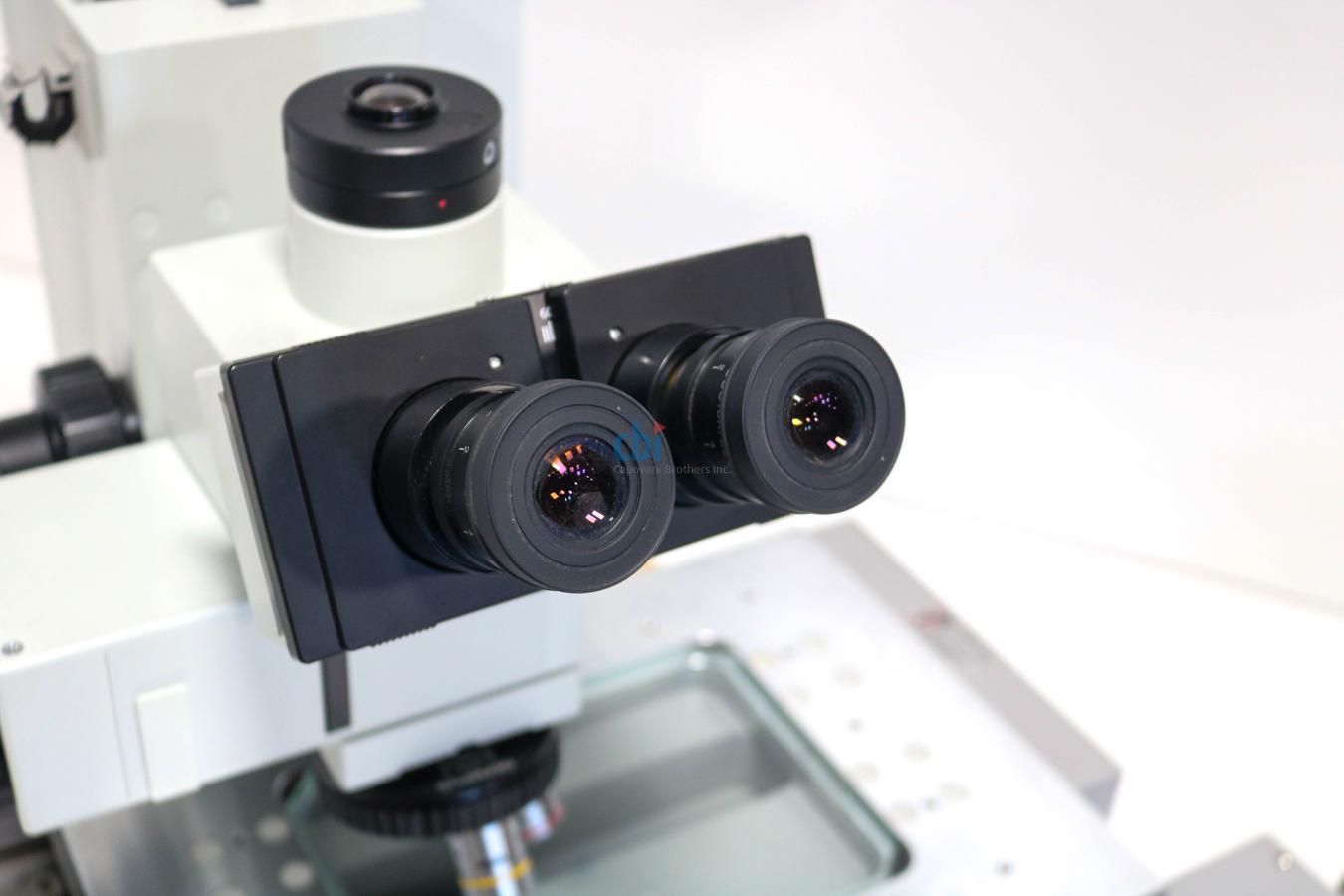

MM6-ETR-1-5 Erect image trinocular

MM6C-KMAS -- Reflected light illuminator for brightfield and DIC (no polarizer or  analyzer included)

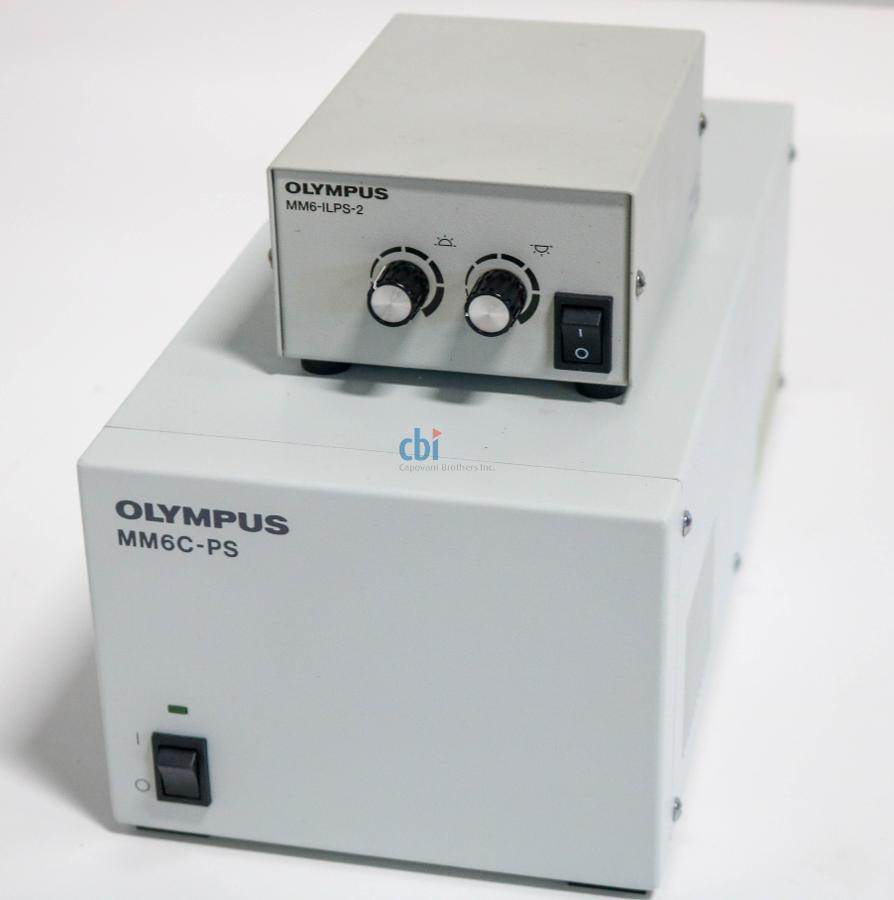

MM6-ILPS-2 -- Light source power supply

MM6-ILW -- Light source

MM6C-PS-2 -- System power supply

MM6C-VI -- Isolators (3)



Extended Description  Details at Olympus STM6 Measuring Microscope.pdf
CE Marked YES
Exterior Dimensions
  Width 22.717  in  (57.7 cm)
  Depth 16.906  in  (42.9 cm)
  Height 23.307  in  (59.2 cm)
