Unit Price |
Unstated |
Number of Units |
1 |

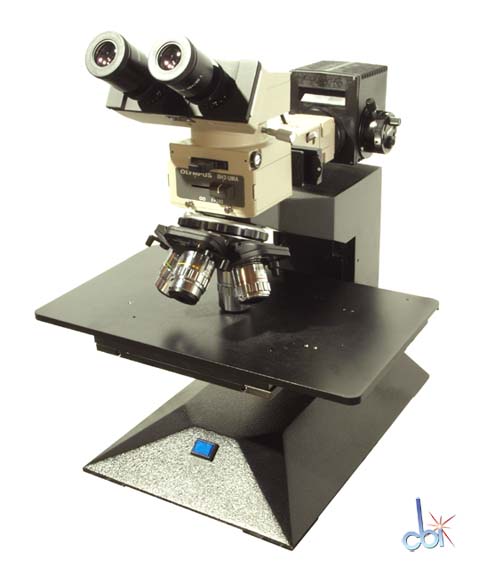

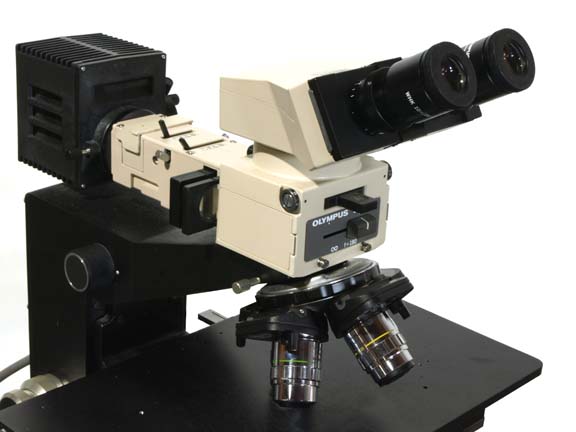

Manufacturer | Olympus |
Model | BH2-UMA |
Microscope Configuration | Brightfield, Darkfield & DIC |
Illumination Type | Reflected Light |
Binocular Angle | 45° |
Eyepieces |  |
Model | WHK 10x/20L |
Magnification | 10 X |
Field Number | 20 mm |
Focusing | YES |

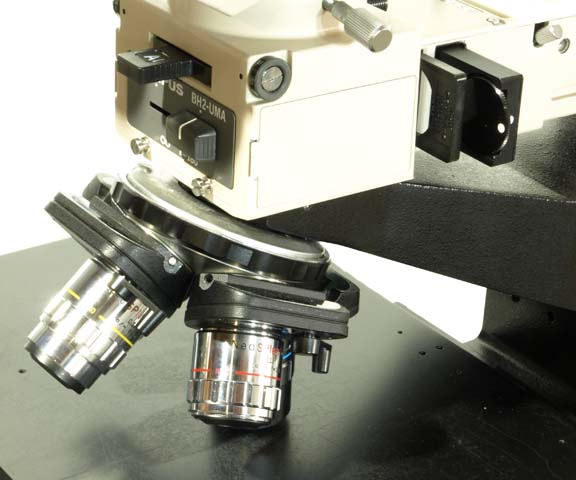

Multiple Objectives Models | Objectives NEO SPLAN 5 NIC 0.13 F= 180 NEO SPLAN 10 NIC 0.25 F= 180 NEO SPLAN 20 NIC 0.40 F= 180 NEO SPLAN 50 NIC 0.70 F= 180 Nomarski prisms UPO/NIC Polorizing/DIC Slider
|
Infinity Corrected Objectives | YES |
Polarizer | YES |
Stage Type | Coaxial X-Y |
Stage Area | Length: 203 mm (7.992 in)
Width: 343.0 mm (13.504 in)
|
X-Y-Z Stage Travel | X: 152 mm (5.984 in)
Y : 127 mm (5.000 in)
|
Power Requirements | 115 V
|
Exterior Dimensions |  |
Width | 13.500 in (34.3 cm) |
Depth | 19.000 in (48.3 cm) |
Height | 18.000 in (45.7 cm) |
Weight | 30 lb (14 kg) |
