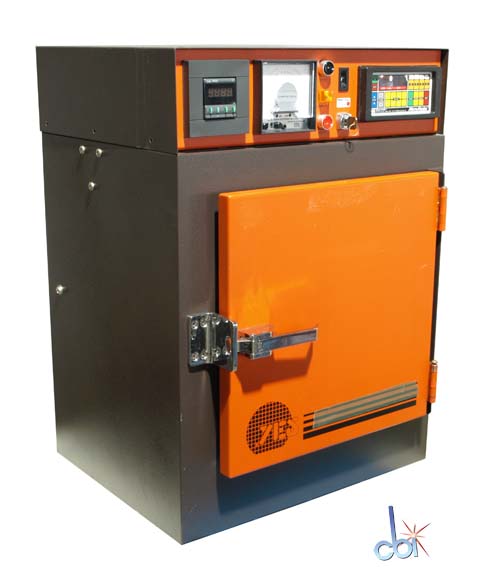

YIELD ENGINEERING VACUUM / BAKE OVEN 160ºC

Vacuum Bake/Vapor Prime Oven
Leybold Vacuum Pump Included

Pump shown in photos is representative.

YIELD ENGINEERING VACUUM / BAKE OVEN 160ºC
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer YES
Model YES 3 Dryer
Description Vacuum Bake Oven
Maximum Temperature 150  ºC  (302 ºF, 423 ºK)
Capacity/Volume Box 1.10  cu ft  (0.03 cu m)
Chamber Size
  Width 12.00  in  (30.48 cm)
  Depth 12.00  in  (30.48 cm)
  Height 13.25  in  (33.66 cm)

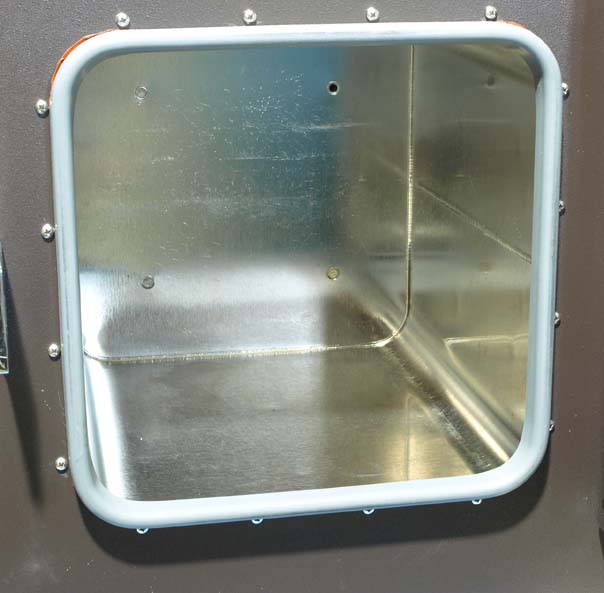

Chamber Characteristics
  Chamber Construction Electropolished 316 SS, Internal Welds
  Maximum Number of Shelves 0
External Cooling Air Cooled
Accessories

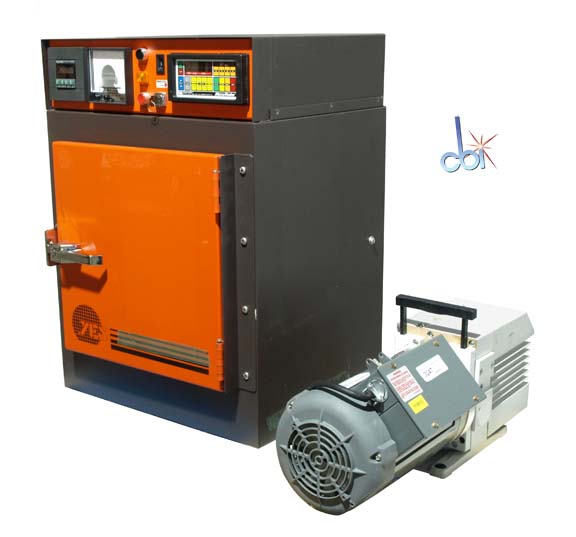

Leybold Vacuum Pump (photo is representative)

Other Information

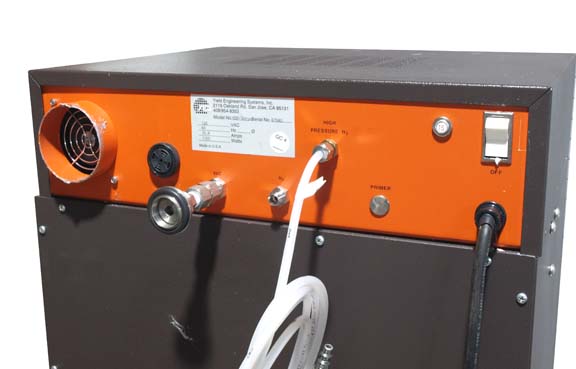

Preheated N2,(process gas)Inlet
Cold N2, Inlet
Six 200 Watt Heaters

Power Requirements 115 V     11.3 A     60 Hz     1 Phase
Exterior Dimensions
  Width 23.750  in  (60.3 cm)
  Depth 19.500  in  (49.5 cm)
  Height 27.500  in  (69.9 cm)
