Unit Price |
Unstated |
Number of Units |
2 |
Manufacturer | Olympus |
Model | MX50-AF |
Microscope Configuration | Brightfield & Darkfield |
Illumination Type | Reflected Light |
Binocular Angle | Variable |
Eyepieces |  |
Model | SWH |
Magnification | 10 X |
Field Number | 26 mm |
Focusing | YES |
Trinocular/Phototube Provided | YES |
Motorized Nosepiece | YES |

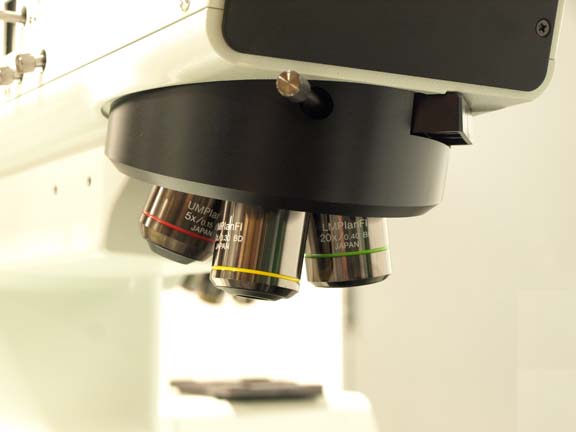

Multiple Objectives Models | UMPlan FI 5x/0.15 BD UMPlan FI 10/0.30 BD LMPlan FI 20x/0.40 BD |
Infinity Corrected Objectives | YES |
Stage Type | Coaxial X-Y |
X-Y-Z Stage Travel | X: 203 mm (7.992 in)
Y : 203 mm (7.992 in)
|
Accessories | Either U-SPT: Single port tube with U-PMTVC: Bayonet video port OR U-TV1X-2: Direct image video port with U-CMAD3: C mount adaptor MX-LSH: Halogen lamp housing |
Other Information | Five position nosepiece Power Requirements: 100-120/200-240 VAC, 2.0/1.0 A, 50/60 Hz, Single phase |
CE Marked | YES |
Exterior Dimensions |  |
Width | 26.000 in (66.0 cm) |
Depth | 11.000 in (27.9 cm) |
Height | 24.250 in (61.6 cm) |
Weight | 73 lb (33 kg) |
