Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 143272

Offered 1 Offered at $ 10,950.00

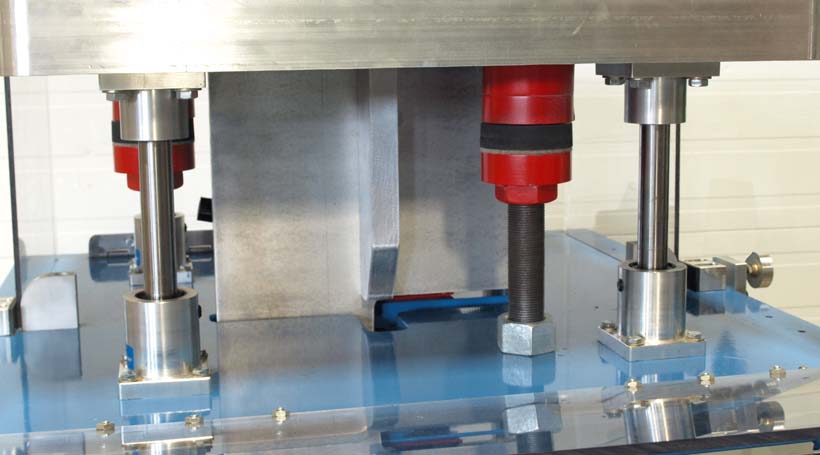

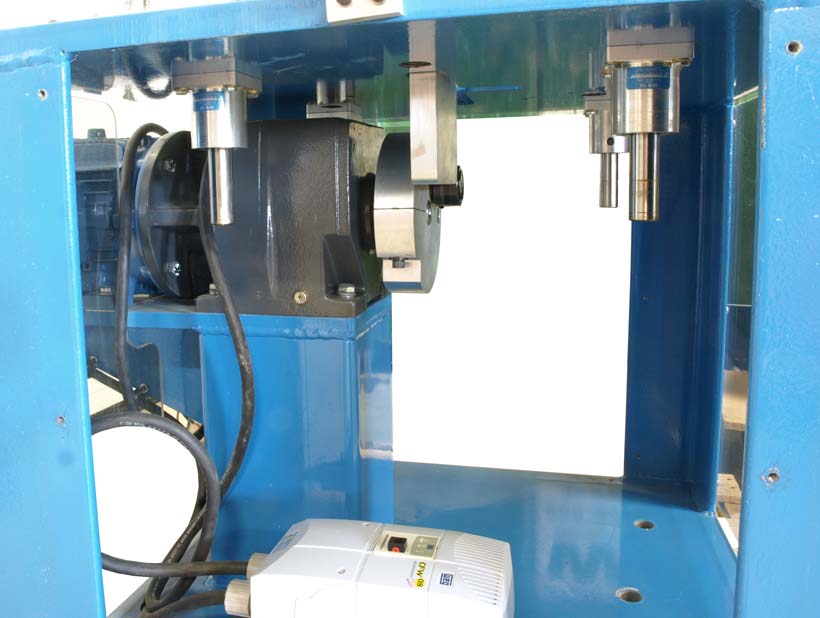

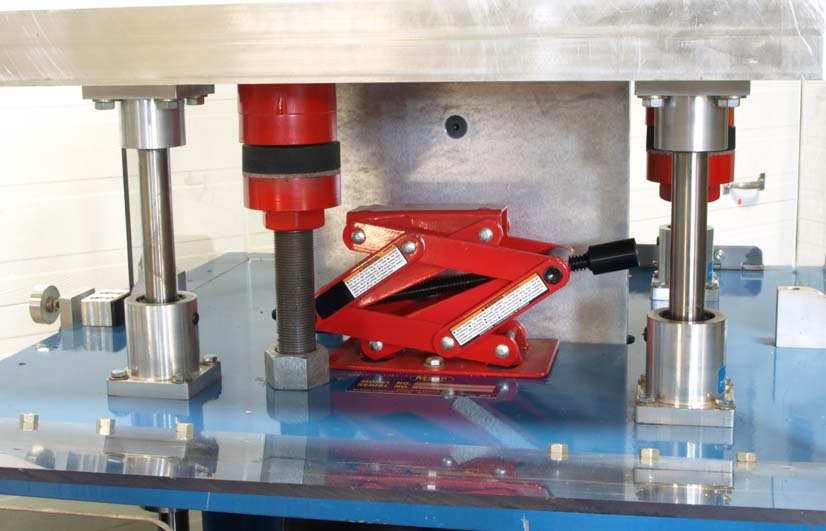

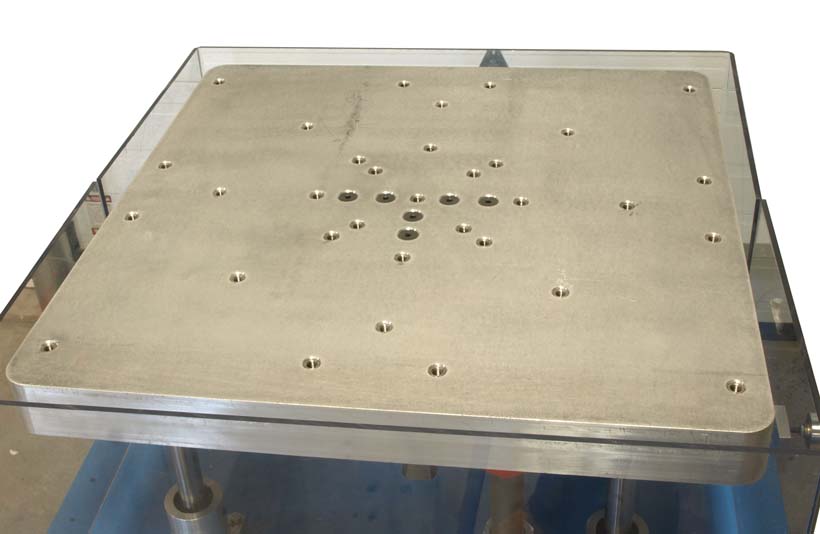

Bump Shaker

The M/RAD 2424(150)B Bump Tester has been designed to meet the Bump Test requirements of BS 2011, IEC 68-2-27 and IEC 68-2-29.
According to BS 2011, Part 2.1Eb: "The machine is intended to reproduce the effects of repetitive shocks likely to be experienced by components
and equipment during transportation or when installed in various classes of vehicles."

M/RAD has been acquired by Vibration and Shock Technologies, LLC. (VST, LLC.)

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 10,950.00
Number of Units 1
Manufacturer M Rad
Model 2424(150)B
Other Information

Maximum payload: 150 Lbs.
Digital Bump Counter with pre-set:

  • Frequency of bump impluse: 1 - 2 impacts/seconds
  • Impact pulse duration: 6 - 16 ms
  • Impact pulse type: half-sine
  • Maximum velocity change: 60 in/sec
Power Requirements 240 V     30.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 30.000  in  (76.2 cm)
  Depth 42.000  in  (106.7 cm)
  Height 39.000  in  (99.1 cm)
Weight 1,164  lb  (528 kg)
