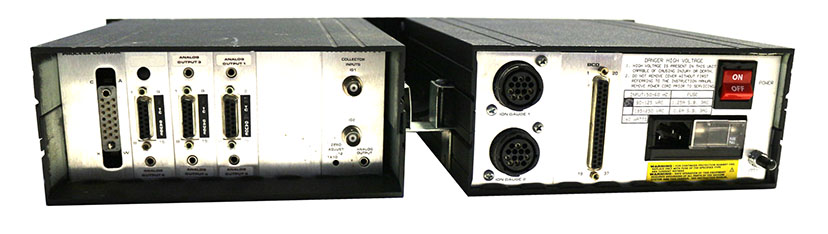

Item ID: 179528 1 Offered at $ 1,999.00 GRANVILLE PHILLIPS DUAL ION / FIVE THERMOCOUPLE GAUGE CONTROLLER Dual Ion/ Five Thermocouple Gauge ControllerGranville Phillips 307109 ... other images Location: Scotia, New York Unit Price $ 1,999.00 Number of Units 1 Manufacturer Granville Phil Model 307109 Description Dual Ion/Five Thermocouple Gauge Controller/Process Gauge Types Controlled Ion; Thermocouple Cables Included No Accessories Cable between controller and the power supply included.Gauges and gauge cables are not included, inquire, please.Ion gauge cables see items 6799, 179524, 209733 TC gauge compatible types: G-P 270006, Comptech TVT-6000, or Teledyne-Hastings DV-6M, DV-6R, DV-36, DV-20. Other Information Sequential Ion Gauge readout 1E-1 to 1E-9 Torr Thermocouple bar graph readout 1E-3 to 1 Torr 6 relay process control BCD interface for gauge pressure, status and control Analog pressure output Dimensions and weight:Control Unit Width 241 mm 9.5 in Height 89 mm (3.5 in.) Depth 356 mm (14 in.) includes 76 mm (3 in.) for connectors and cables Weight 3 kg (6.5 lb.) Power Unit Width 203 mm (8 in.) Height 89 mm (3.5 in.) Depth 330 mm (13 in.) includes 89 mm (3.5 in.) for connectors and cables Weight 4 kg (8.5 lb.) Power Requirements 115/ 230 V 1.0 A 0.5 A(2) 50/60 Hz 1 Phase OFFERED BY: (click name below to visit its website directly)Capovani Brothers Inc. Scotia , New York 1.518.346.8347 Shipping & Handling:Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions. Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578). Payment:Minimum order of $50 required. We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms. All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms. All other sales, including foreign sales, are prepayment only. MasterCard, VISA, Discover and AMEX are accepted at sellers discretion. Domestic Terms and Conditions International Terms and Conditions Deal directly with Owner: Capovani Brothers Inc. of Scotia, New York ACCEPT Offered TermsMake COUNTER-OFFERSend an INQUIRY
Dual Ion/ Five Thermocouple Gauge ControllerGranville Phillips 307109
Cable between controller and the power supply included.Gauges and gauge cables are not included, inquire, please.Ion gauge cables see items 6799, 179524, 209733
TC gauge compatible types: G-P 270006, Comptech TVT-6000, or Teledyne-Hastings DV-6M, DV-6R, DV-36, DV-20.
Dimensions and weight:Control Unit
Power Unit
