in Tube Furnaces
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 181761

Offered 1 Offered at Best Price

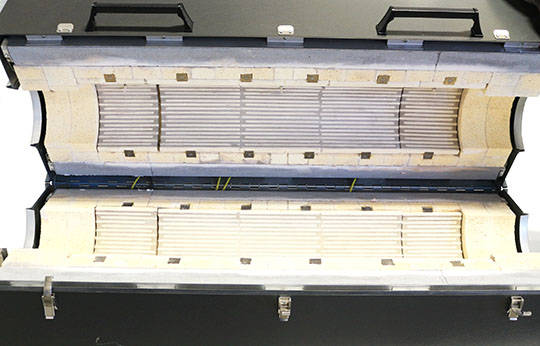

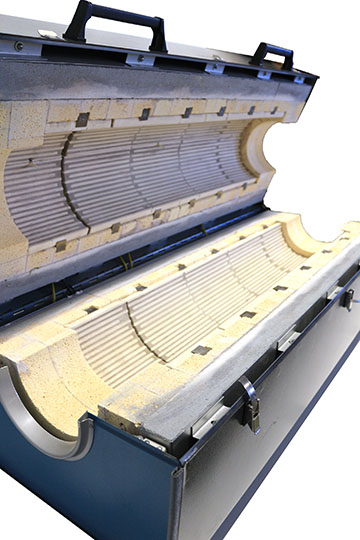

Split Hinge Tube Furnace w/Programmable Controls

Optional Single End Quartz Retort Available, See details below.

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Lindberg
Model 54877
Maximum Temperature 1,200  ºC  (2,192 ºF, 1,473 ºK)
Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES
  Controller Manufacturer/Model Lindberg 58434-B
  Number of Control Zones 3
External Cooling Air Cooled
Tube Dimensions Diameter: 7.00  in  (17.78 cm)     Length: 36.00  in  (91.44 cm)
Number of Gas Inputs 0

Optional Quartz retort available.  7" diameter x 36" long, open on one end; inquire on pricing.

Other Information

14280 watts

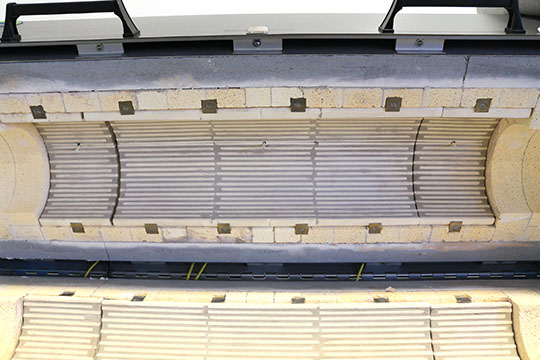

Hot zone: 24"
Refractory diameter: 7"

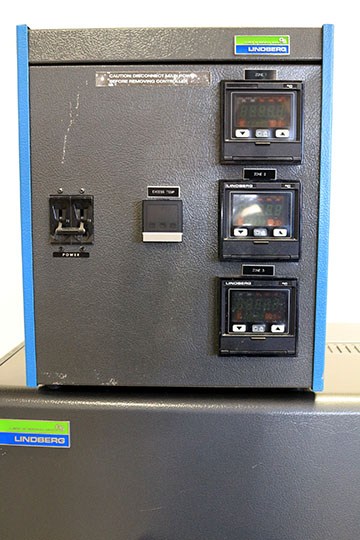

Eurotherm 818S programmable controllers (3)
Eurotherm  93 Temperature limit controller (1)

Power Requirements 240 V     60 Hz     1 Phase
Condition Excellent
Exterior Dimensions
  Width 22.000  in  (55.9 cm)
  Depth 37.000  in  (94.0 cm)
  Height 20.000  in  (50.8 cm)
Weight 510  lb  (231 kg)
