Item ID: 186357

**1 Offered at Best Price**

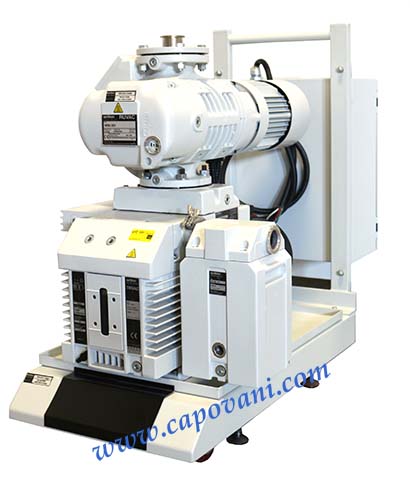

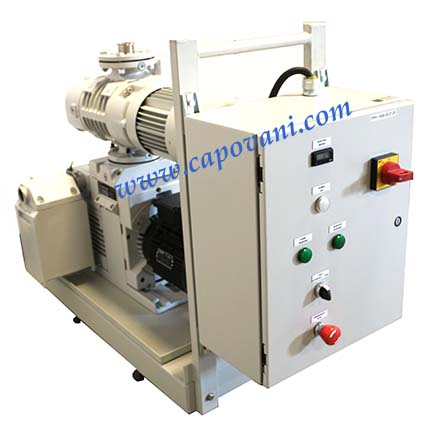

OERLIKON LEYBOLD RBS RUTA ROOTS PUMPING SYSTEM 140 CFM

RBS-B Roots Pumping System

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Oerlikon Leybold
Model	WSU251/D40B
Pumping Speed	140.0 CFM (3,956.0 l/m)
Ultimate Pressure	0.10E-3(Eⁿ) torr (0.13E-3 mbar)
Inlet Flange	ASA 76.2 mm (3.000 in)
Exhaust Flange	KF 40.0 mm (1.575 in)
Backing Pump Model	D40B
Roots Pump Model	WSU251
Motor Horsepower	3.0 HP

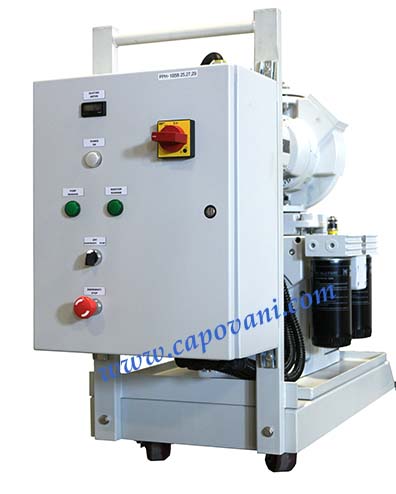

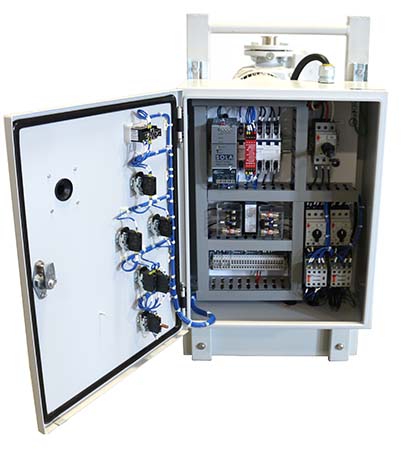

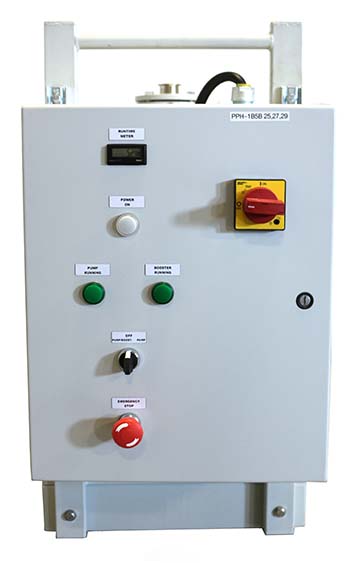

Accessories	Direct mounted on roll around platform. Custom controll box -- see detailed photos 527 hours
Other Information	Displacement: 53 CFM Oil capacity: 2.70 Qts Normal rotation speed: 1800 RPM Power Input: 200-240/380-480, 12A/5.2A
Extended Description	Details at Oerlikon Leybold WAU251 D40B_WSU251 D40B.pdf
Power Requirements	240/480 V 50/60 Hz 3 Phase
Exterior Dimensions
Width	24.000 in (61.0 cm)
Depth	34.000 in (86.4 cm)
Height	39.000 in (99.1 cm)
Weight	568 lb (258 kg)
