Item ID: 189203

**1 Offered at Best Price**

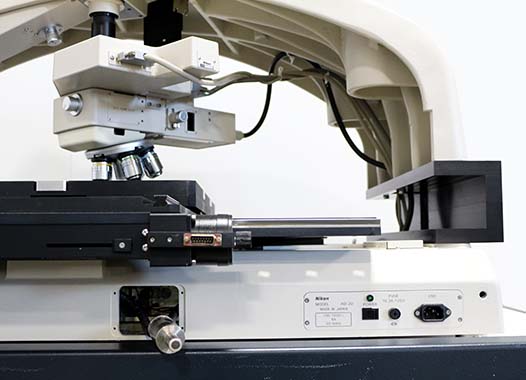

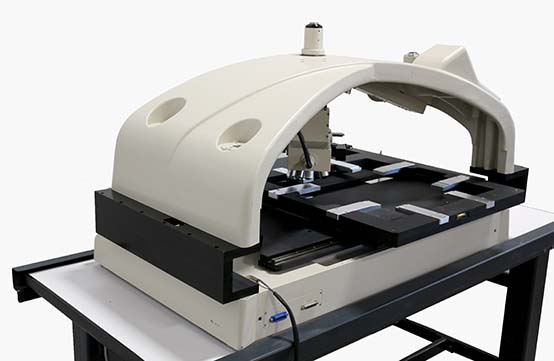

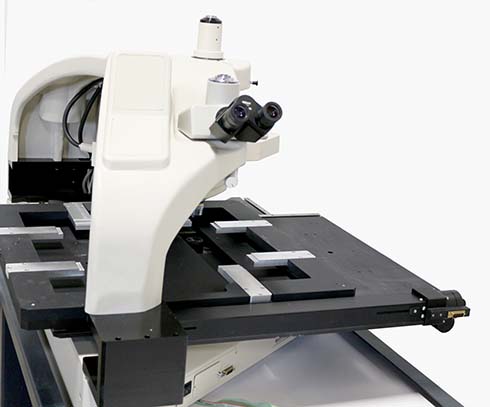

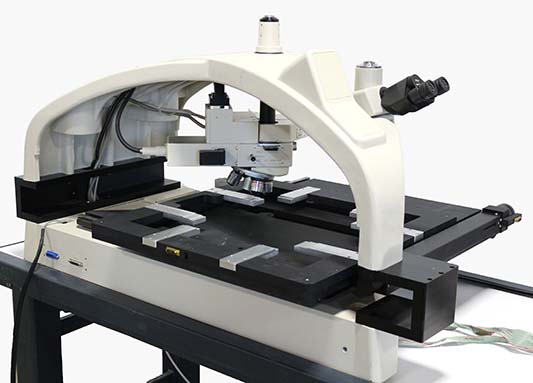

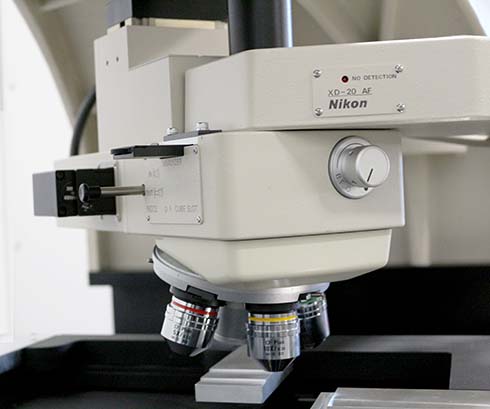

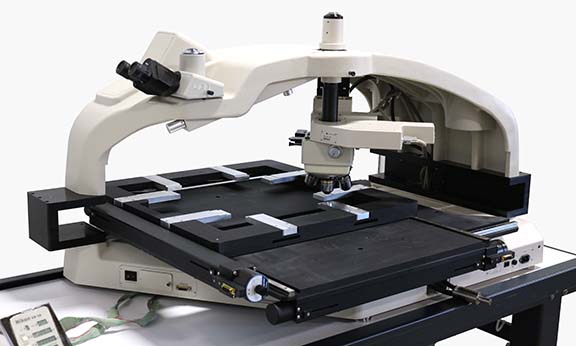

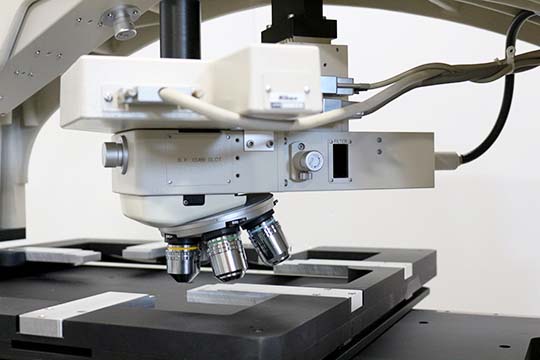

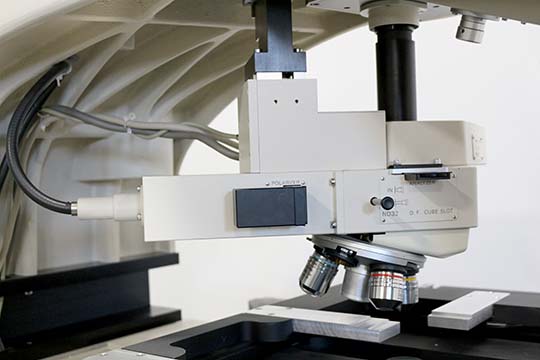

NIKON LARGE SUBSTRATE INSPECTION MICROSOPE

Brightfield, Darkfield, POL
Reflected and Transmitted Light

N.B. The Kinetic Systems optical table that the Nikon Microscope is on is not included. However, it is for sale. More information at Kinetic Systems 1201-04-11

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Nikon
Model	XD-20
Microscope Configuration	Brightfield, Darkfield, DIC & POL
Illumination Type	Reflected & Transmitted Light
Binocular Angle	45°

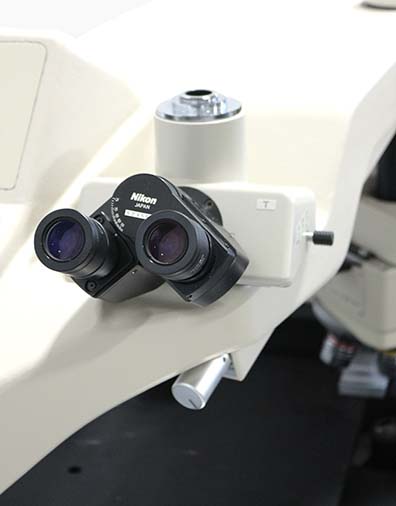

Eyepieces
Magnification	10 X
Field Number	22 mm
Trinocular/Phototube Provided	YES
Motorized Nosepiece	YES

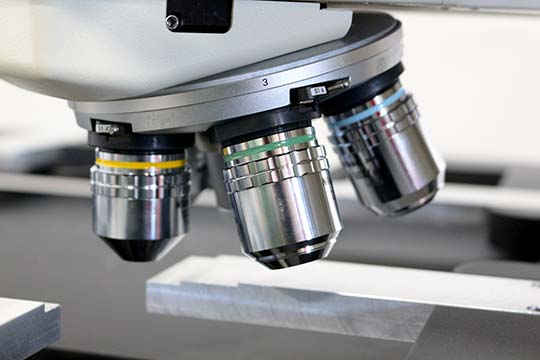

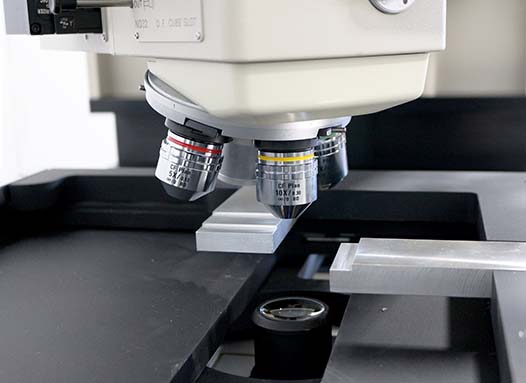

Multiple Objectives Models	CF Plan 05X/0.13 BD CF Plan 10X/0.30 BD CF Plan 20X/0.46 BD CF Plan 50X/0.30 BD There are nomarski prisms within the nose piece.
Infinity Corrected Objectives	YES
Polarizer	YES
Analyzer	YES
Stage Type	Coaxial X-Y
X-Y-Z Stage Travel	X: 470 mm (18.504 in) *Y :* 460 mm (18.110 in)
Camera
Type	None

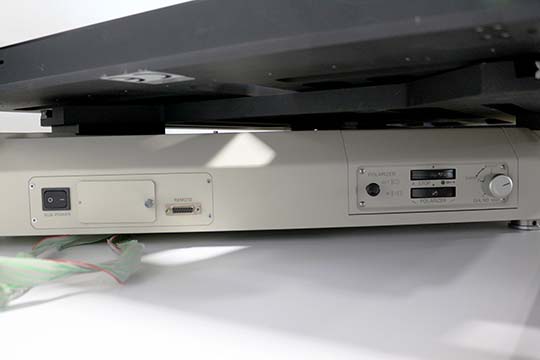

Accessories	Ludl XY motorized stage. Motorized polarizer
Power Requirements	110/120 V 5.0 A 50/60 Hz 1 Phase

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, Fax: 518.381.9578).

Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions

FULL DESCRIPTION of Item 189203
