Item ID: 239649

**1 Offered at Best Price**

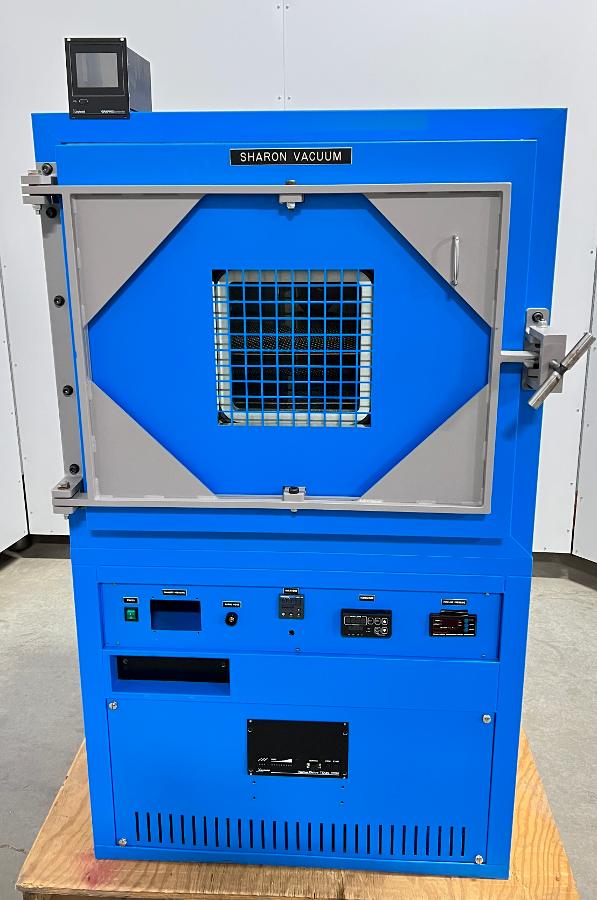

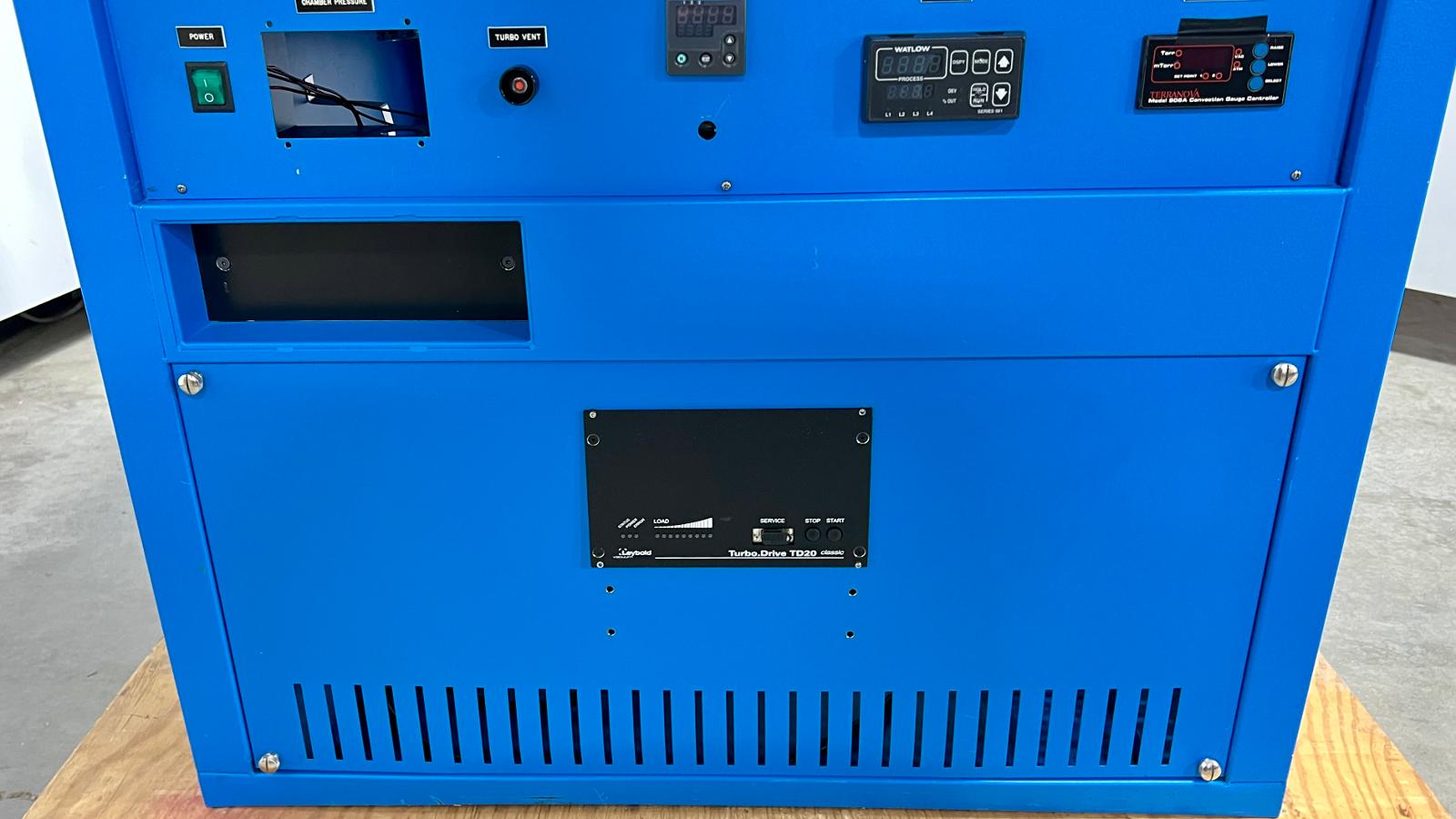

CASCADE TEK 9.3 CUFT HIGH VACUUM OVEN 200C

Turbo Pumped

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Cascade TEK
Model	SVO 9 Turbo
Maximum Temperature	200 ºC (392 ºF, 473 ºK)
Heat/Cool Controls
Control Type	Digital Setpoint
Overtemperature Protection	YES
Controller Manufacturer/Model	Watlow 981 Series
Capacity/Volume Box	9.30 cu ft (0.26 cu m)
Chamber Size
Width	28.00 in (71.12 cm)
Depth	24.00 in (60.96 cm)
Height	24.00 in (60.96 cm)

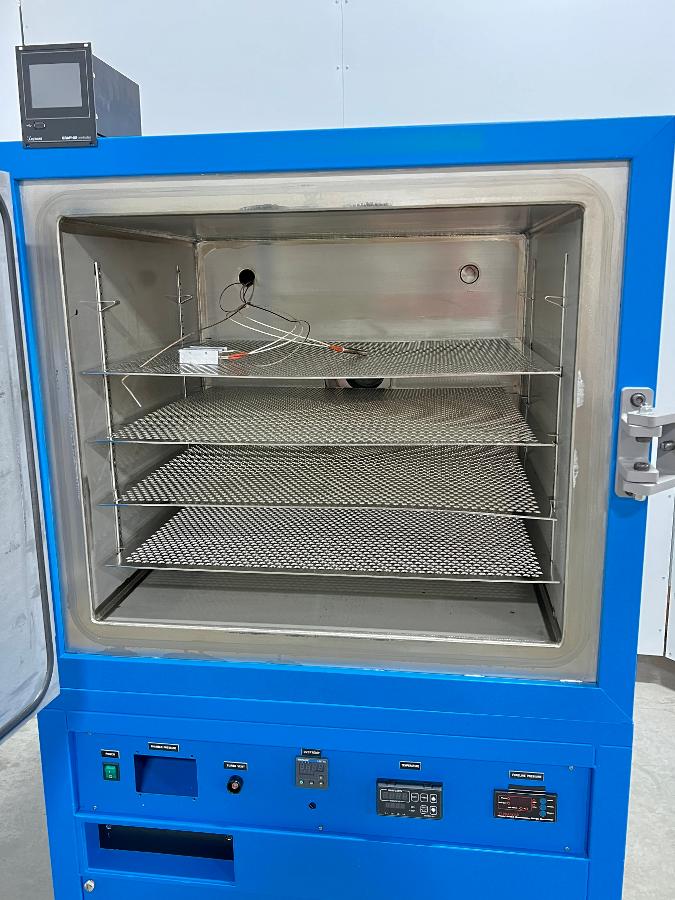

Chamber Characteristics
Chamber Construction	Stainless Steel

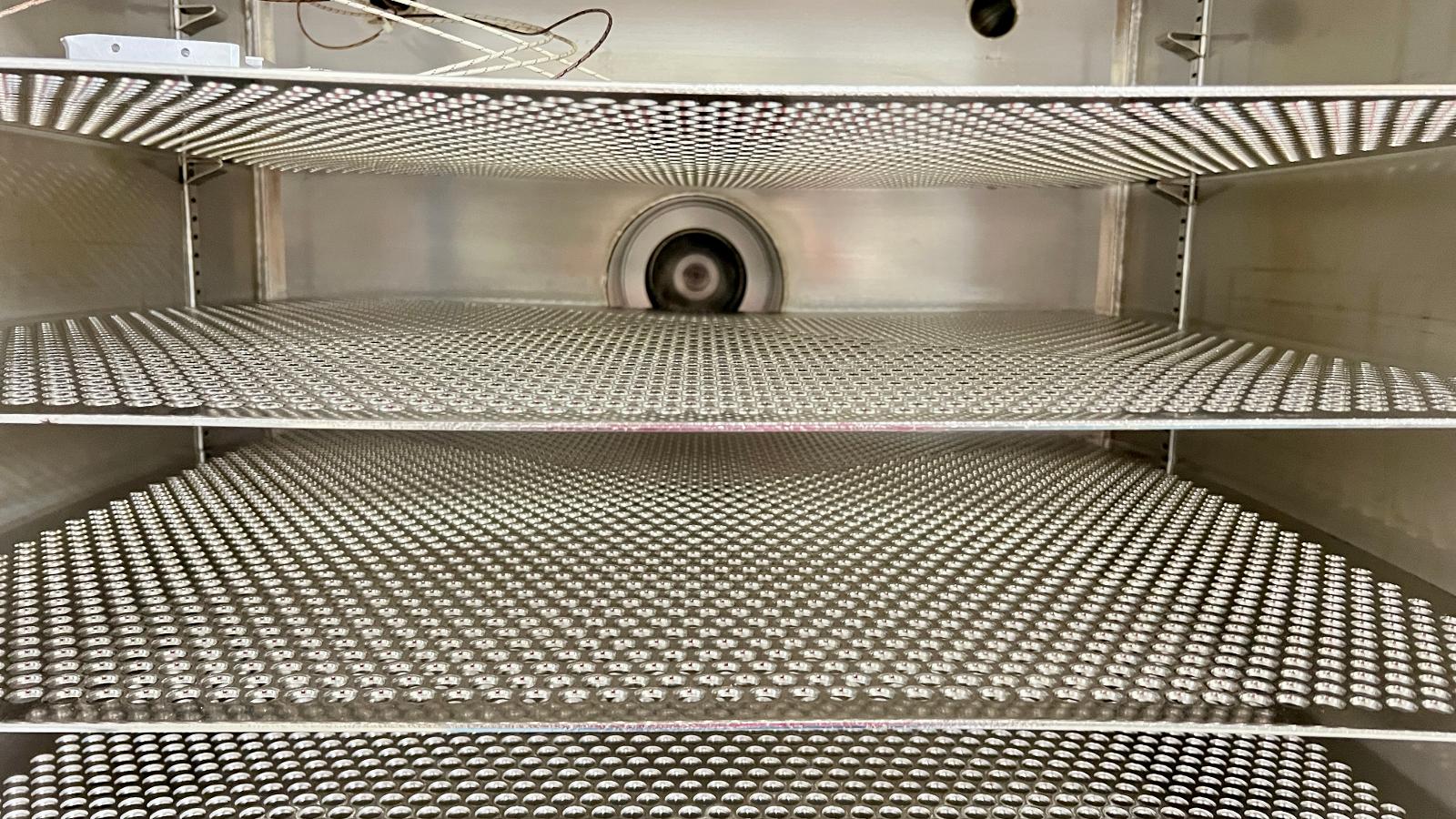

Maximum Number of Shelves	5
Number of Shelves Provided	4
Number and Size of Access Ports	1

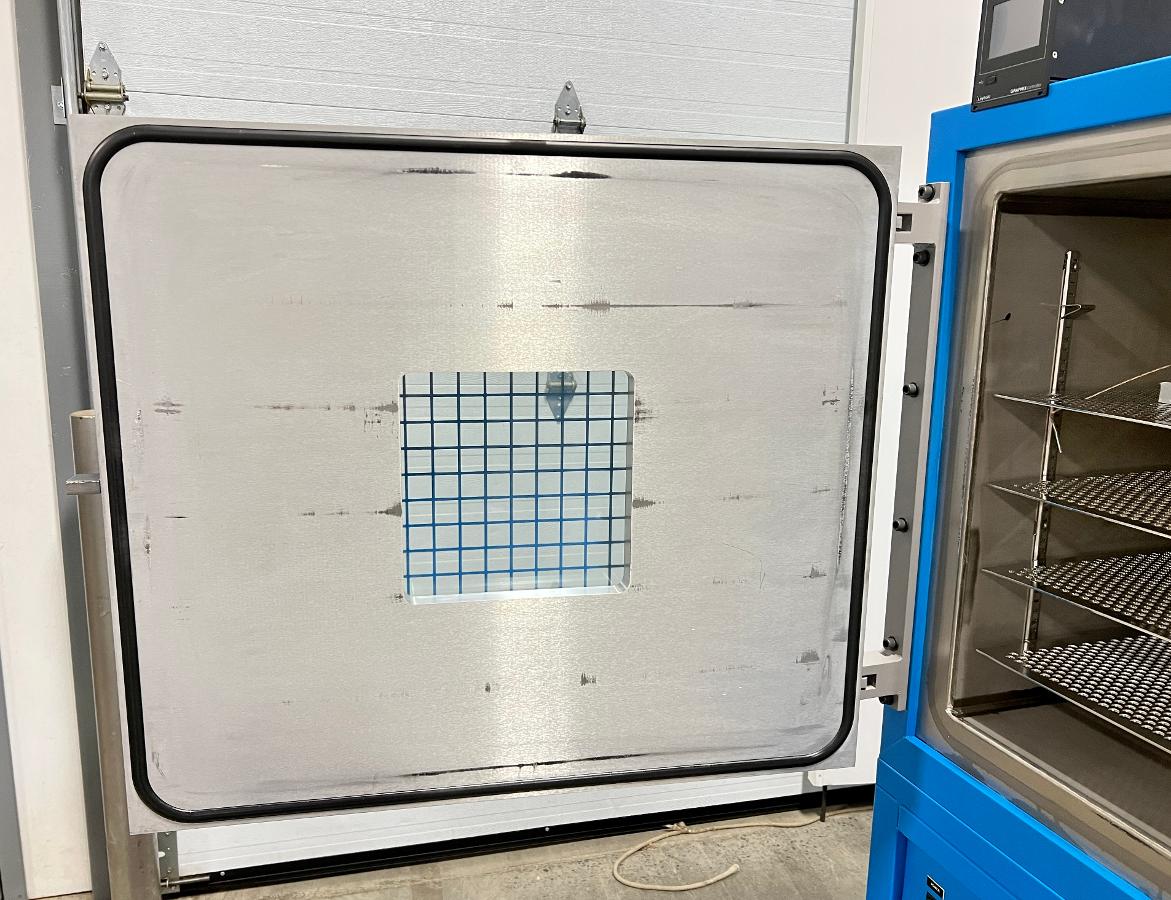

Viewing Window	YES
Number of Rack Positions	5
External Cooling	Air Cooled

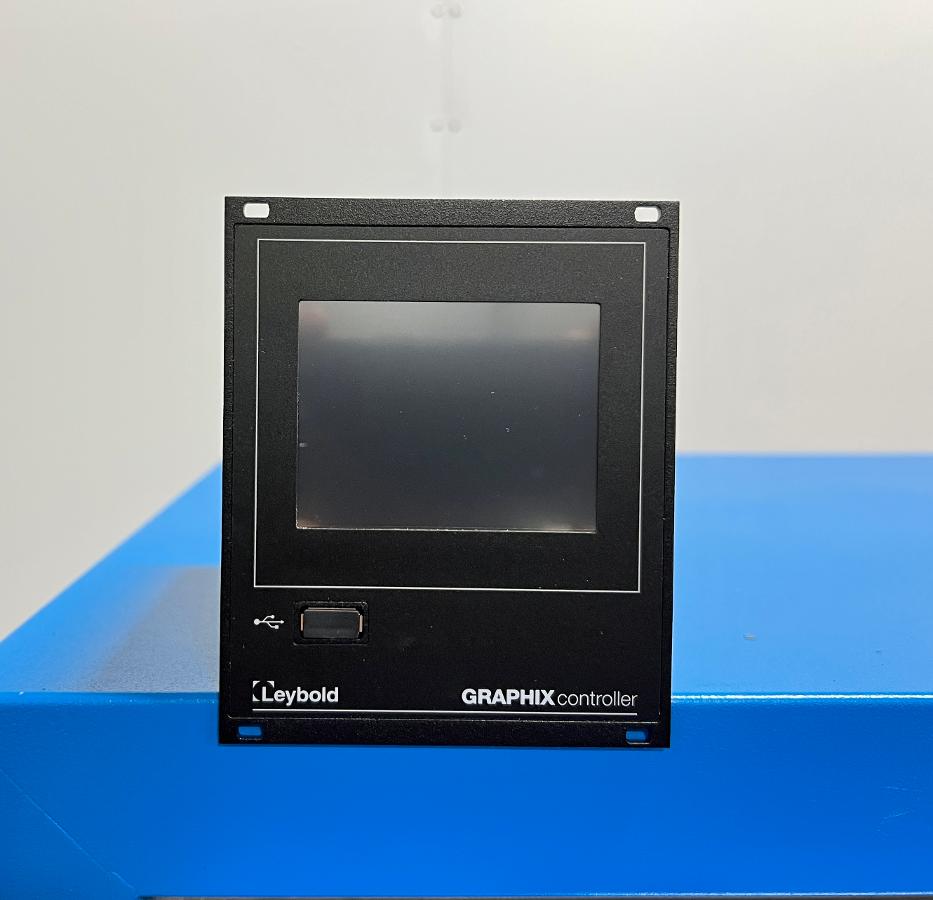

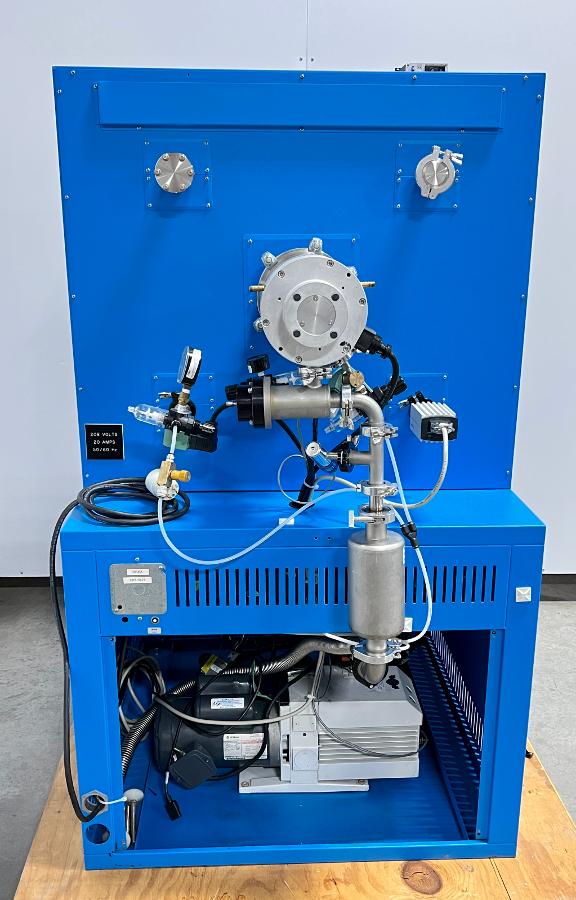

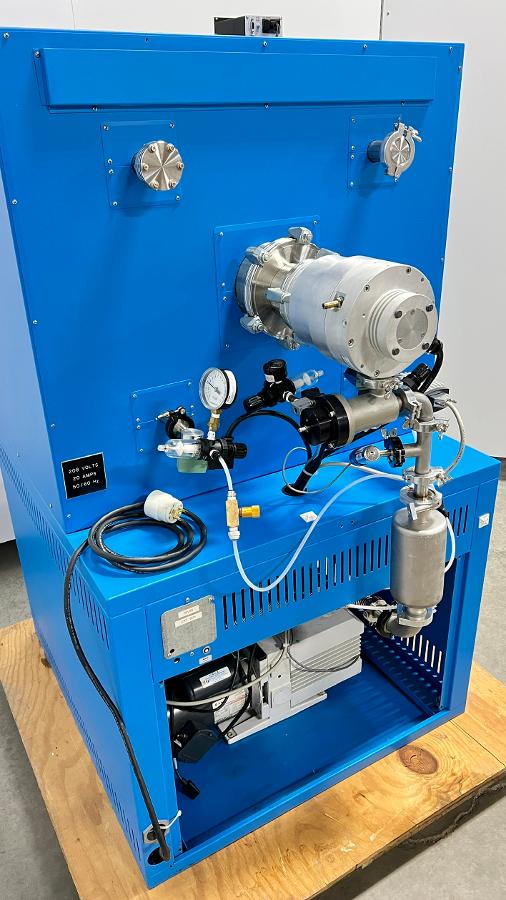

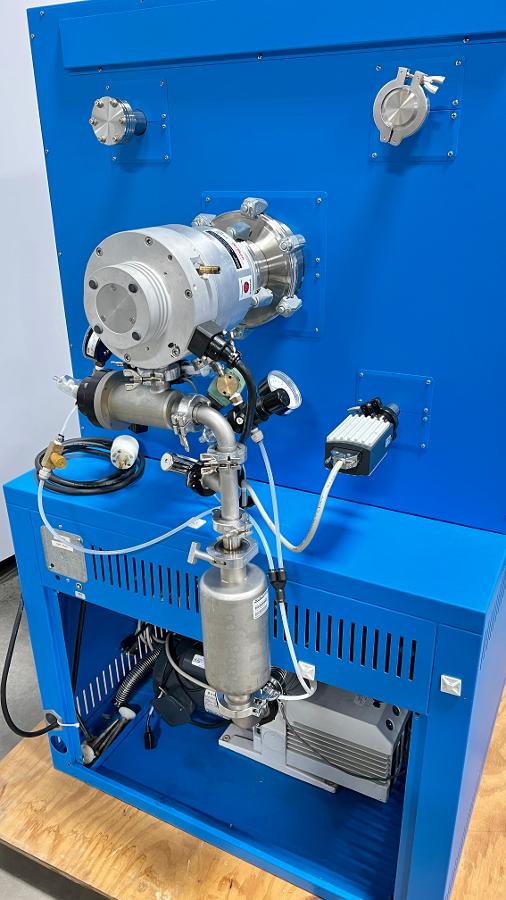

Accessories	Oerlikon Leybold Turbovac 361 Turbo Pump Oerlikon Leybold TD20 Turbo Drive Leybold Graphix One Leybold Ionivac ITR 090 Leybold D25B Mechanical Pump Terranova 908A Convectron Gauge Controller Watlow Limit SD, Over Temperature Controller
Power Requirements	208 V 20.0 A 50/60 Hz 3 Phase
Exterior Dimensions
Width	36.000 in (91.4 cm)
Depth	48.000 in (121.9 cm)
Height	62.000 in (157.5 cm)
Weight	1,132 lb (513 kg)
