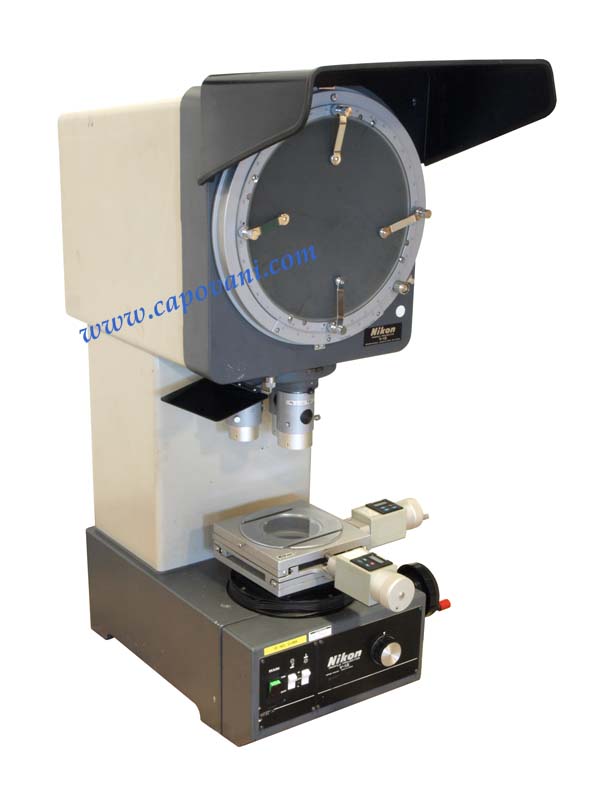

Optical Comparator

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Nikon
Model V12

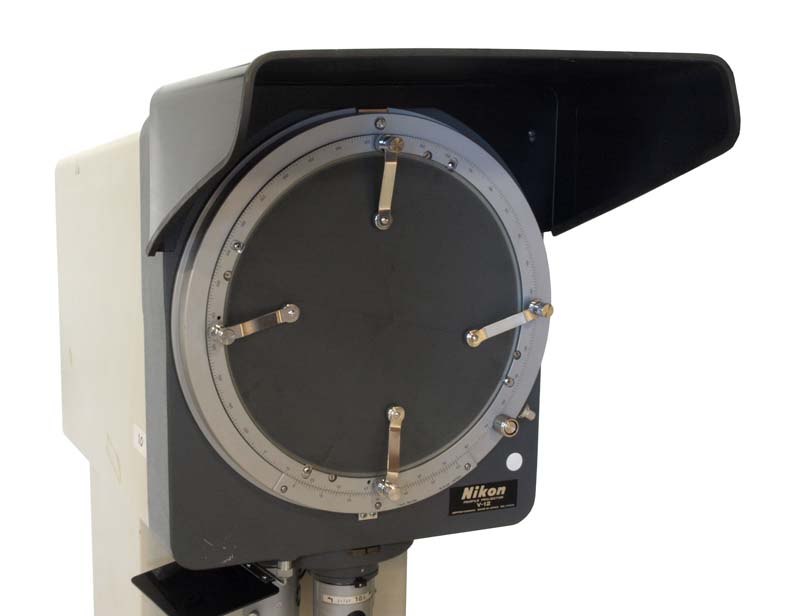

Screen Diameter 12.000  in  (30.5 cm)
Illumination Type Reflected & Transmitted
Multiple Objectives Models

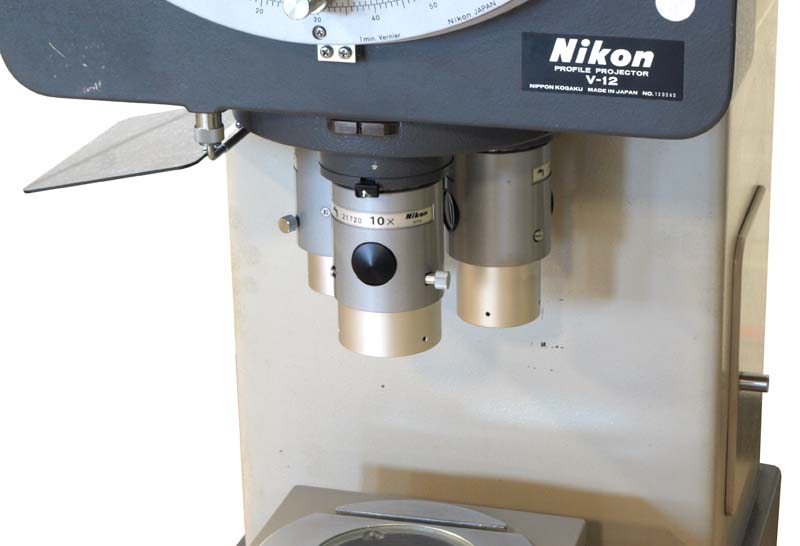

Objectves: 10X,20X,50X

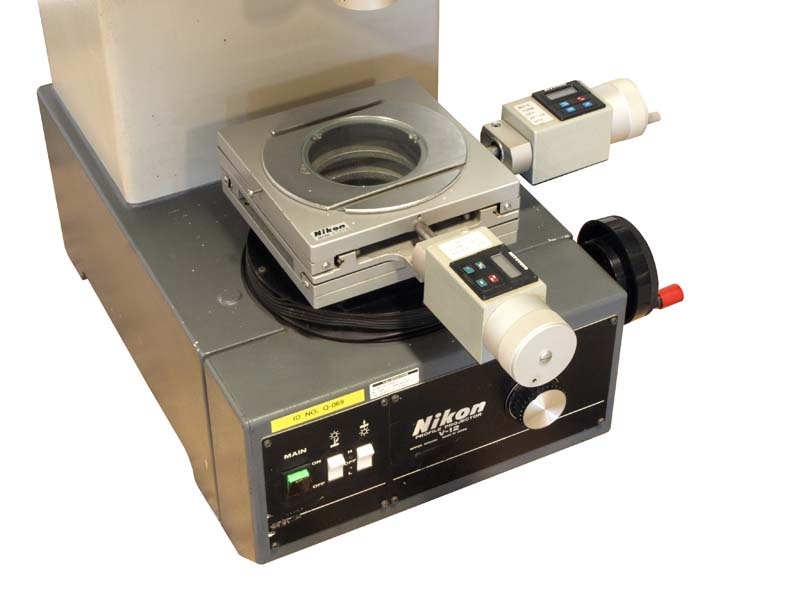

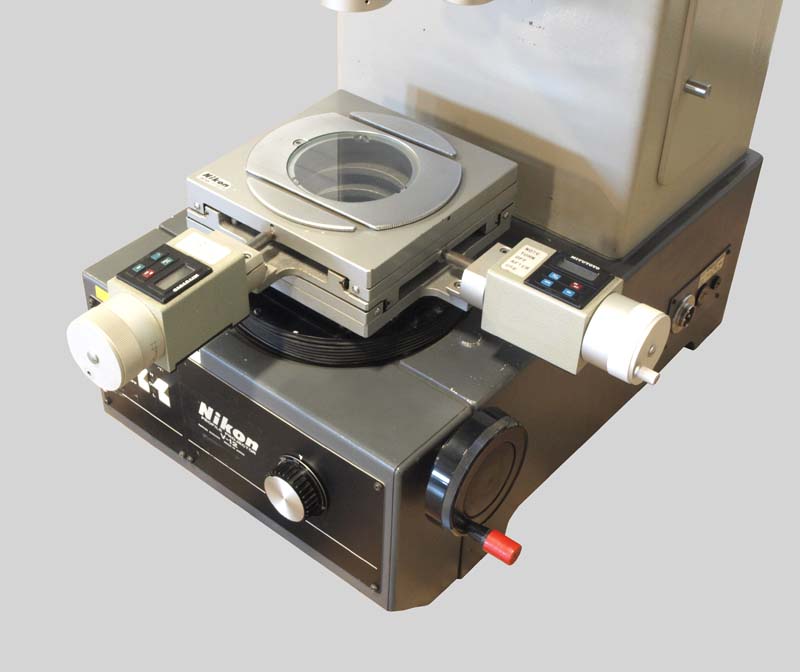

Stage Type Coaxial X-Y, Rotary
X-Y-Z Stage Travel X: 83  mm  (3.268 in)     Y : 64  mm  (2.520 in)     Z : 76  mm  (2.992 in)
Measurement System

Manual micrometers/Digital readout

Other Information

Stage glass Dia. 3.75"
Stage revolving angle: 360 Deg.
Max specimen height: 0-75mm
Lamp: 24VAC 150 Watt

Power Requirements 120/240 V     5.0 A     3.0 A(2)     50/60 Hz     1 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 32.000  in  (81.3 cm)
  Height 43.000  in  (109.2 cm)
Weight 210  lb  (95 kg)
