in Standalone Sputterers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 1973

Offered 1 Offered at Best Price

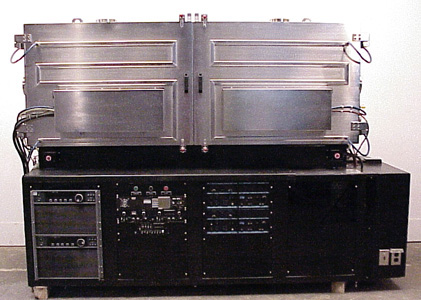

Reel Coater for Ribbon or Wire

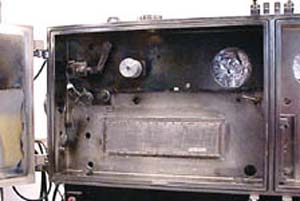

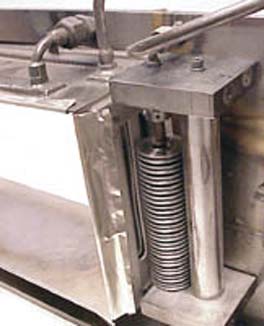

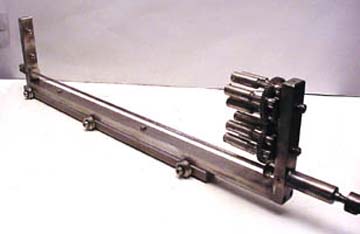

The model 412-3 is a two-chamber reel to reel web coater which deposits metal or alloys on wire or ribbon substrates by sputtering from two magnetron targets arranged in a closely spaced book array. Capacity is based upon 4" ID x 12" OD x 3" wide wire/ribbon spools. Wire diameter up to 0.035" (.9mm) may be coated at speeds ranging between 2 and 40 feet per minute depending on the coating thickness desired. Constant wire speed and tension are controlled in conjunction with other parameters which enable unattended operation for extended periods. A second chamber provides plasma pre cleaning prior to entering the sputter zone through a conductance limiting tube which allows different gas compositions and pressures for cleaning and coating.

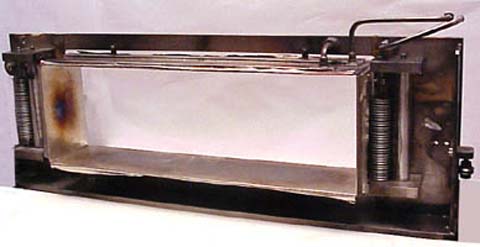

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Mill Lane Eng
Model 4123
Description Reel Sputter/Etch System

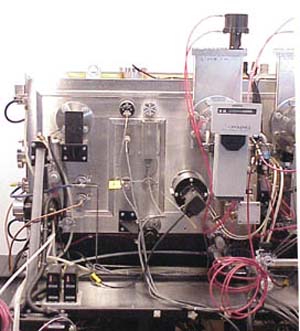

Vacuum System Cryo Pumped
Vacuum System

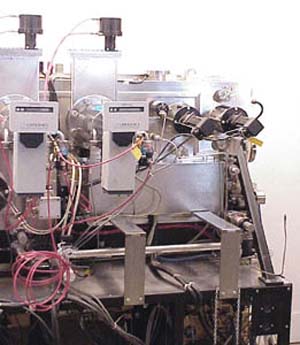

Two CTI OnBoard 8 Cryopumps
Leybold B65 roughing pump

Load Lock Included No

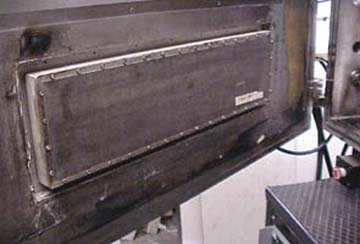

Target Size 6" x 24"
Quantity of DC Cathodes 2

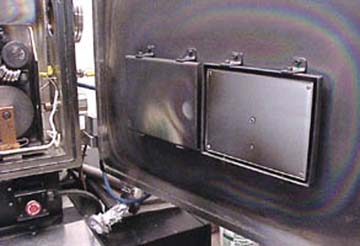

Number of RF Etch Cathodes 2
Gas Inputs Three
Gas Input Control Mass Flow Controllers
Substrate Heaters No
Residual Gas Analyzer No
DC Power Supply
  Manufacturer Advanced Energy (2 included)
  Model MDX 30K
  Output Power 30.00 kW DC
RF Generator
  Manufacturer Advanced Energy
  Model RFX-1250
  Rated Power Output 1250 Watts
  Frequency Advanced Energy
  Matching Network Yes

Advanced Energy ATX-1250 matching network
Advanced Energy ATX-CP control panel
Two MKS type 120A pressure transducers
Two MKS type 270 display units
MKS type 248A upstream pressure control valve
MKS type 250C pressure/flow controller
MKS type 247C four channel mas flow controller
Three MKS type 2159B mass flow control controllers
Granville Phillips type 302 ionization gauge controller with TC and process control modules

Year of Manufacture 1995
Condition Excellent
