Item ID: 32264

**1 Offered at Best Price**

VARIAN 3190 SPUTTER SYSTEM

Load locked single wafer sputter, cassette to cassette vertically mounted for sideways sputter

Currently configured for 100mm wafers

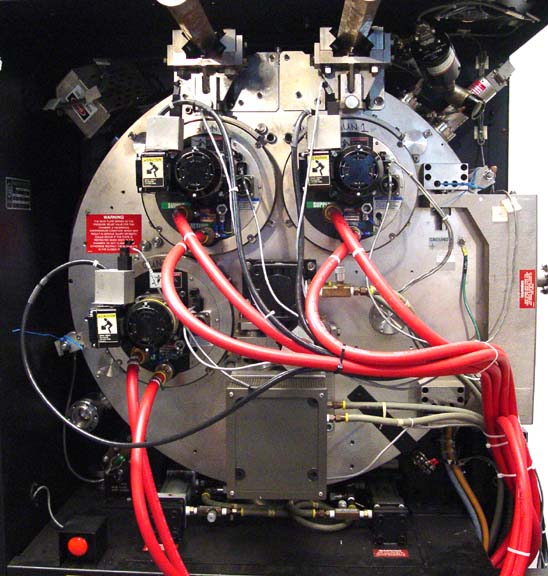

3 Target mini-quantums
RF Etch
VIPS (Vacuum Isolated Processing Station)
Residual Gas Analyzer

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Varian
Model	3190
Description	Single Wafer Vertical Sputter System
Vacuum System	Cryo Pumped
Load Lock Included	Yes
Number of RF Etch Cathodes	1
Substrate Heaters	Yes
Residual Gas Analyzer	Yes

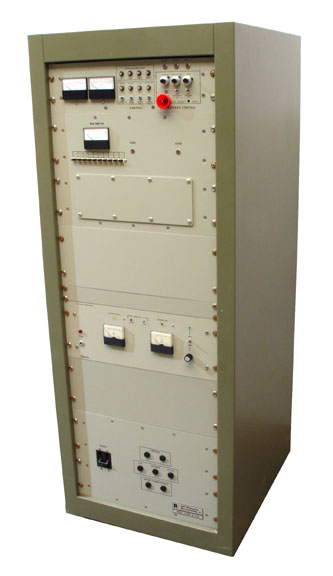

DC Power Supply
Output Power	12.00 kW DC
RF Generator
Rated Power Output	1000 Watts
Matching Network	Yes
Power Requirements	480 V 22.0 A 60 Hz 3 Phase
