Unpatterned Wafer Inspection

Unpatterned wafer inspection tools are essential for detecting surface defects and ensuring the quality of semiconductor wafers. These instruments offer precision surface analysis with features such as HeNe laser technology at 632.8 nm wavelength and automated cassette handling for versatile wafer sizes.

  1. Tencor Surfscan 4500

    Unpatterned Wafer Inspection

    Tencor Surfscan 4500

    TENCOR Surfscan 4500 Unpatterned Wafer Surface Inspection Tool

    • Cassette to Cassette Handling of 3” – 6” Wafers
    • New HeNe 2mW Laser, 632.8 nm Wavelength
    • New HeNe Laser Power Supply
    • 2 µ Particle Size Sensitivity
    • Automatic Calibration
    • Flatscreen Monitor
    • System Calibrated & Demonstrated
    • Calibration Standard Wafer Included
  2. Takano WM-7S Unpatterned Wafer Surface Inspection Tool

    Unpatterned Wafer Inspection

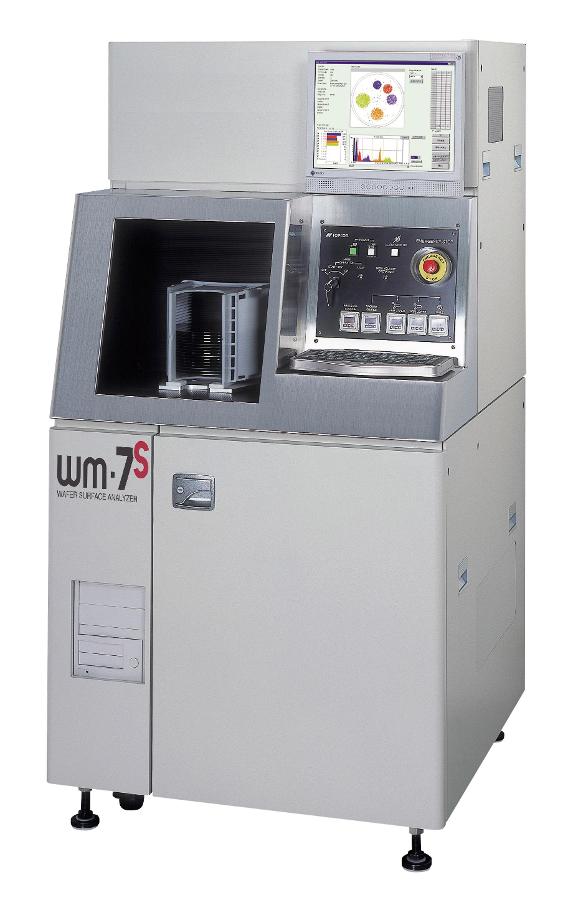

    Takano WM-7S Unpatterned Wafer Surface Inspection Tool

    Takano WM-7S Unpatterned Wafer Surface Inspection Tool

    • 405 nm Laser Source
    • Particle Detection Down to 79 nm
    • Configured for 200mm Wafers
    • Manufactured in 2023
    • Unused Since Installation/Qualification
  3. KLA-TENCOR Puma 9130 Darkfield Inspection Tool

    Unpatterned Wafer Inspection

    KLA-TENCOR Puma 9130 Darkfield Inspection Tool

    KLA-TENCOR Puma 9130 Darkfield Inspection Tool

    • Parts Tool
    • Please Inquire for Additional Details
  4. KLA-TENCOR Puma 9120 IS Darkfield Inspection Tool

    Unpatterned Wafer Inspection

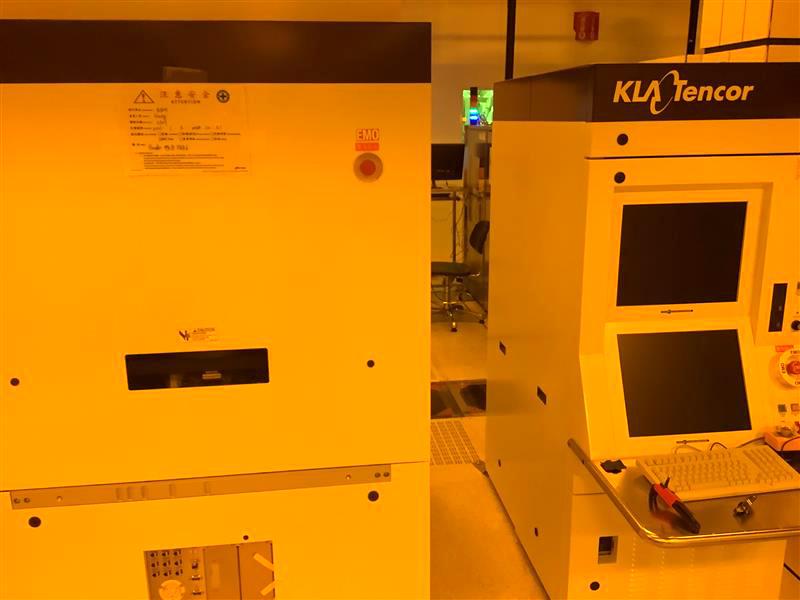

    KLA-TENCOR Puma 9120 IS Darkfield Inspection Tool

    KLA-TENCOR Puma 9120 IS Darkfield Inspection Tool

    • For 200mm or 300mm Wafers
    • 2ea Cameras
    • Please Inquire for Additional Details

Common Applications

Semiconductor manufacturing

Quality control

Surface defect analysis

Wafer processing

Semiconductor research

Buying Guide

Unpatterned Wafer Inspection Buying Guide

When selecting unpatterned wafer inspection tools, consider your specific quality control requirements and the types of wafers you need to inspect. Pay attention to the technological capabilities and specifications provided by each tool to ensure it meets your precision needs.

Assess whether the inspection equipment supports your desired wafer sizes and offers suitable automation features to integrate smoothly into your production line. It's crucial to verify the resolution and sensitivity of the tools, particularly if your application demands high-level defect detection.

  • Confirm the laser technology used, such as the HeNe laser at 632.8 nm wavelength, for reliable surface analysis.
  • Ensure the tool accommodates your wafer sizes, ranging from 3" to 6" and possibly larger.
  • Evaluate automation capabilities, like cassette-to-cassette handling, to enhance operational efficiency.
  • Check for calibration standards and traceability to maintain measurement accuracy and reliability.

Frequently Asked Questions

What types of wafers can be inspected with these tools?
These tools are capable of inspecting 3" to 6" unpatterned wafers and can handle various sizes depending on the model.
What kind of laser technology is used in these inspection tools?
Unpatterned wafer inspection tools often utilize HeNe laser technology operating at a wavelength of 632.8 nm for precise surface analysis.
How does darkfield inspection differ from surface flatness analysis?
Darkfield inspection focuses on detecting scattered light from defects, enhancing detection sensitivity, while surface flatness analysis measures the wafer’s evenness.
Are these wafer inspection tools suitable for semiconductor manufacturing?
Yes, these tools are designed for semiconductor manufacturing processes, offering capabilities for accurate defect detection and process quality control.
